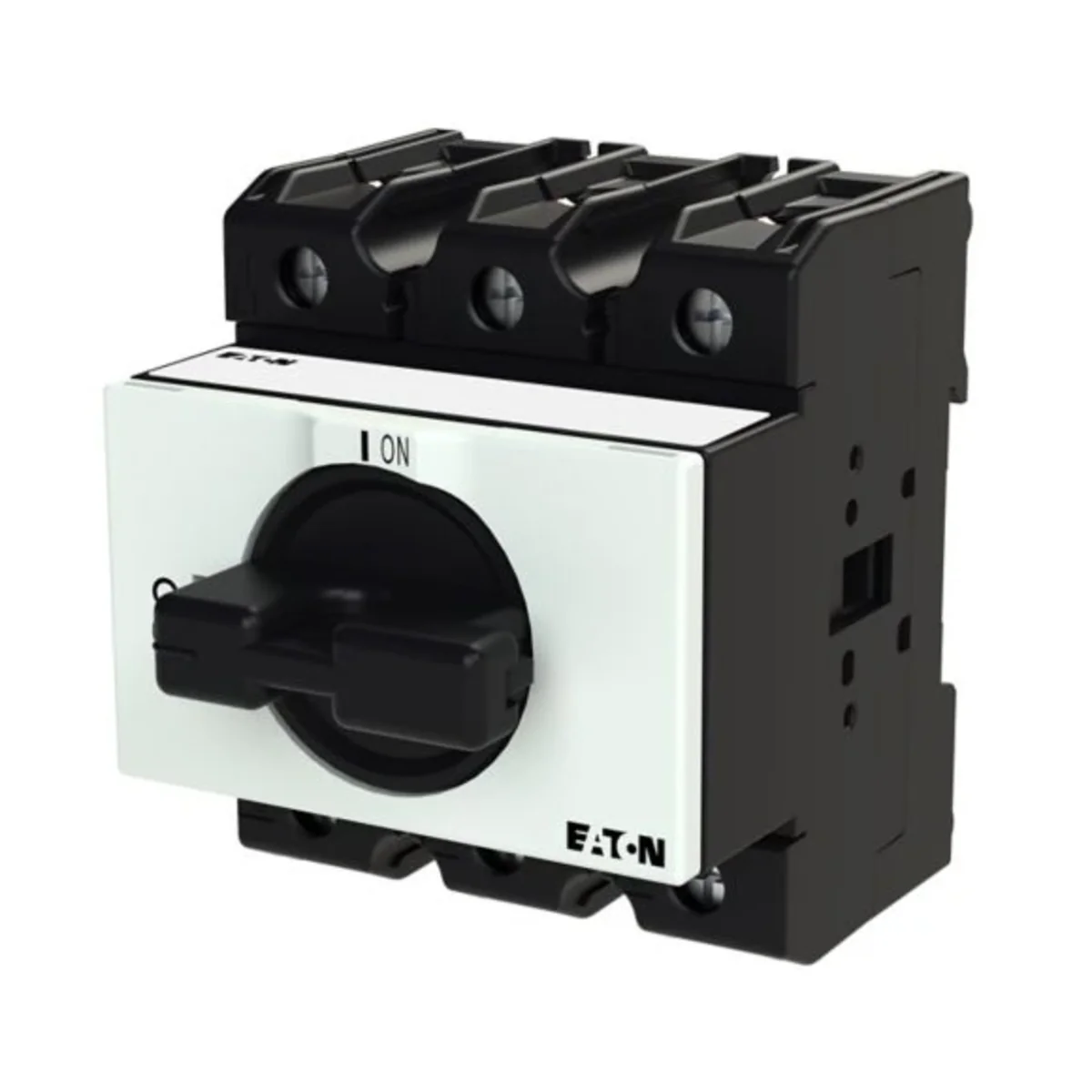

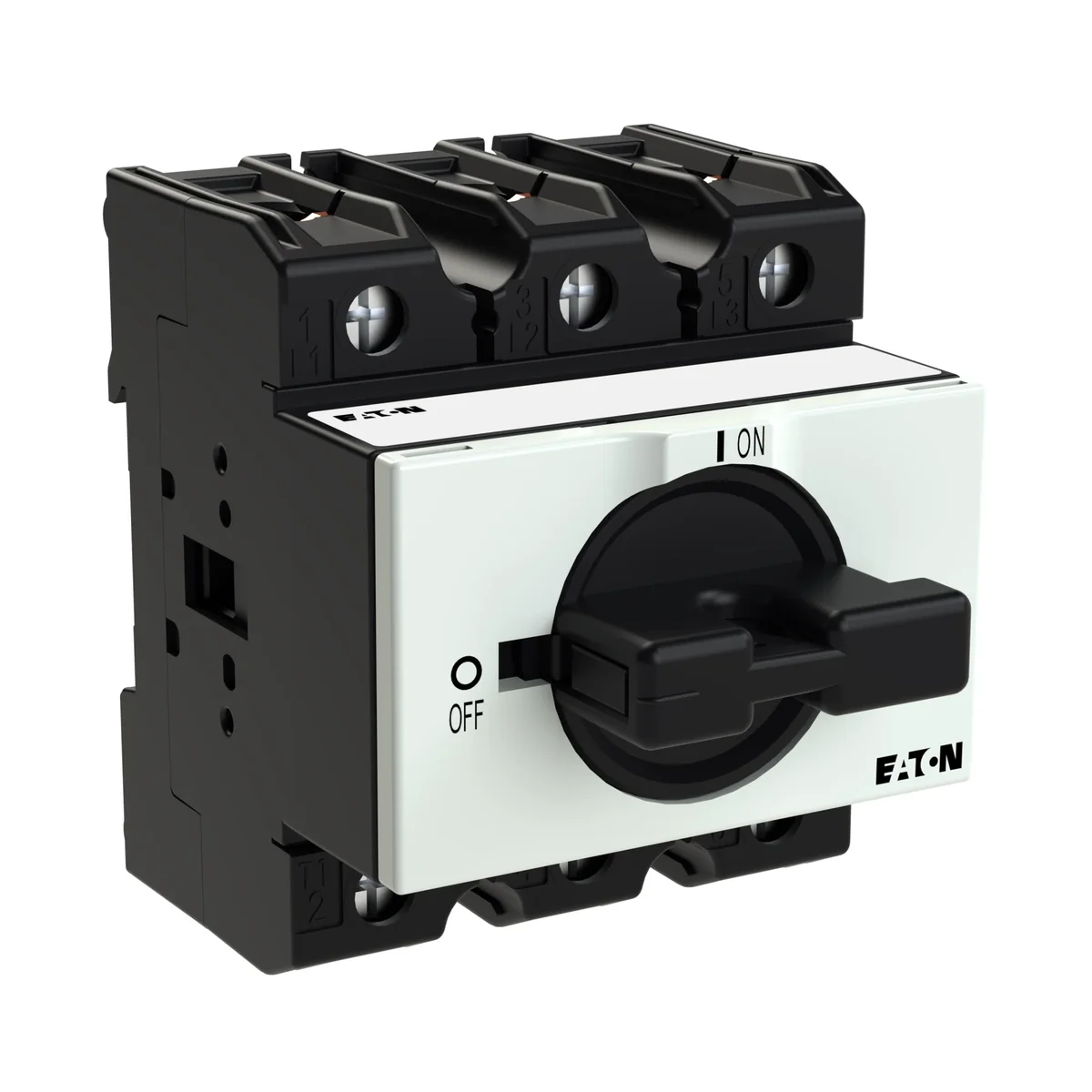

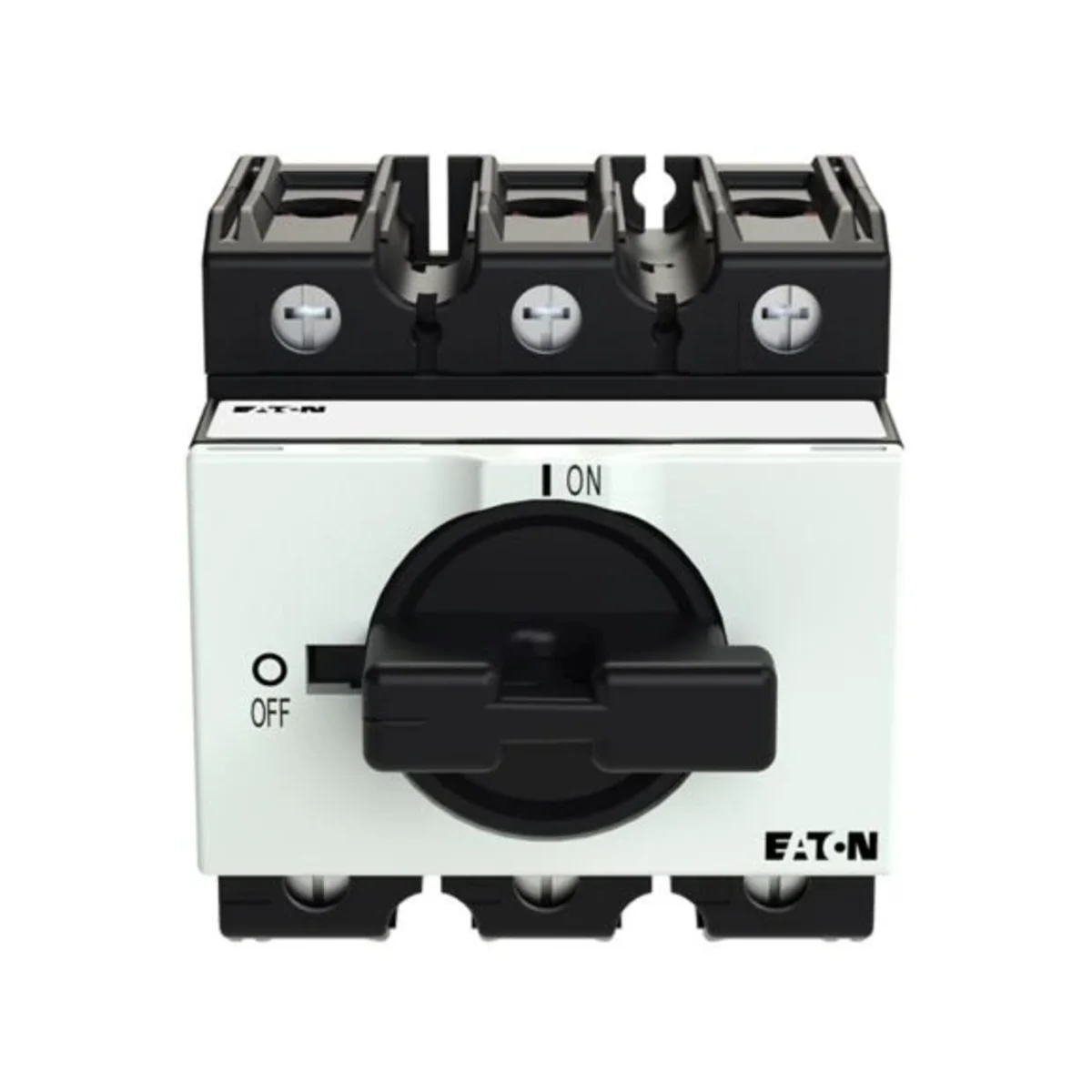

Switch, 100A, P3-100/IVS 081439

local index:
ALK150MOEL
Catalog No:
081439
EAN code:
4015080814399
Manufacturer: EATON
Power [kW]: 50
Main circuits: 3z
Rated current [A]: 100
Price:
140,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

On/Off switch In=100A P=50kW. Without auxiliary circuits. With black knob and faceplate

Technical data

  • Power [kW]
    50
  • Rated current [A]
    100
  • Main circuits
    3z

Other technical data

  • Version as main switch
    No
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    100 A
  • Rated permanent current at AC-21, 400 V
    100 A
  • Rated short-time withstand current lcw
    2 kA
  • Switching power at 400 V
    55 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    No
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Short thumb-grip
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    100 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-23, 400 V
    55 kW
  • Conditioned rated short-circuit current Iq
    80 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP30

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,337
Volume (m3) 0,001
Width (m) 0,105
Length (m) 0,120
Depth (m) 0,095
