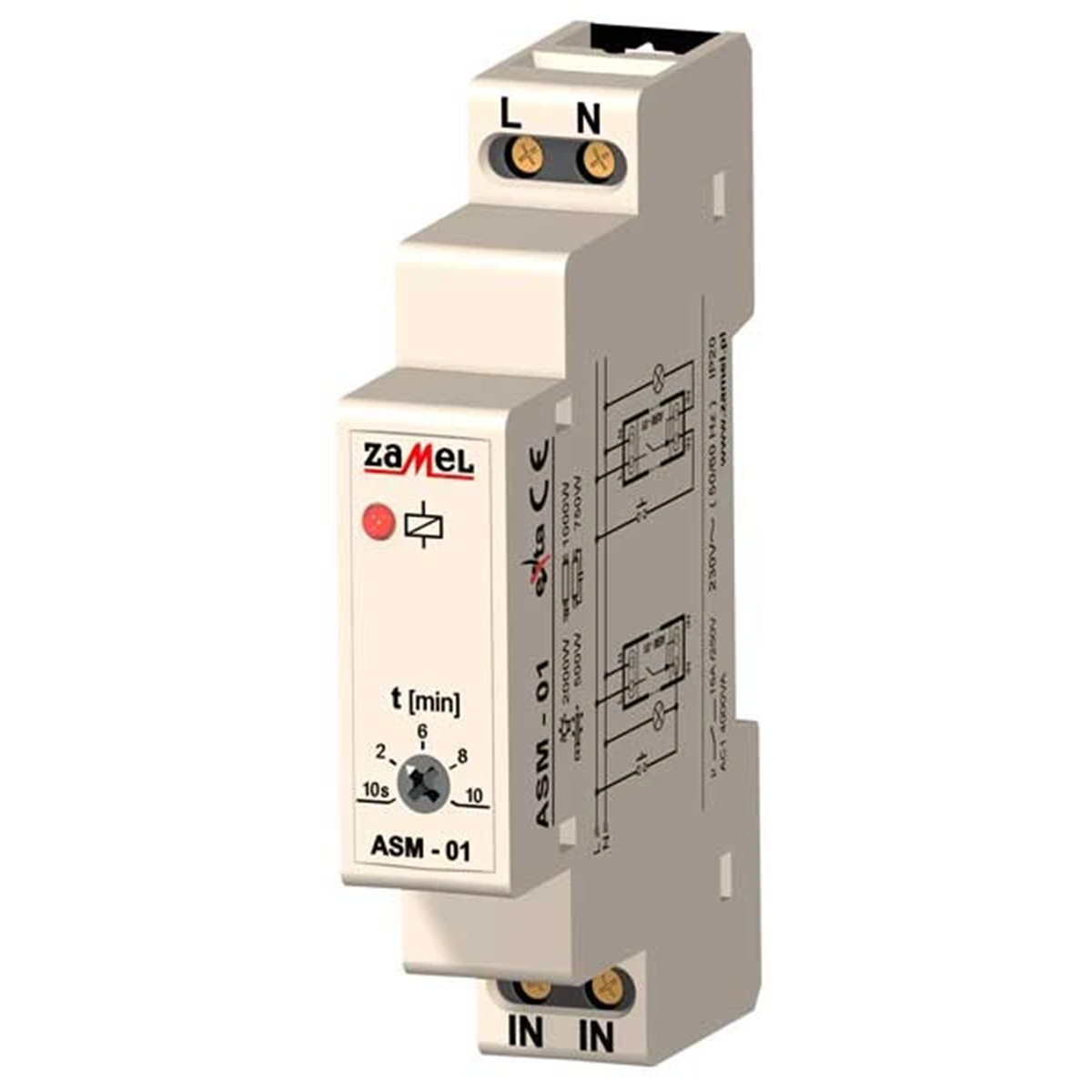

Staircase automatic switch 230V AC TYPE: ASM-01 EXT10000004

local index:
APC007ZAME
Catalog No:
EXT10000004
EAN code:
5903669121121
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
18,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The ASM-01 staircase automatic switch is used to control lighting in corridors or staircases. After the system is triggered, it turns on the lighting for the time set by the user, followed by automatic shutdown. The working time can be smoothly adjusted in the range from 10 s to 10 minutes using the potentiometer located on the front panel of the machine. The ASM-01 staircase automatic switch can also be used as a time relay with a delayed switch-off function.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Contact
    1NO
  • Type
    Automata
  • PKWIU
    27.12.40.0
