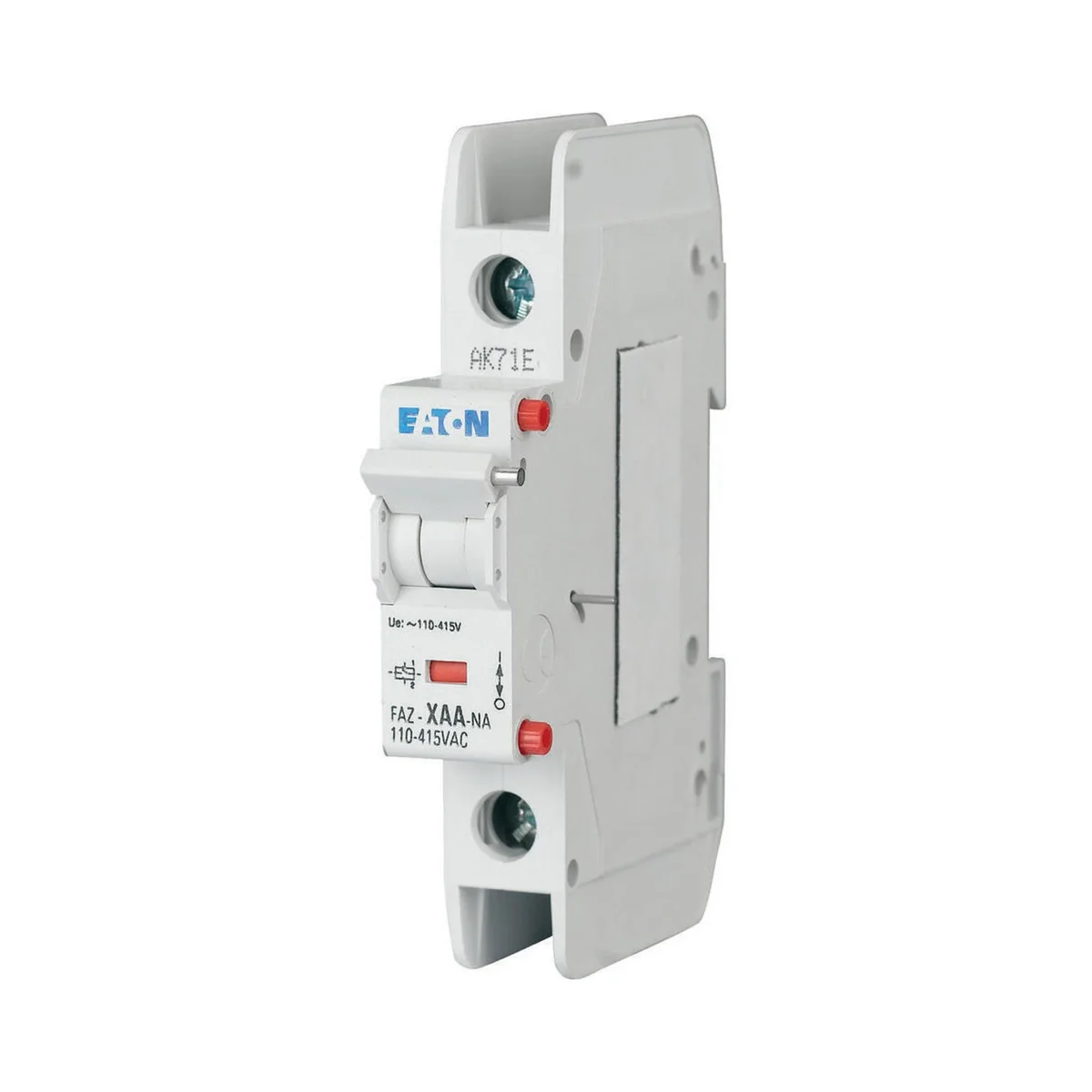

Name: Shunt trip, up to 40A, 110-415V, 1JC
Brand: EATON
SKU: ALA309MOEL
Price: 38.83 PLN

Shunt release, for circuit breakers max 40A, voltage ranges 110-415V AC / 110-230V DC, plug mounting dimensions 45mm, mounting width 1JC (17.5mm), circuit breaker, terminal size AWG 18-10

PKWIU

31.20.24-50.21

Other technical data

Device fitting

Miniature circuit breaker (MCB)
Montowane fabrycznie

No
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Rated switch current

0 A
Voltage type for actuating

AC/DC
Suitable for max. number of poles main contact unit (total)

1

Rodzaj wyposażenia dodatkowego

Shunt release (for power circuit breaker)
Width in number of modular spacings

1
Number of contacts as normally closed contact

1
Number of fault-signal switches

0
Rated voltage

415 V
With auto test for earth leakage function

No
Suitable for max. current main contact unit

0 A

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	40 pcs.
Weight (kg)	0,237	4,960
Volume (m3)	0,000	0,016
Width (m)	0,037	0,180
Length (m)	0,107	0,380
Depth (m)	0,076	0,230
