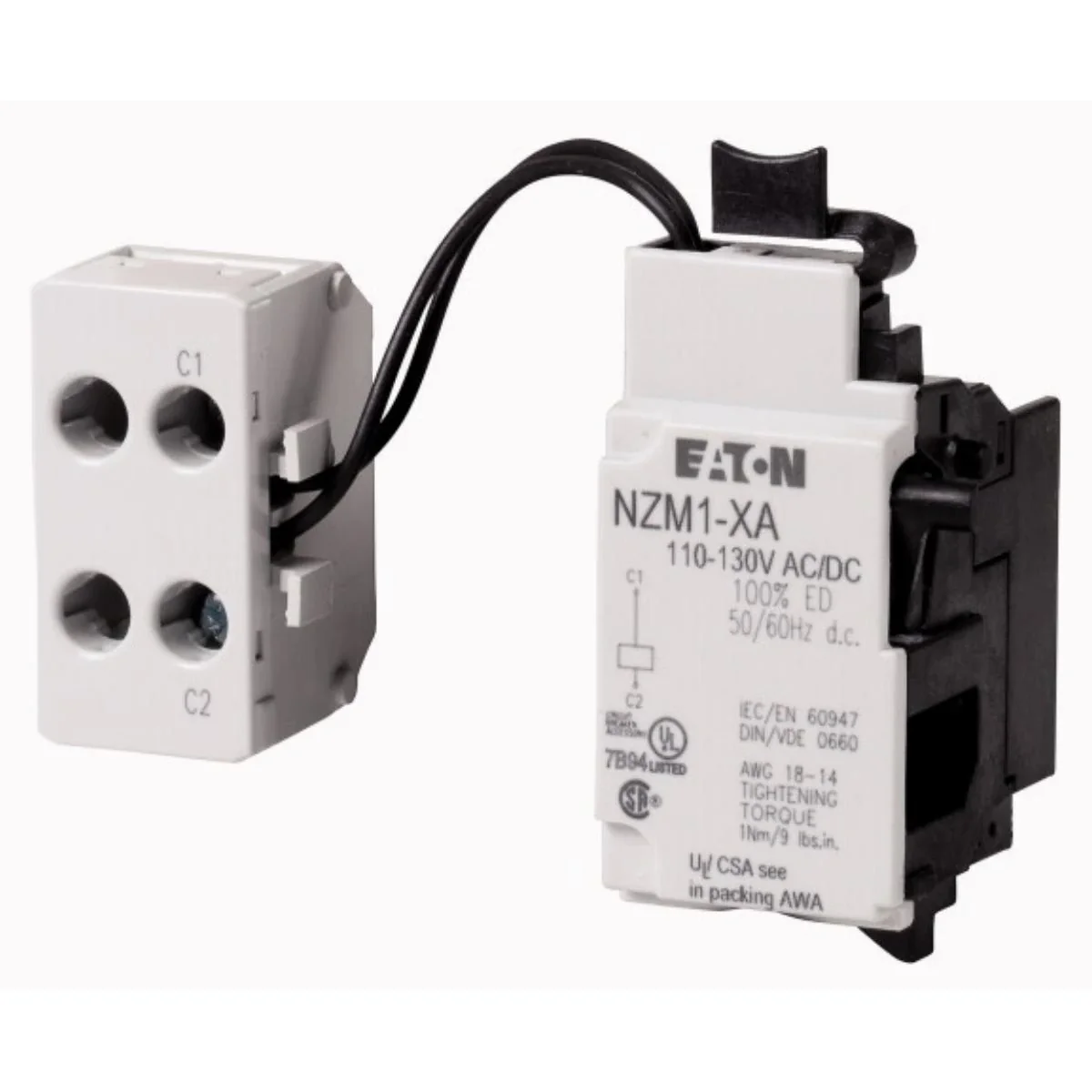

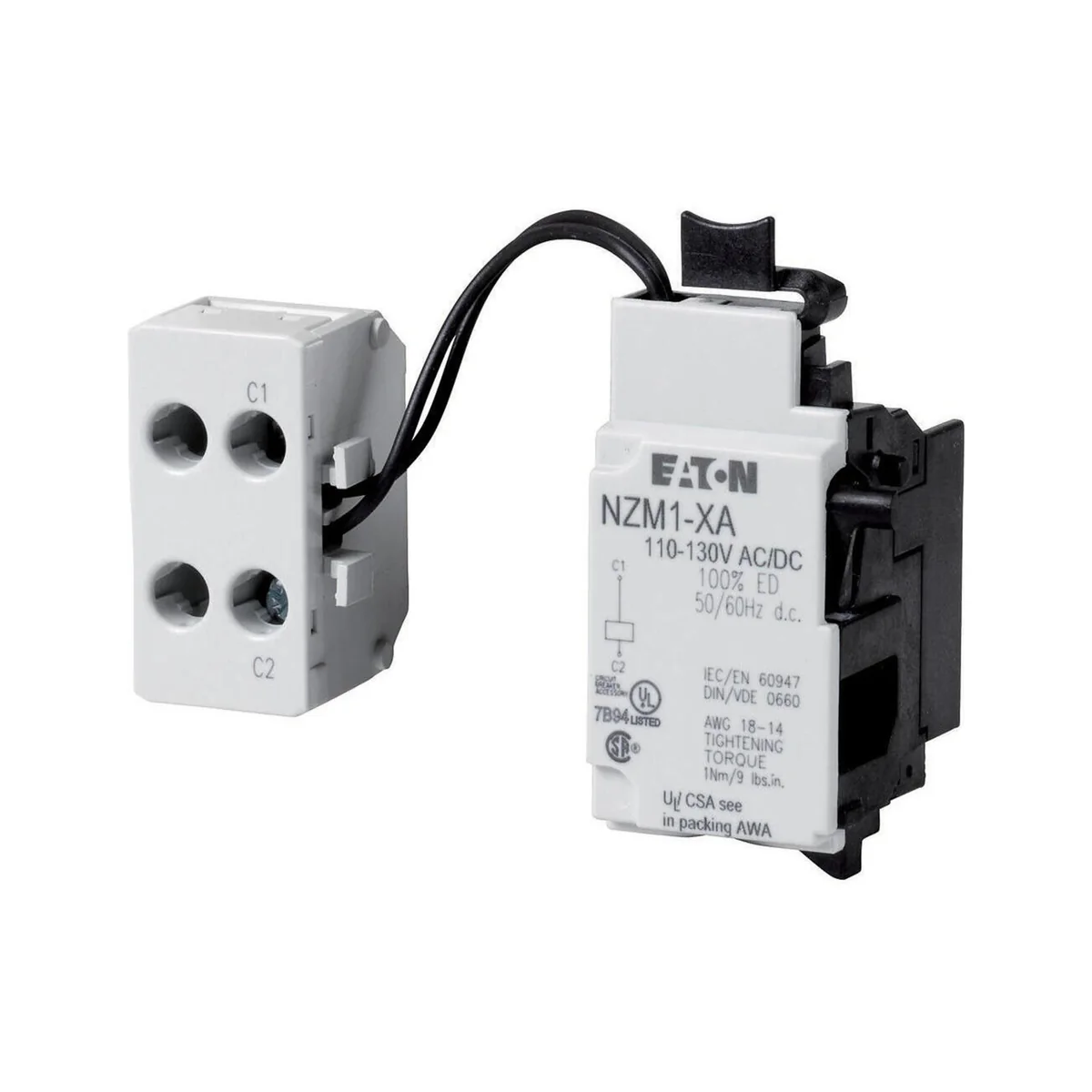

Shunt release with terminal block, NZM1-XA208-250AC/DC 259726

local index:
ALA129MOEL
Catalog No:
259726
EAN code:
4015082597269
Manufacturer: EATON
Control voltage [V]: 230
Price:
64,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 5 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

They trip the circuit breaker after giving a pulse signal or after applying a continuous voltage.

Technical data

  • Control voltage [V]
    230

Other technical data

  • Rated control supply voltage AC 50 Hz
    208 ... 250 V
  • Rated control supply voltage DC
    208 ... 250 V
  • Initial value of the undelayed short-circuit release - setting range
    0 A
  • Type of electric connection
    Screw connection
  • Number of contacts as normally closed contact
    0
  • Suitable for power circuit breaker
    No
  • Suitable for motor safety switch
    No
  • Rated control supply voltage AC 60 Hz
    208 ... 250 V
  • Voltage type for actuating
    AC
  • End value adjustment range undelayed short-circuit release
    0 A
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,077
Volume (m3) 0,000
Width (m) 0,032
Length (m) 0,037
Depth (m) 0,066
