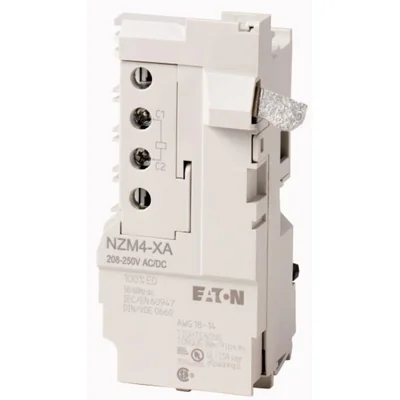

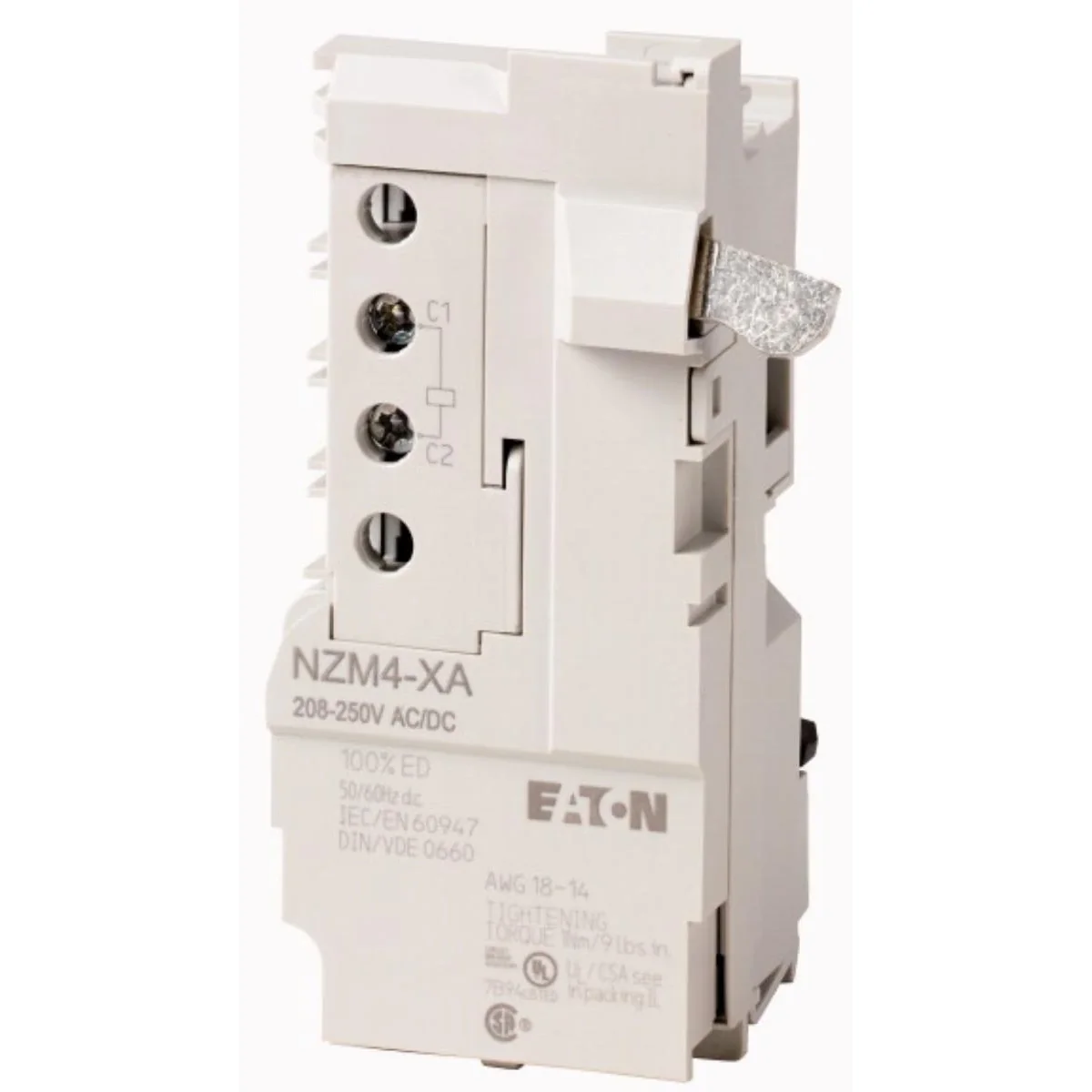

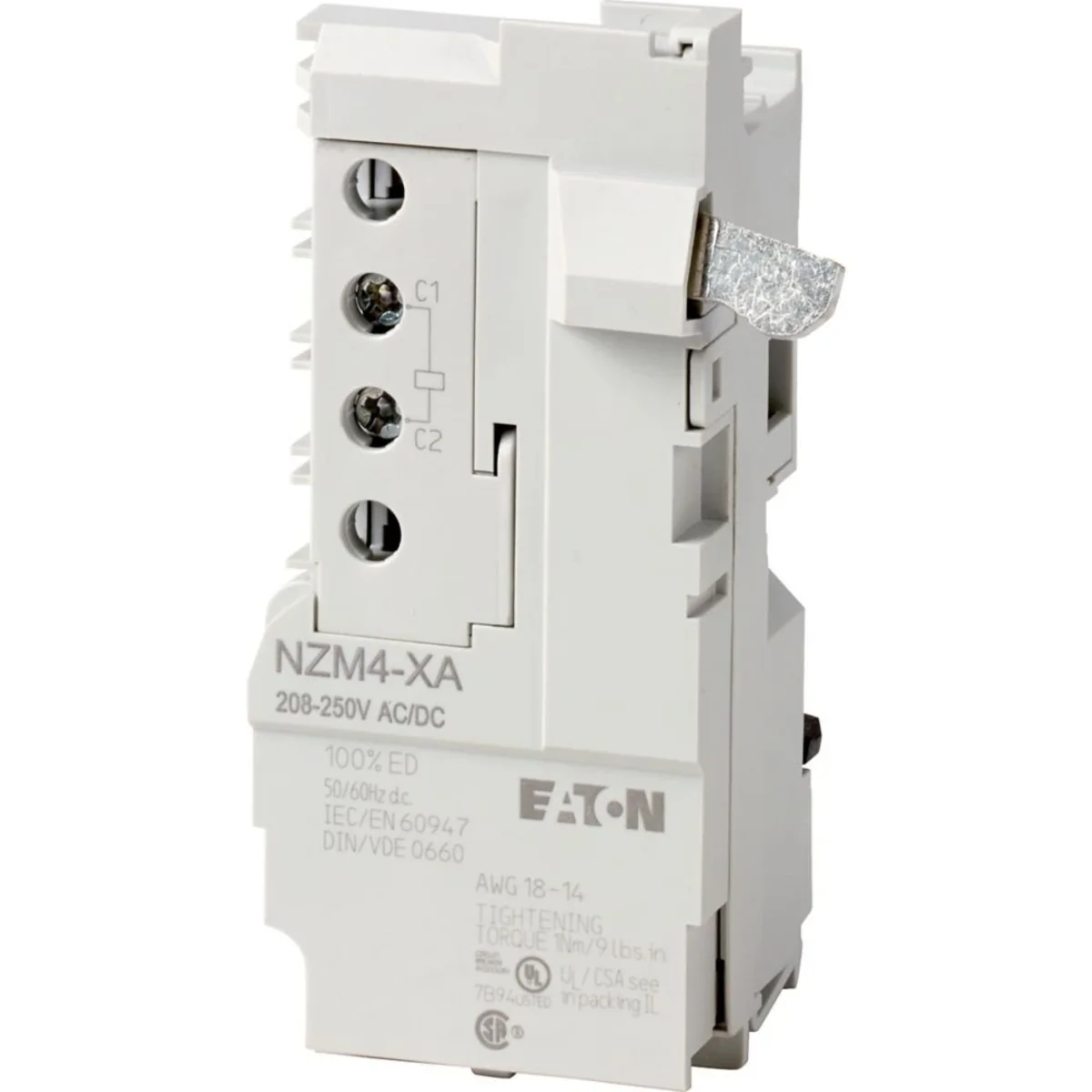

Shunt release, NZM4-XA208-250AC/DC 266451
local index:
ALA048MOEL
Catalog number:
266451
EAN code:
4015082664510
Manufacturer:
EATON
Control voltage [V]: 230
Price:
562,98 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Ramp Trigger
Technical data
-
Control voltage [V]230
Other technical data
-
Rated control supply voltage AC 50 Hz208 ... 250 V
-
Rated control supply voltage DC208 ... 250 V
-
Initial value of the undelayed short-circuit release - setting range0 A
-
Type of electric connectionScrew connection
-
Number of contacts as normally closed contact0
-
Suitable for power circuit breakerNo
-
Suitable for motor safety switchNo
-
Rated control supply voltage AC 60 Hz208 ... 250 V
-
Voltage type for actuatingAC
-
End value adjustment range undelayed short-circuit release0 A
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
Suitable for off-load switchYes
-
Suitable for overload relayNo
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Skrzynia | Karton |
| Quantity | 1 pcs. | 1 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,256 | 0,267 | 0,256 | 0,267 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,000 |
| Width (m) | 0,066 | 0,064 | 0,066 | 0,064 |
| Length (m) | 0,109 | 0,107 | 0,109 | 0,107 |
| Depth (m) | 0,053 | 0,051 | 0,053 | 0,051 |
