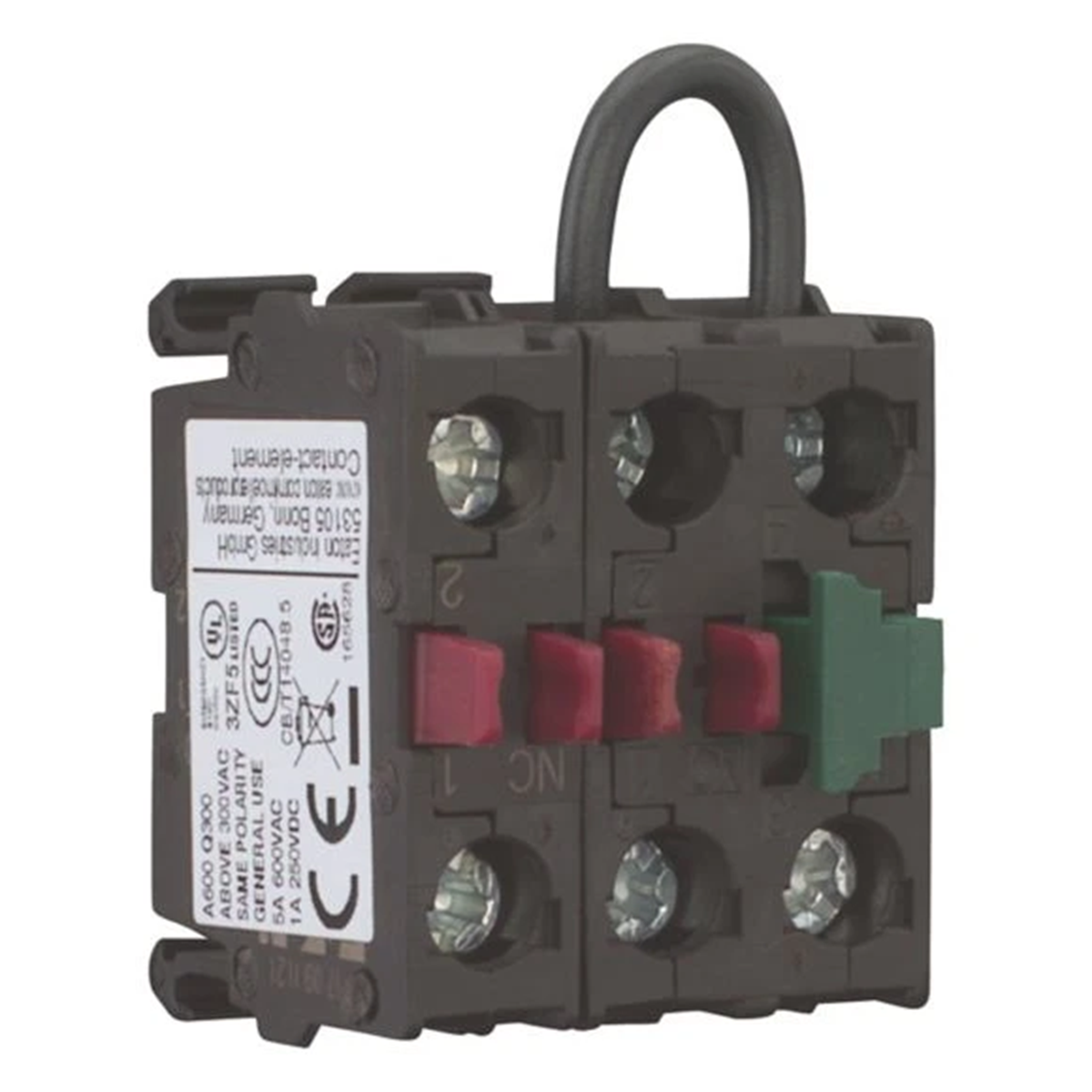

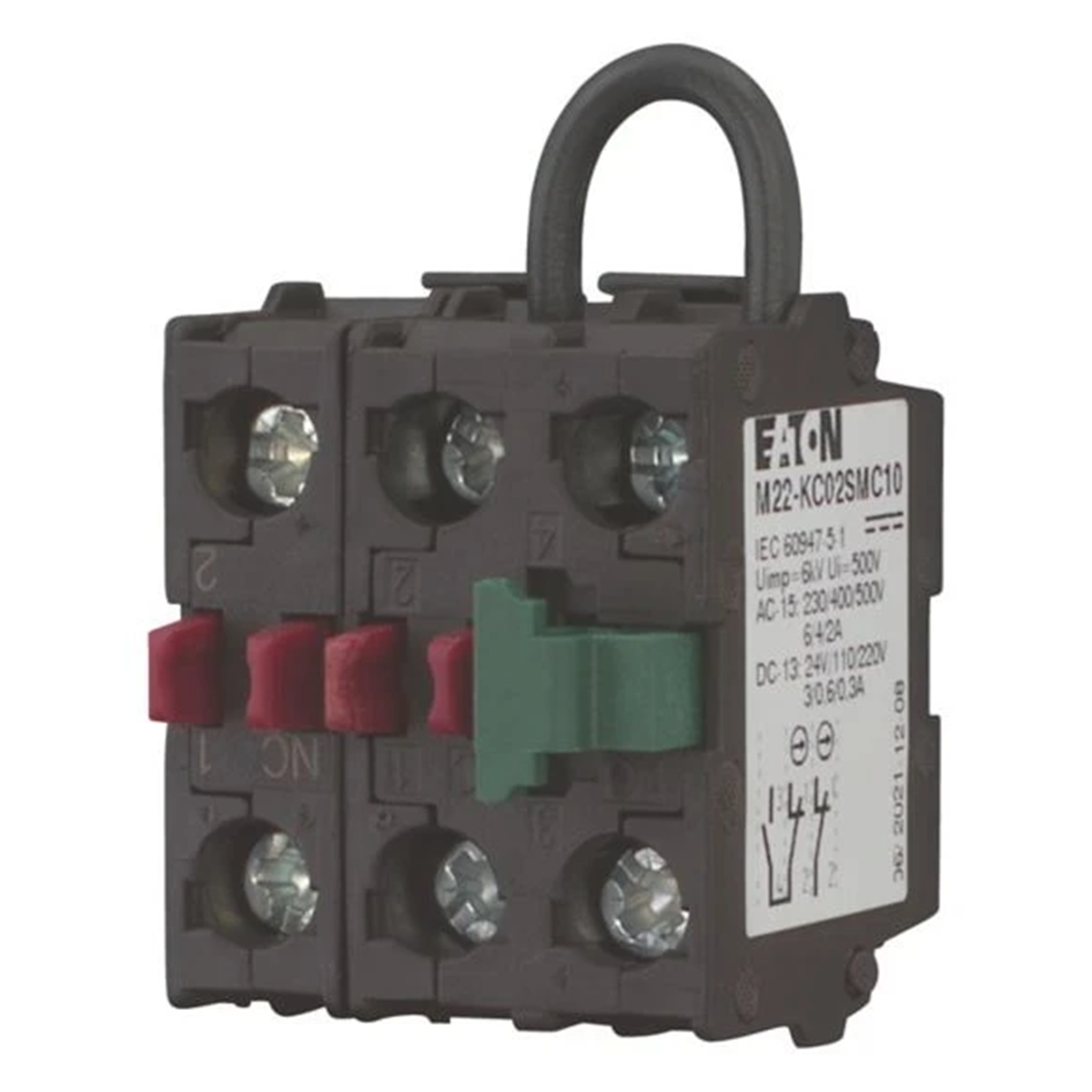

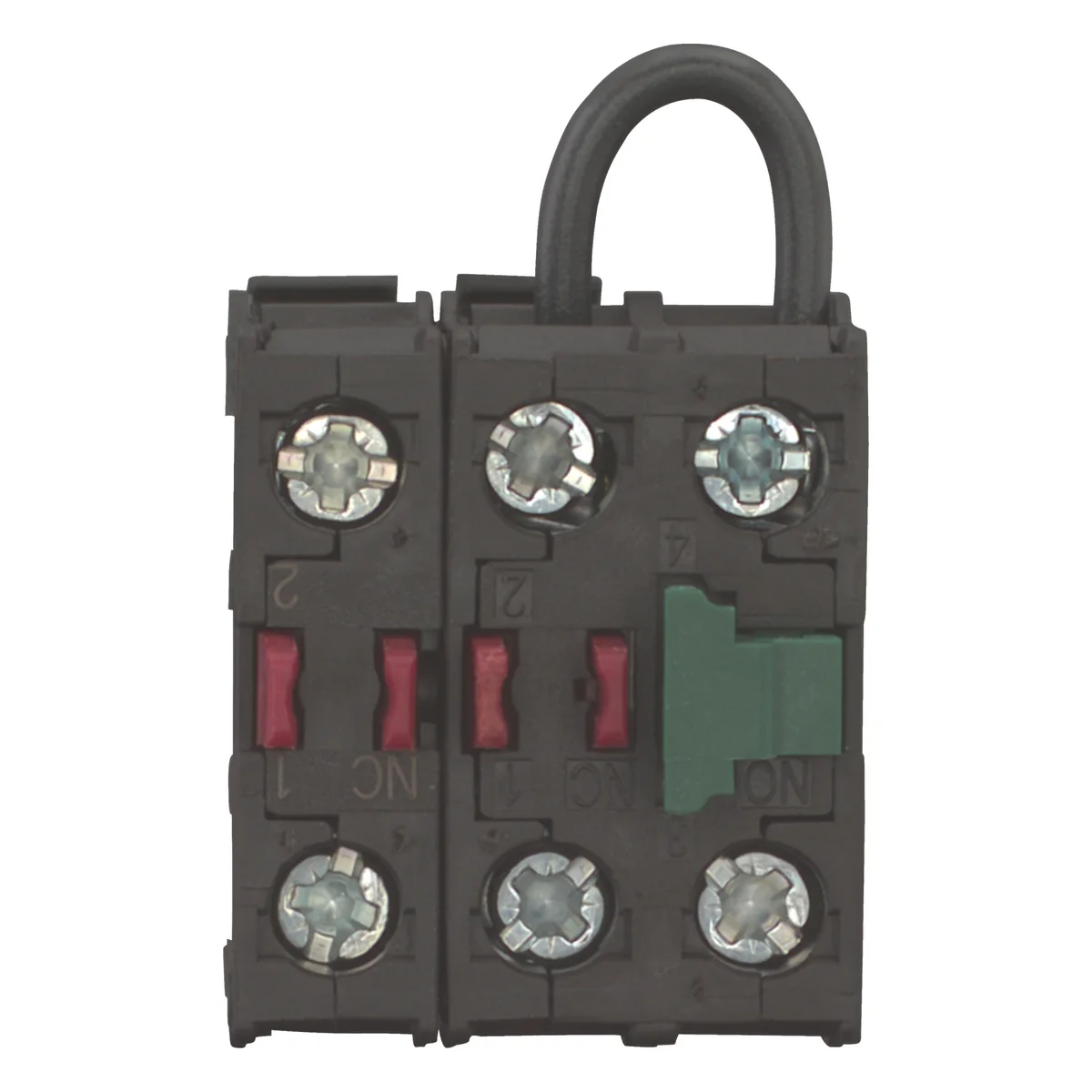

Self-monitoring contact element 1NO 2R fixed to the rear panel 121720

local index:
ALA419MOEL
Catalog No:
121720
EAN code:
4015081195305
Manufacturer: EATON
Installation: Fixing to the rear wall
How to connect: screw terminals
Price:
29,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

The normally open contact is actuated by pressing a button when mounted. Contact configuration Z = NO contact: 1 C, Contact configuration R = NC contacts: 2 R, Contact configuration.

Technical data

  • Installation
    Fixing to the rear wall
  • How to connect
    screw terminals

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    2
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Model
    Clip-on
  • Lamp holder
    None
  • Number of contacts as normally open contact
    1
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Floor fastening

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,033 0,167
Volume (m3) 0,000 0,000
Width (m) 0,034 0,068
Length (m) 0,040 0,075
Depth (m) 0,032 0,065
