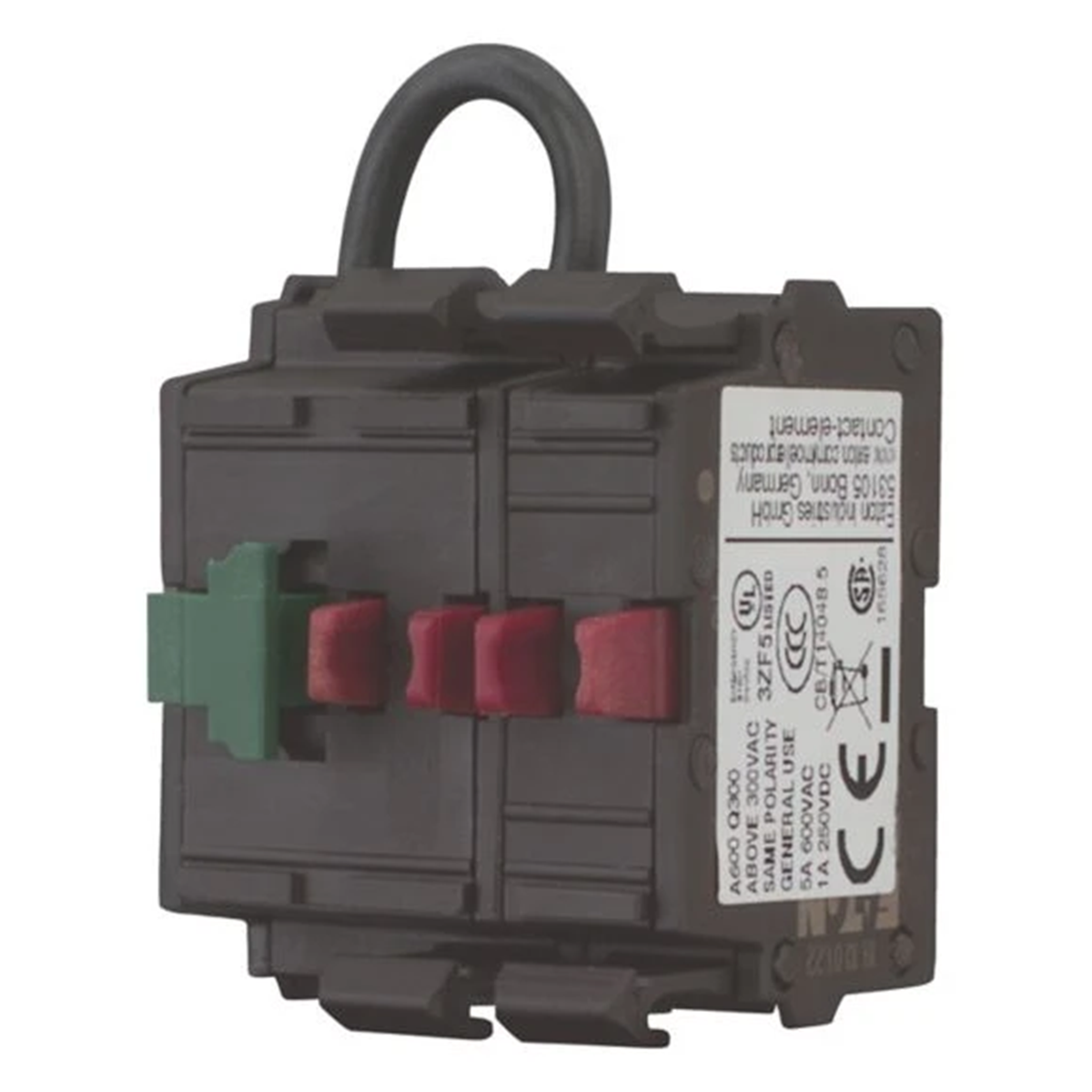

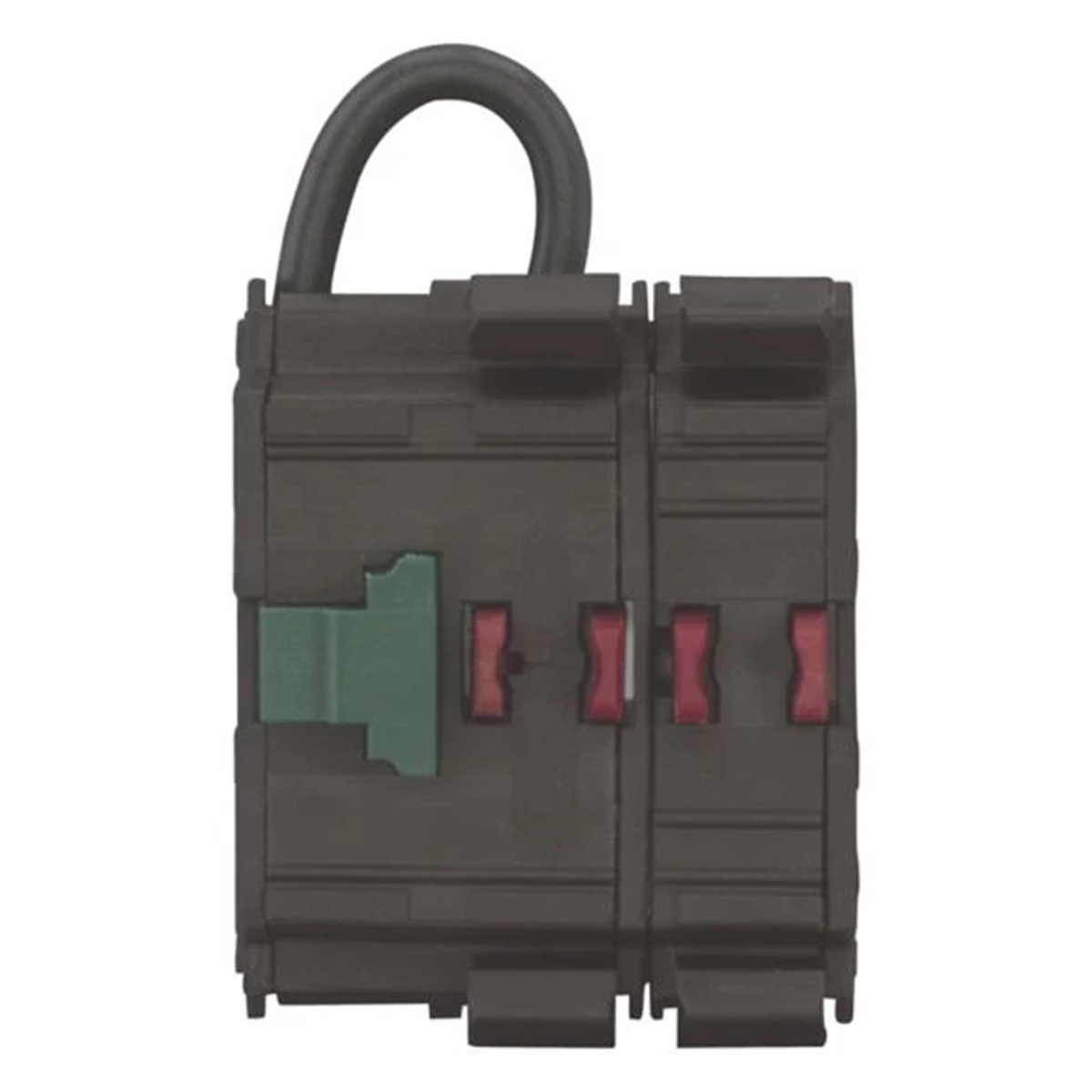

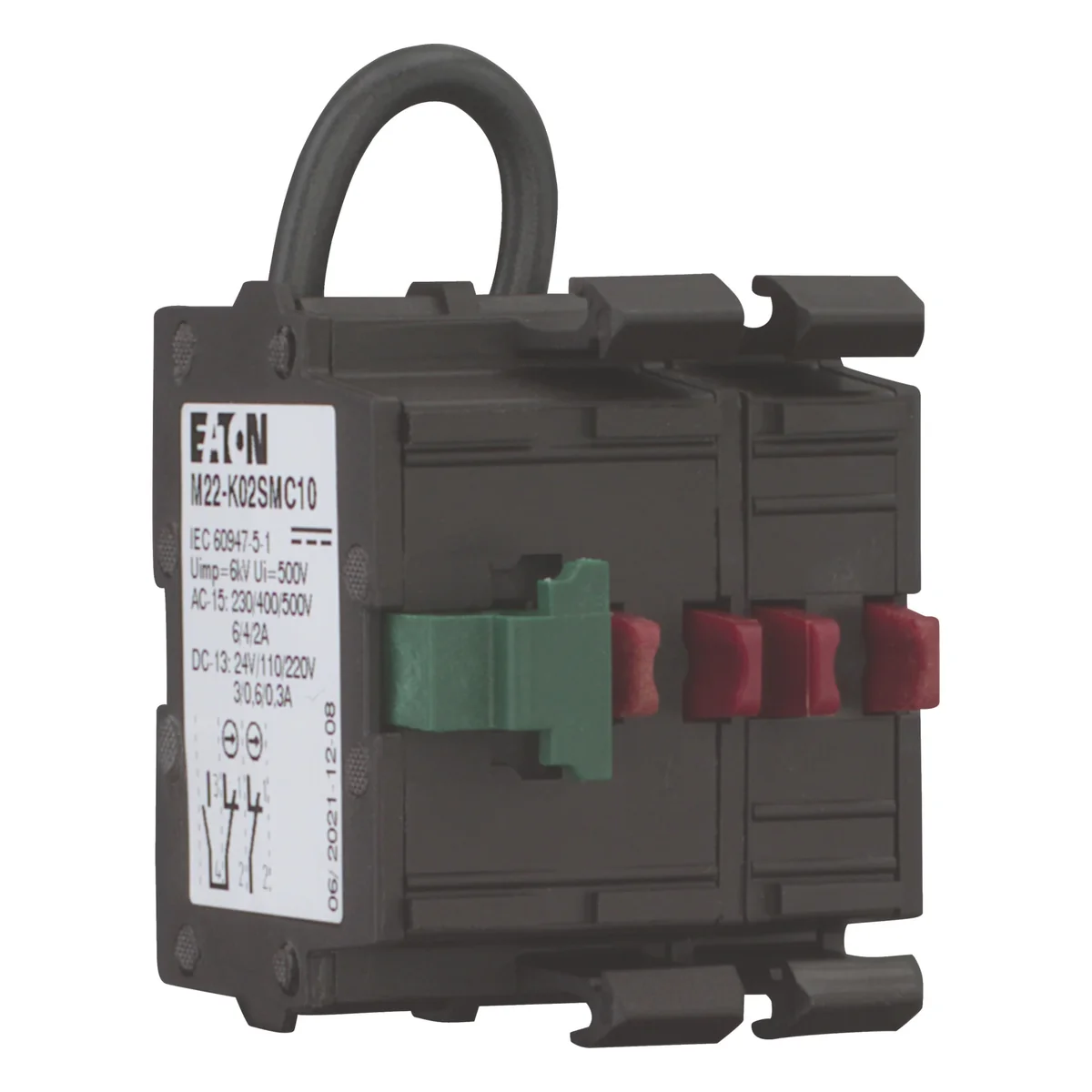

Name: Self-monitoring contact element 1NO 2R fixed to the front plate
Brand: EATON
SKU: ALA418MOEL
Price: 27.97 PLN

The normally open contact is actuated by pressing a button when mounted. Contact configuration Z = NO contact: 1 C, Contact configuration R = NC contacts: 2 R, Contact configuration.

Installation

Fixed to the front plate

How to connect

screw terminals

Other technical data

Number of contacts as change-over contact

0
Number of contacts as normally closed contact

2
Rated operation current Ie at AC-15, 230 V

6 A
Model

Clip-on
Lamp holder

None

Number of contacts as normally open contact

1
Number of fault-signal switches

0
Type of electric connection

Screw connection
Mounting method

Front fastening

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	5 pcs.
Weight (kg)	0,033	0,167
Volume (m3)	0,000	0,000
Width (m)	0,034	0,068
Length (m)	0,040	0,075
Depth (m)	0,032	0,065
