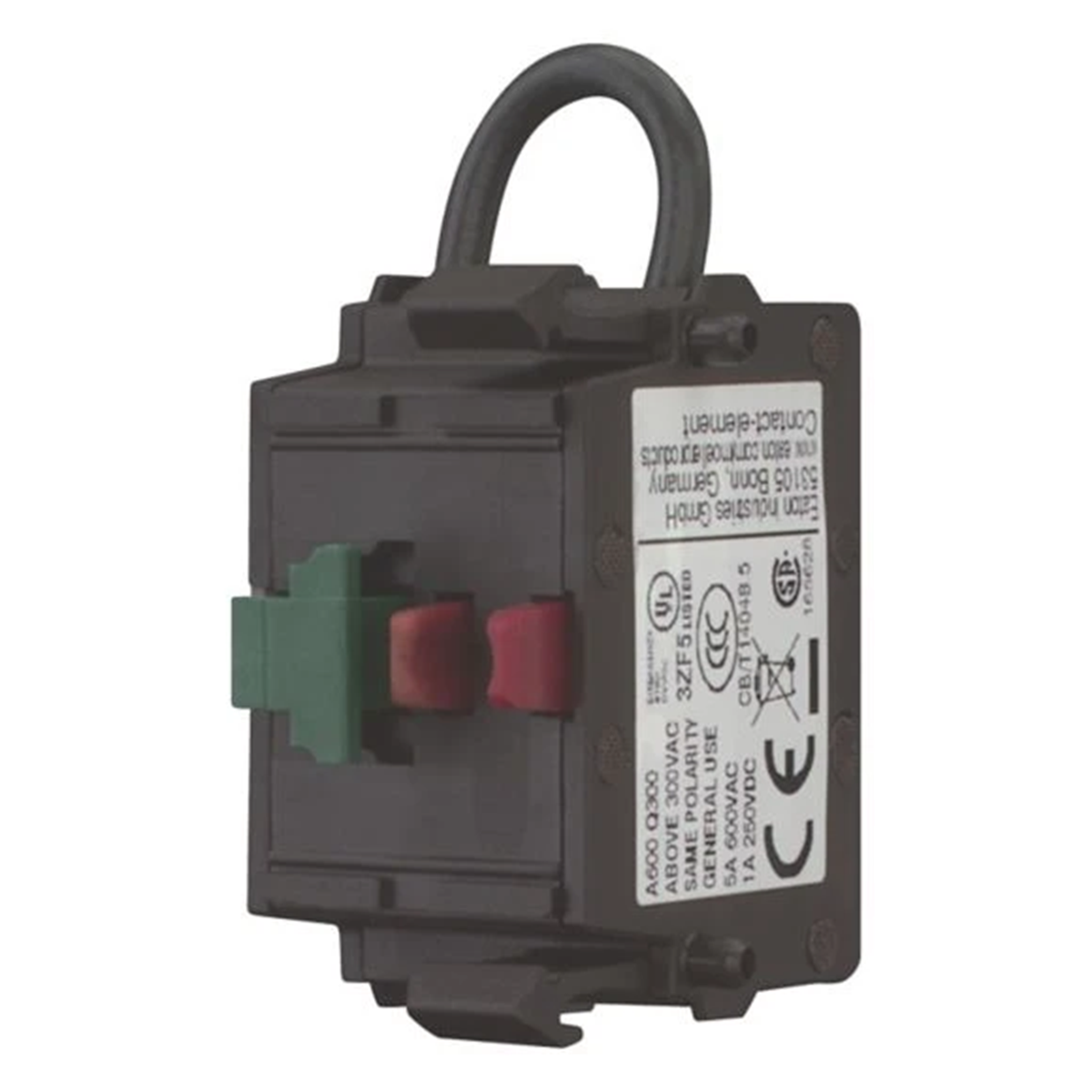

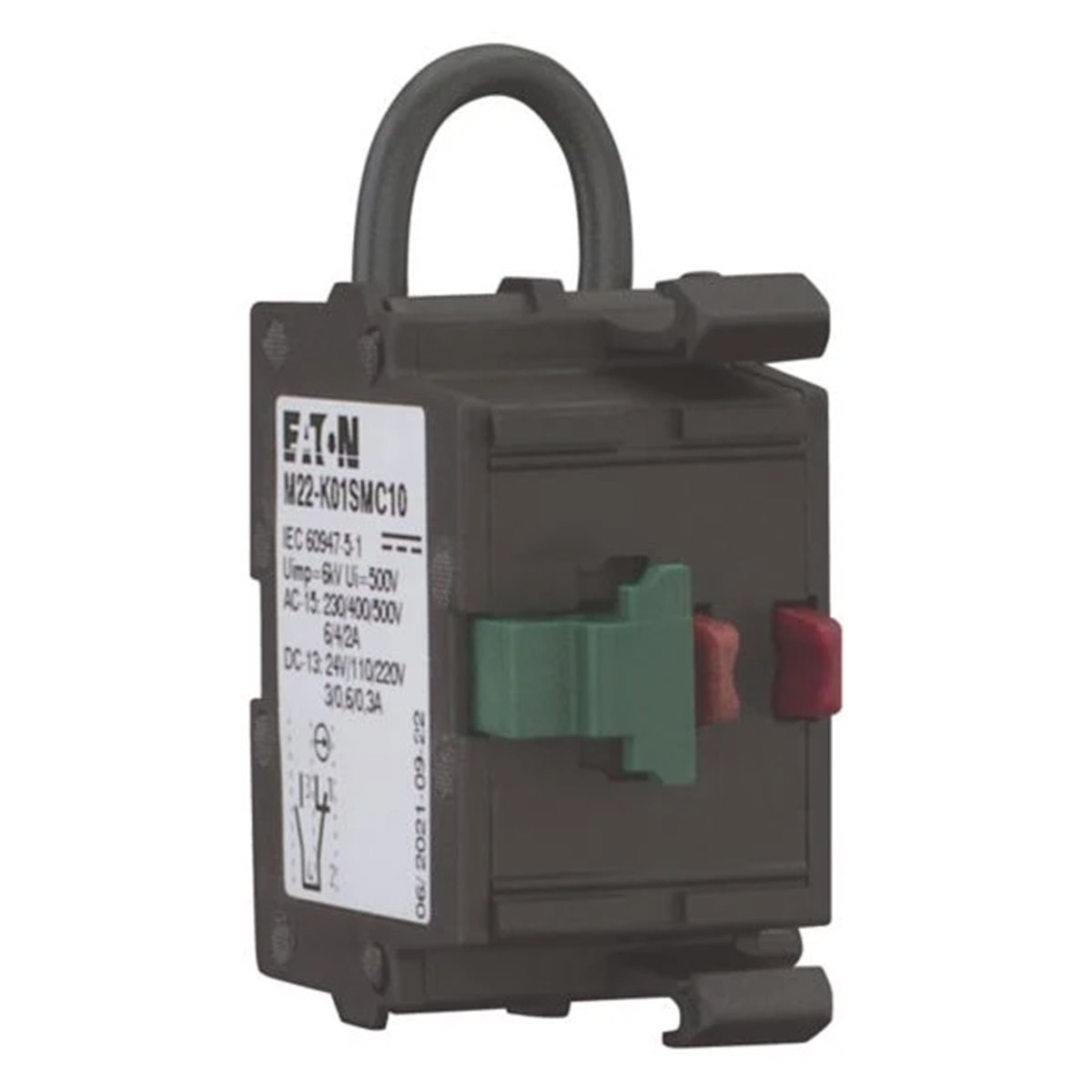

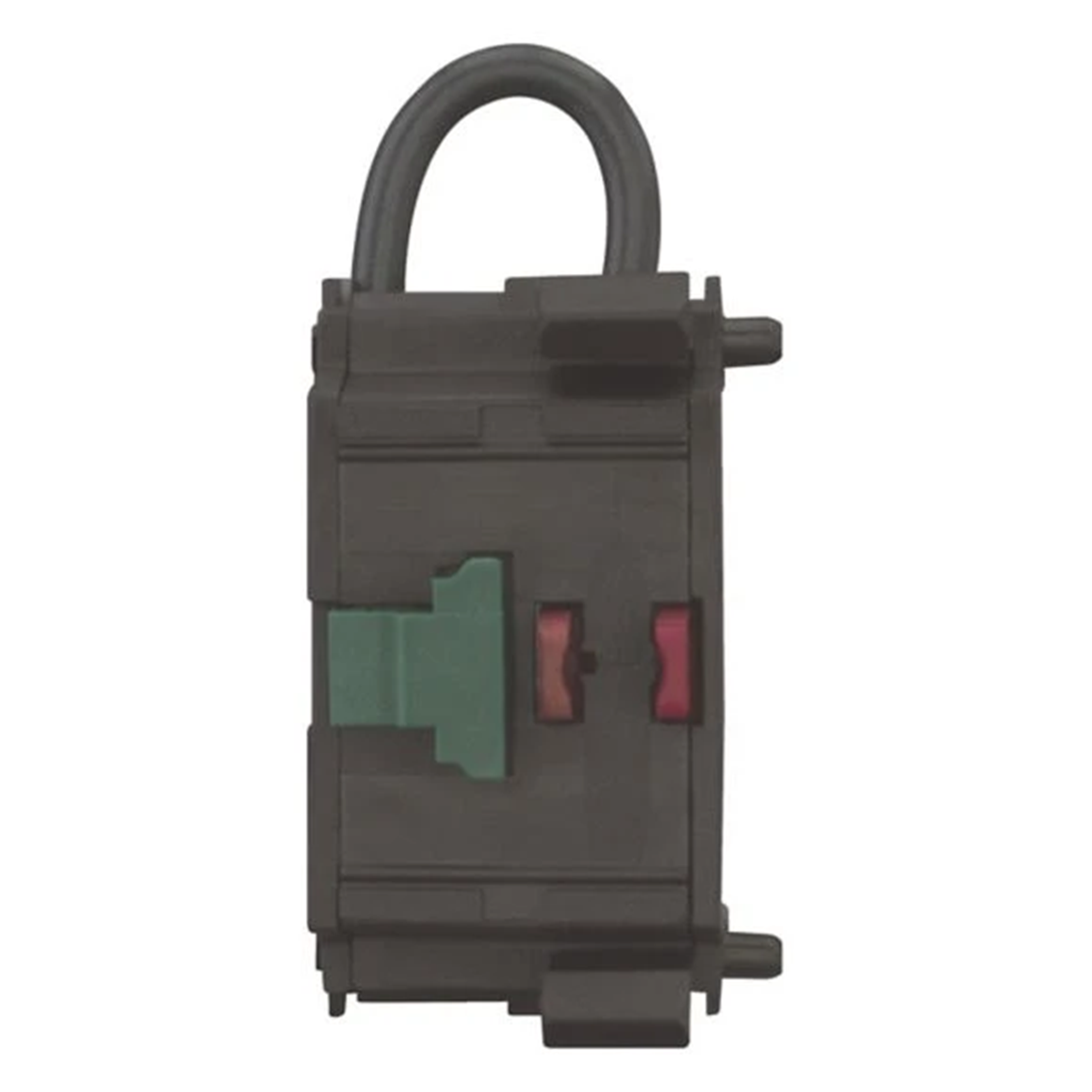

Name: Self-monitoring contact element 1NO 1NC front mounting
Brand: EATON
SKU: ALA416MOEL
Price: 19.57 PLN

The normally open contact is actuated by pressing a button when mounted. Contact configuration Z = NO contact: 1 NO, Contact configuration R = NC contacts: 1 R, Contact configuration.

Installation

Fastening to the front plate

How to connect

screw terminals

Other technical data

Number of contacts as change-over contact

0
Number of contacts as normally closed contact

1
Rated operation current Ie at AC-15, 230 V

6 A
Model

Clip-on
Lamp holder

None

Number of contacts as normally open contact

1
Number of fault-signal switches

0
Type of electric connection

Screw connection
Mounting method

Front fastening

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	5 pcs.
Weight (kg)	0,021	0,024	0,122
Volume (m3)	0,000	0,000	0,001
Width (m)	0,023	0,025	0,080
Length (m)	0,035	0,037	0,095
Depth (m)	0,051	0,053	0,066
