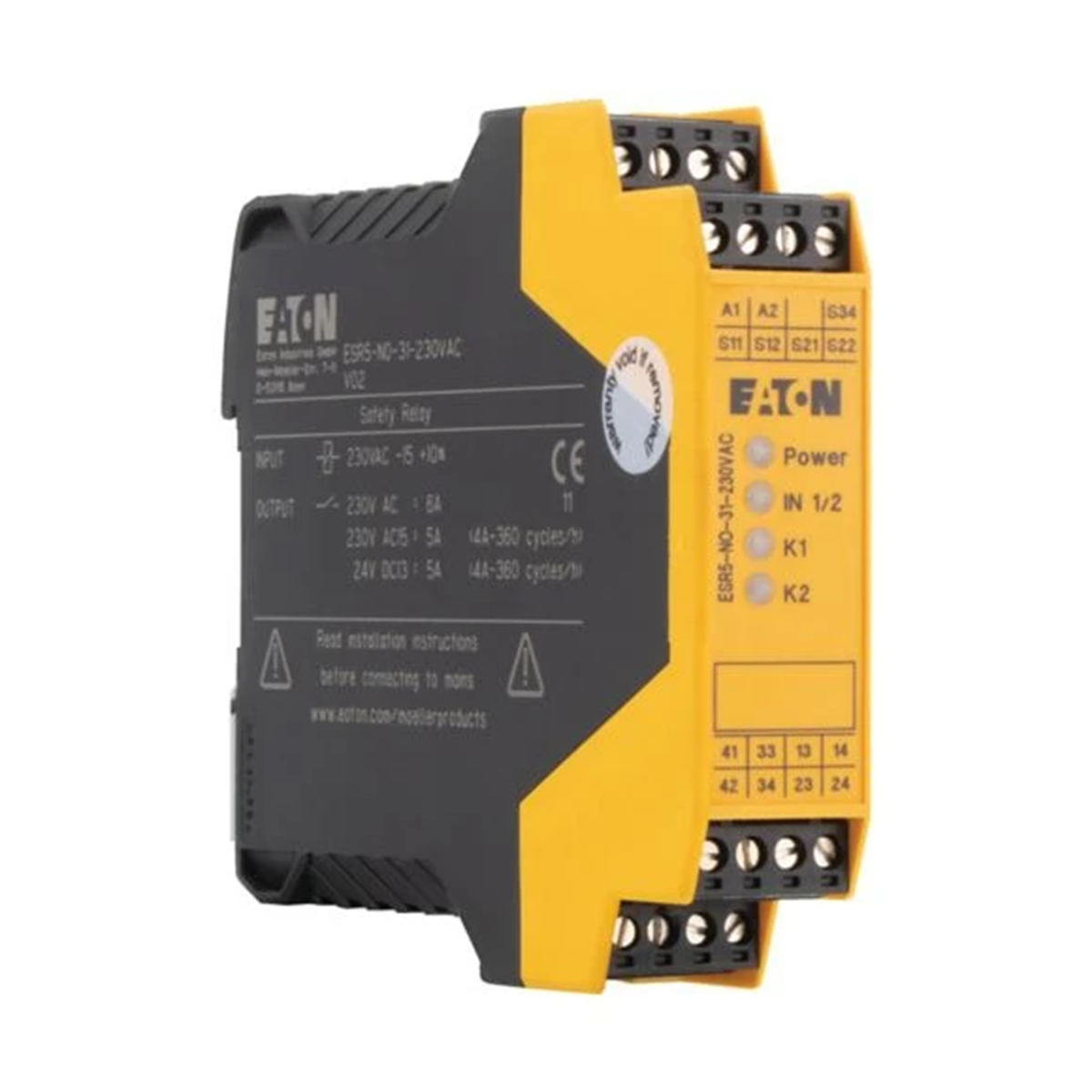

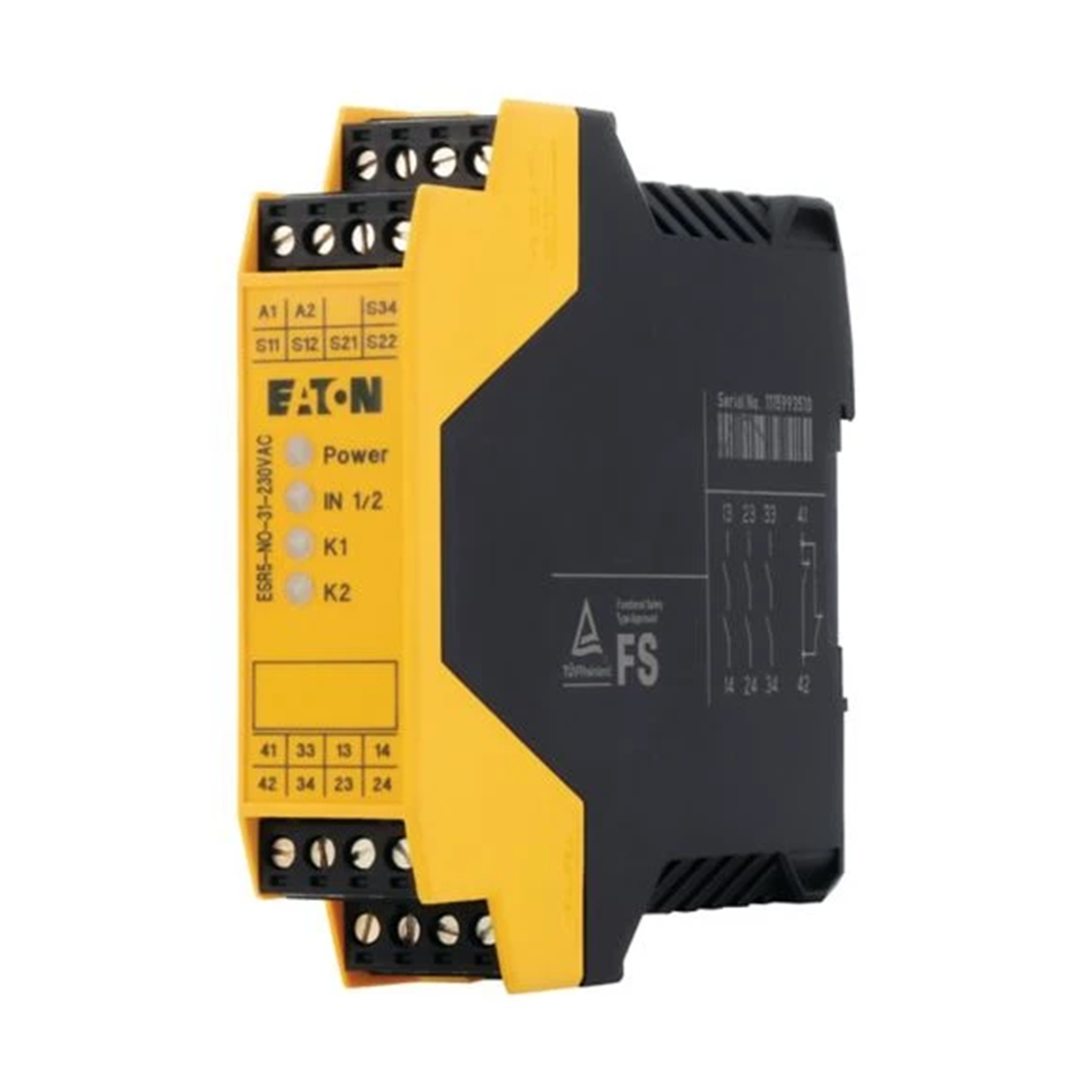

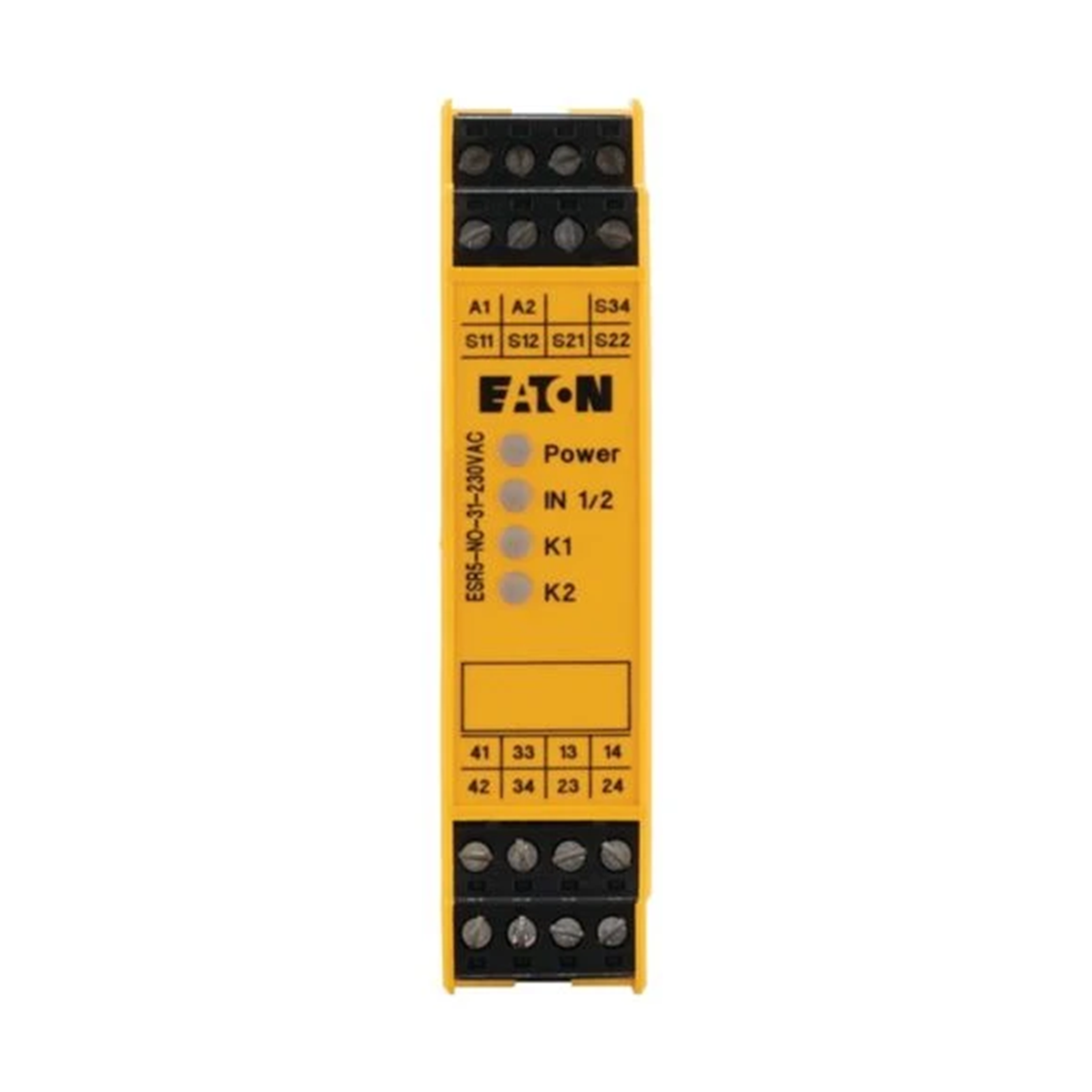

Safety relay, ESR5-NO-31-230VAC 119380

local index:
APC121MOEL
Catalog No:
119380
EAN code:
4015081175062
Manufacturer: EATON
Number of enabling circuits according to IEC/EN 60204 [Stop category]: 3
Price:
279,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Safety relays for controlling safety buttons and safety gates - two-channel.

Technical data

  • Number of enabling circuits according to IEC/EN 60204 [Stop category]
    3

Other technical data

  • Model
    Basic device
  • Suitable for monitoring of emergency-stop circuits
    Yes
  • Suitable for monitoring of optoelectronic protection equipment
    No
  • Suitable for monitoring of magnetic switches
    No
  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    0 ... 26.4 V
  • Rated control supply voltage DC
    0 ... 0 V
  • With detachable clamps
    Yes
  • With start input
    Yes
  • With feedback circuit
    Yes
  • Number of outputs, safety related, undelayed, with contact
    3
  • Number of outputs, safety related, undelayed, semiconductors
    0
  • Number of outputs, signalling function, undelayed, with contact
    1
  • Number of outputs, signalling function, undelayed, semiconductors
    0
  • Type of safety according to IEC 61496-1
    None
  • Performance level according to EN ISO 13849-1
    Level e
  • With approval for BG BIA
    No
  • Width
    22.5 mm
  • Depth
    114.5 mm
  • Suitable for monitoring of position switches
    Yes
  • Suitable for monitoring of valves
    No
  • Suitable for monitoring of tactile sensors
    No
  • Suitable for monitoring of proximity switches
    No
  • Rail mounting possible
    Yes
  • Rated control supply voltage AC 60 Hz
    20.4 ... 230 V
  • Voltage type for actuating
    AC
  • Evaluation inputs
    One- and two-channel
  • With muting function
    No
  • Release-delay
    0 ... 0 s
  • Number of outputs, safety related, delayed, with contact
    0
  • Number of outputs, safety related, delayed, semiconductors
    0
  • Number of outputs, signalling function, delayed, with contact
    0
  • Number of outputs, signalling function, delayed, semiconductors
    0
  • Stop category according to IEC 60204
    0
  • SIL according to IEC 61508
    3
  • With approval according to UL
    Yes
  • Height
    99 mm
  • With approval for TÜV
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,245
Volume (m3) 0,001
Width (m) 0,118
Length (m) 0,118
Depth (m) 0,039
