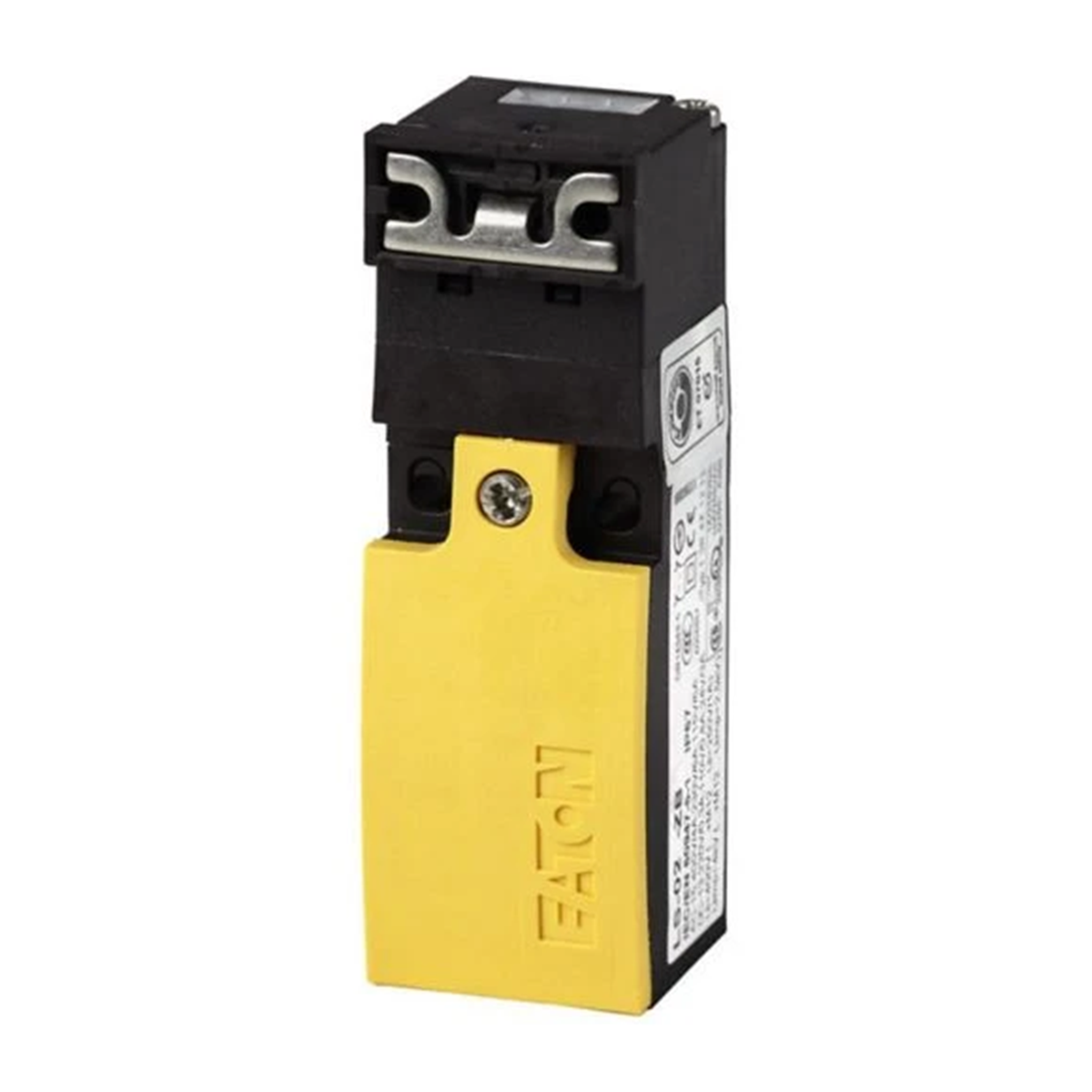

Safety limit switch LS-S11S-ZB 106877
local index:
ALC027MOEL
Catalog No:
106877
EAN code:
4015081066407
Price:
94,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Complete sets. Roller lever IP66, IP67 long. The drive head can be repositioned in 90° increments to match the desired drive direction.
Technical data
-
Number of contacts1NO 1NC
-
How to connectClamps with a screw
Other technical data
-
Width sensor30 mm
-
Height of sensor96 mm
-
Rated operation current Ie at AC-15, 24 V10 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionQuick-break switch
-
Output electronicNo
-
Number of safety auxiliary contacts1
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.35 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementOther
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. |
| Weight (kg) | 0,080 | 0,092 | 0,184 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,030 | 0,032 | 0,064 |
| Length (m) | 0,095 | 0,097 | 0,115 |
| Depth (m) | 0,030 | 0,032 | 0,073 |
