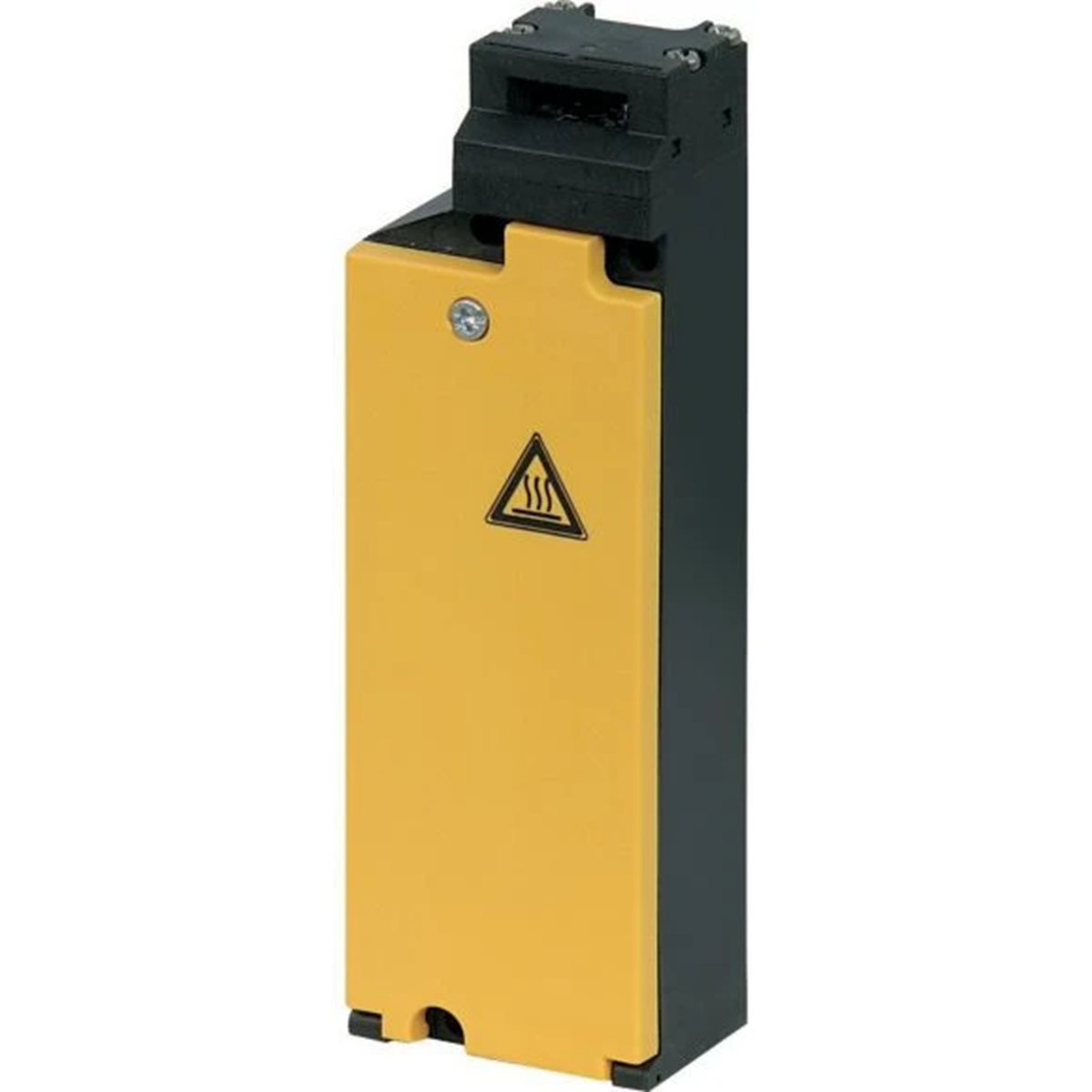

Safety limit switch LS-S11-24DMT-ZBZ/X 106830
local index:
ALC075MOEL
Catalog No:
106830
EAN code:
4015081065905
Manufacturer:
EATON
Number of contacts: 1NO 1NC
Rated supply voltage for the electromagnetic drive: 24V DC
Price:
279,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic interlocked basic devices (operating current principle) IP65
• With locking control
• Door position control: permanent
• With locking control
• Door position control: permanent
Technical data
-
Number of contacts1NO 1NC
-
PKWIU25.11.23.0
-
Rated supply voltage for the electromagnetic drive24V DC
Other technical data
-
Width sensor60 mm
-
Height of sensor173 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionSlow-action switch
-
Output electronicNo
-
Number of safety auxiliary contacts1
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor39 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementNone
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,430 | 0,456 |
| Volume (m3) | 0,000 | 0,001 |
| Width (m) | 0,037 | 0,059 |
| Length (m) | 0,055 | 0,068 |
| Depth (m) | 0,170 | 0,197 |
