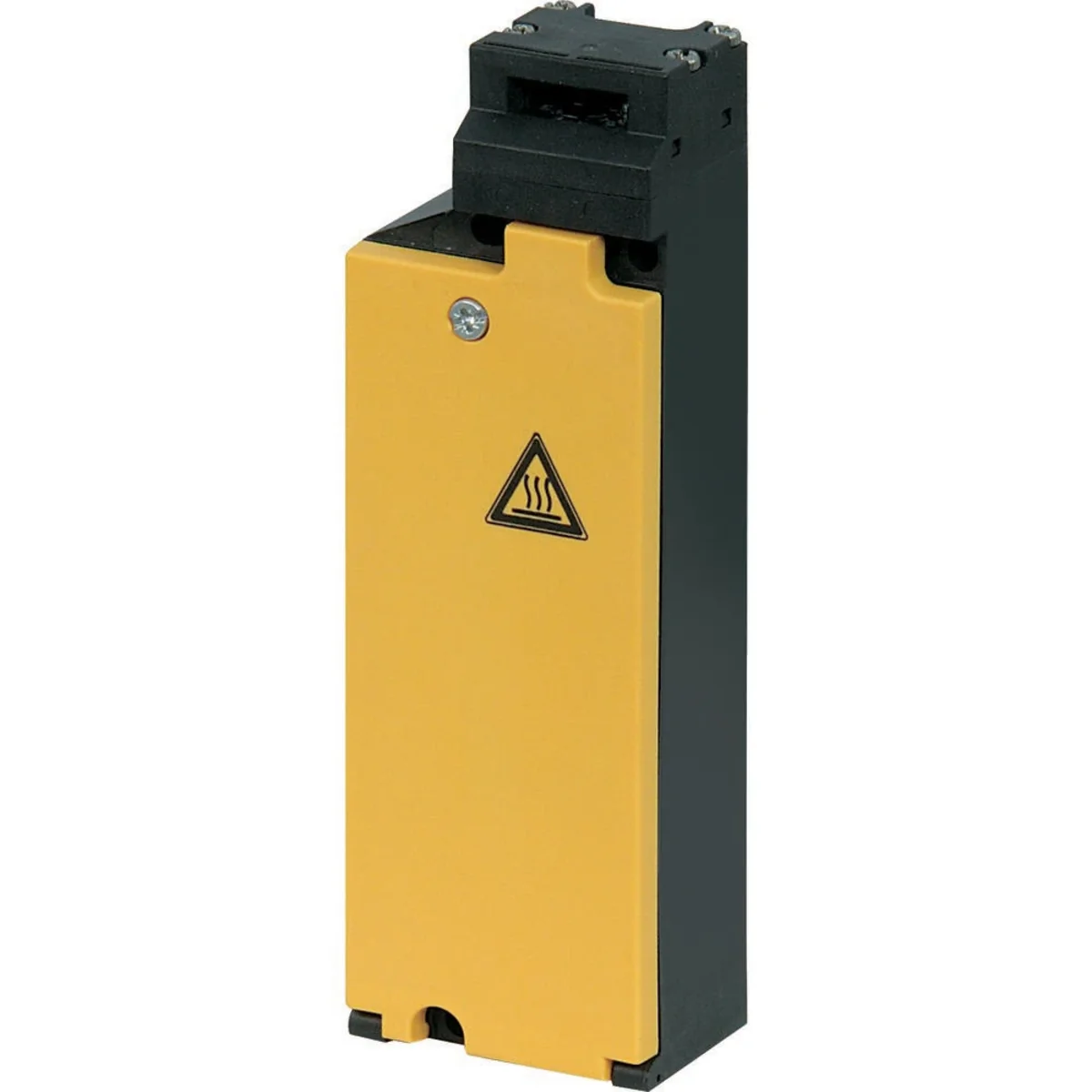

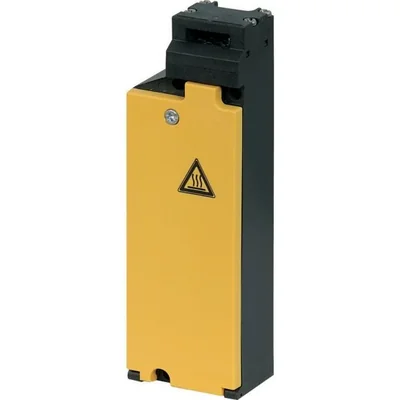

Safety limit switch LS-S02-24DMT-ZBZ/X 106824
local index:
ALC029MOEL
Catalog No:
106824
EAN code:
4015081065844
Manufacturer:
EATON
Number of contacts: 1NO 1NC
Rated supply voltage for the electromagnetic drive: 24V DC
Price:
273,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic interlocked basic devices (operating current principle) IP65
• With locking control
• Door position control: permanent
It is possible to control the unlocking as a function of time via ESR5-NV30-30. With the control key inserted, the normally open contact is open and the normally closed contact is closed. The drive head can be adjusted in 90° increments without tools to match the clamping plane. To obtain the degree of protection IP65, use V-M20 cable glands with a maximum thread length of 9 mm.
• With locking control
• Door position control: permanent
It is possible to control the unlocking as a function of time via ESR5-NV30-30. With the control key inserted, the normally open contact is open and the normally closed contact is closed. The drive head can be adjusted in 90° increments without tools to match the clamping plane. To obtain the degree of protection IP65, use V-M20 cable glands with a maximum thread length of 9 mm.
Technical data
-
Number of contacts1NO 1NC
-
Rated supply voltage for the electromagnetic drive24V DC
Other technical data
-
Width sensor60 mm
-
Height of sensor173 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionSlow-action switch
-
Output electronicNo
-
Number of safety auxiliary contacts2
-
Number of contacts as normally open contact0
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor39 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact2
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementNone
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP65
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,456 |
| Volume (m3) | 0,001 |
| Width (m) | 0,059 |
| Length (m) | 0,068 |
| Depth (m) | 0,197 |
