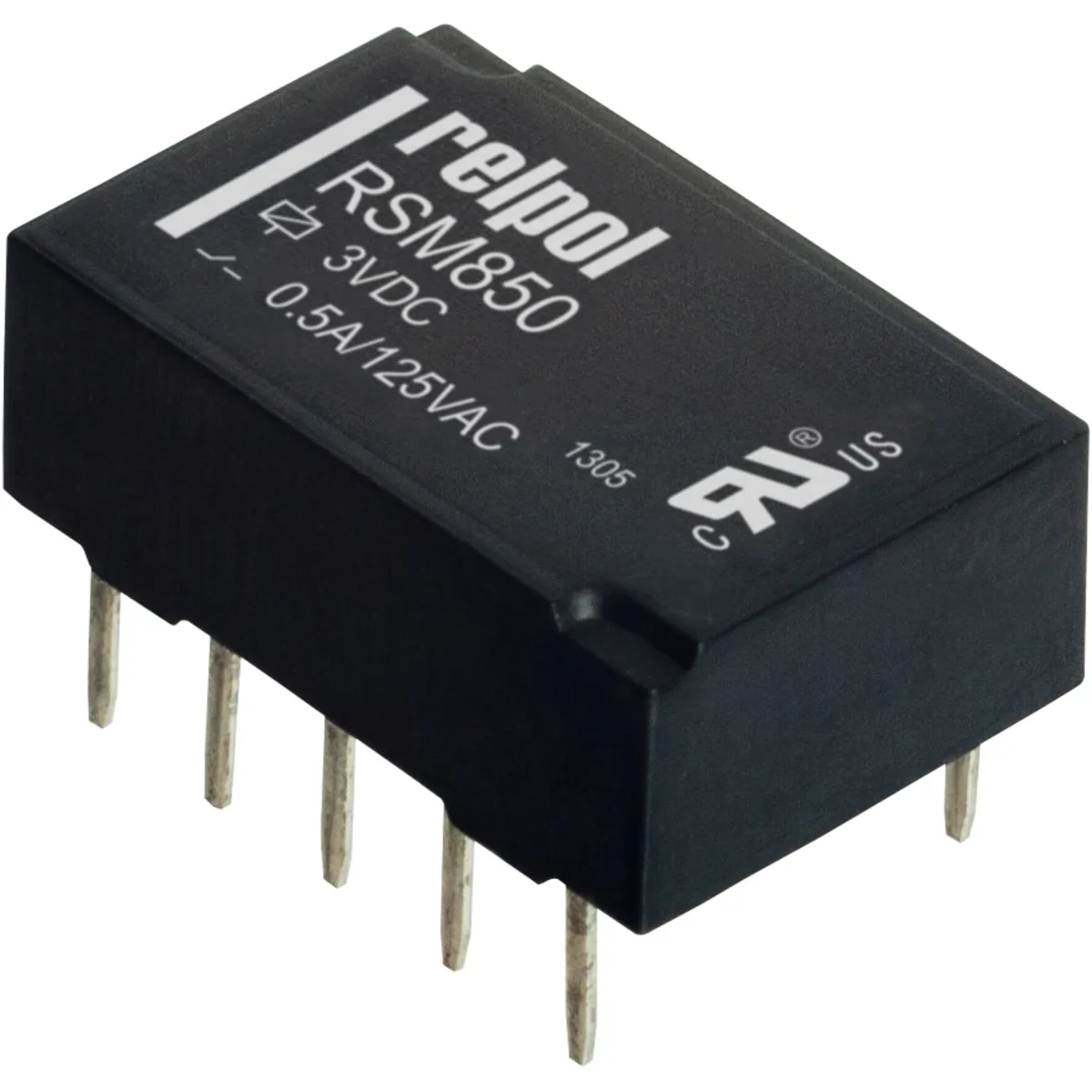

RSM850 relay 2611707

local index:
APC022RELP
Catalog No:
2611707
Manufacturer: RELPOL
Pieces in the package: 25
Price:
87,71 €
gross / pkg.
(including VAT 23%)
3,51 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Input / coil: 1-10, supply voltage Un - 9 V DC

Technical data

  • Pieces in the package
    25

Other technical data

  • Type of electric connection
    PCB connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP64
  • Height
    5.4 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    9 ... 9 V
  • Drive, polarization
    Polarized
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Complete with socket
    No
  • Width
    9.3 mm
  • Depth
    14.3 mm
