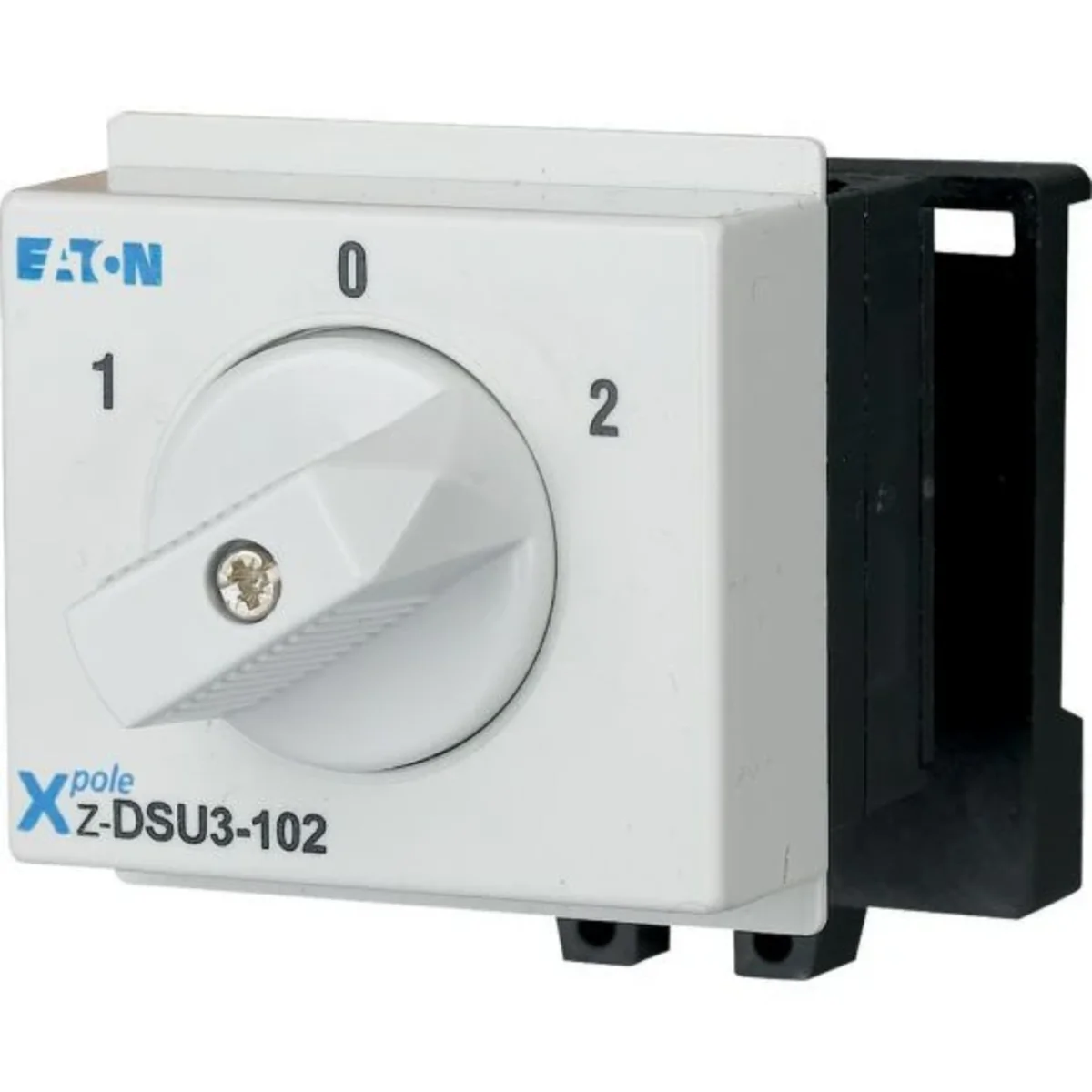

Rotary switch 3 pole changeover 1-0-2, Z-DSU3-102 248877
local index:
ALI014MOEL
Catalog No:
248877
EAN code:
4015082488772
Price:
197,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Rotary switch 3 pole changeover 1-0-2
Technical data
-
Number of contacts0NO 0NC
-
items1-0-2
Other technical data
-
Switching functionTwo-way switch
-
Number of contacts as normally closed contact0
-
Number of poles3
-
Rated voltage690 V
-
Rated switching capacity0 kA
-
Voltage typeAC
-
With signal lampNo
-
Lamp typeOther
-
Max. lamp power0 W
-
Built-in depth60 mm
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact3
-
Rated current20 A
-
Min. rated voltage440 V
-
Short-circuit breaking capacity (Icw)10 kA
-
Wymuszone otwarcie styków (zgodnie z DIN VDE 0113)No
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 40 pcs. |
| Weight (kg) | 0,120 | 0,130 | 4,800 |
| Volume (m3) | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,052 | 0,055 | 0,195 |
| Length (m) | 0,065 | 0,095 | 0,385 |
| Depth (m) | 0,079 | 0,080 | 0,230 |
