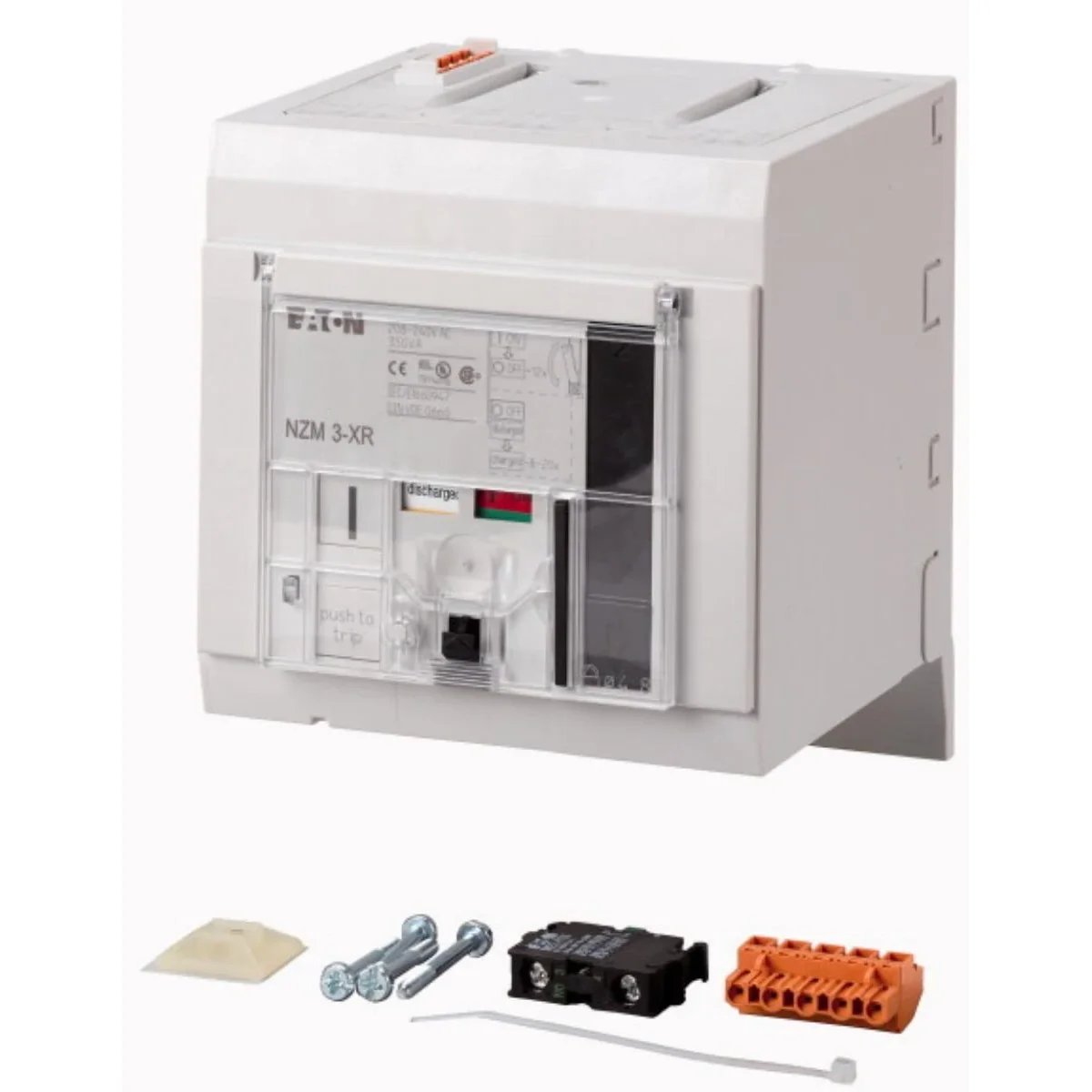

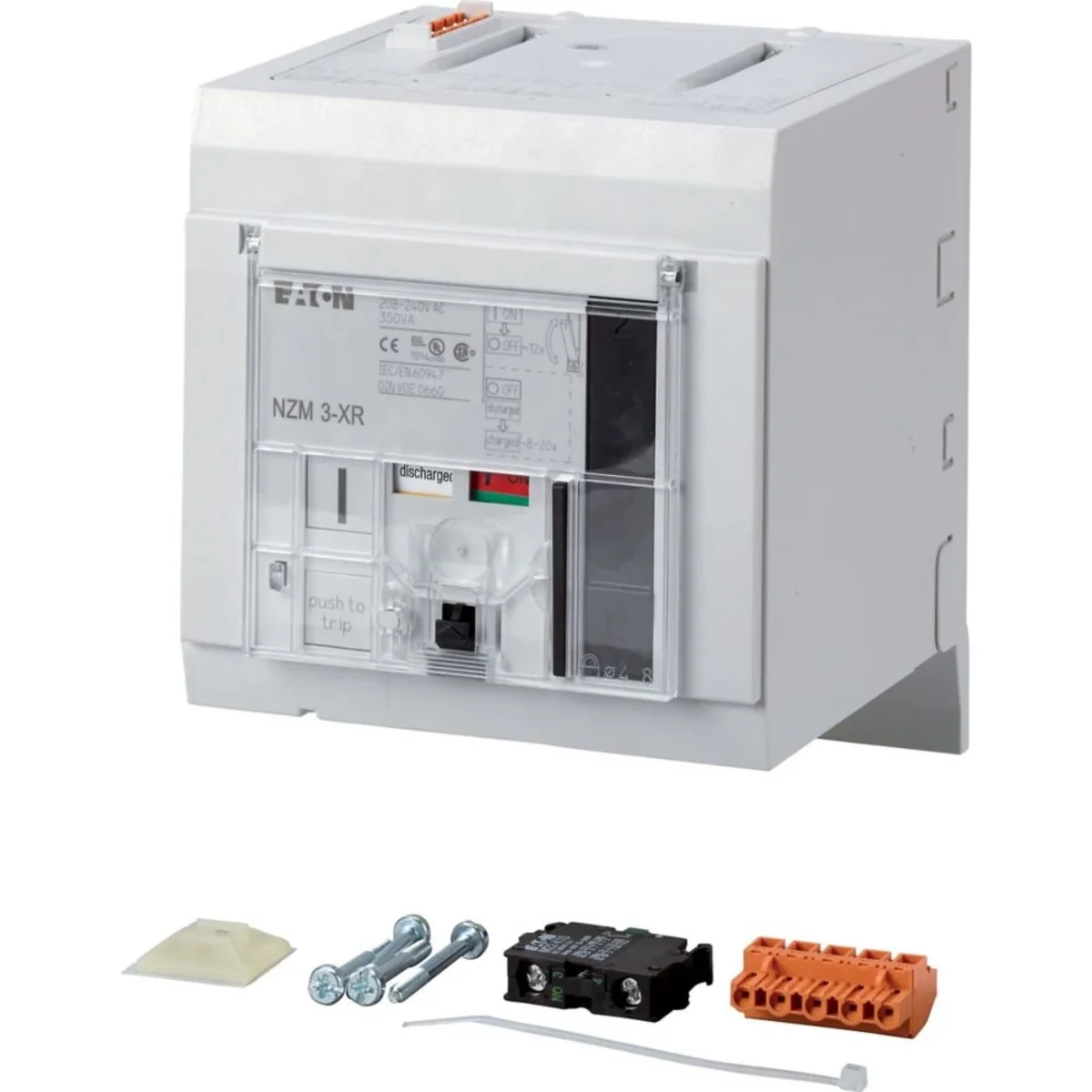

Remote drive for BG3, NZM3-XR208-240AC 259850

local index:
ALA116MOEL
Catalog No:
259850
EAN code:
4015082598501
Manufacturer: EATON
Rated control circuit voltage [V]: 230
Price:
814,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For remote closing of circuit breakers and circuit breakers. Enable, disable and reset with continuous and pulse control. Local manual activation possible. In position 0, the remote drive can be locked with 3 padlocks (shackle thickness: 4–8 mm)

Technical data

  • Rated control circuit voltage [V]
    230

Other technical data

  • Type of switch drive
    Motor drive
  • Rated control supply voltage AC 60 Hz
    208 ... 240 V
  • Voltage type for actuating
    AC
  • Rated control supply voltage AC 50 Hz
    208 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 3,253
Volume (m3) 0,003
Width (m) 0,140
Length (m) 0,170
Depth (m) 0,140
