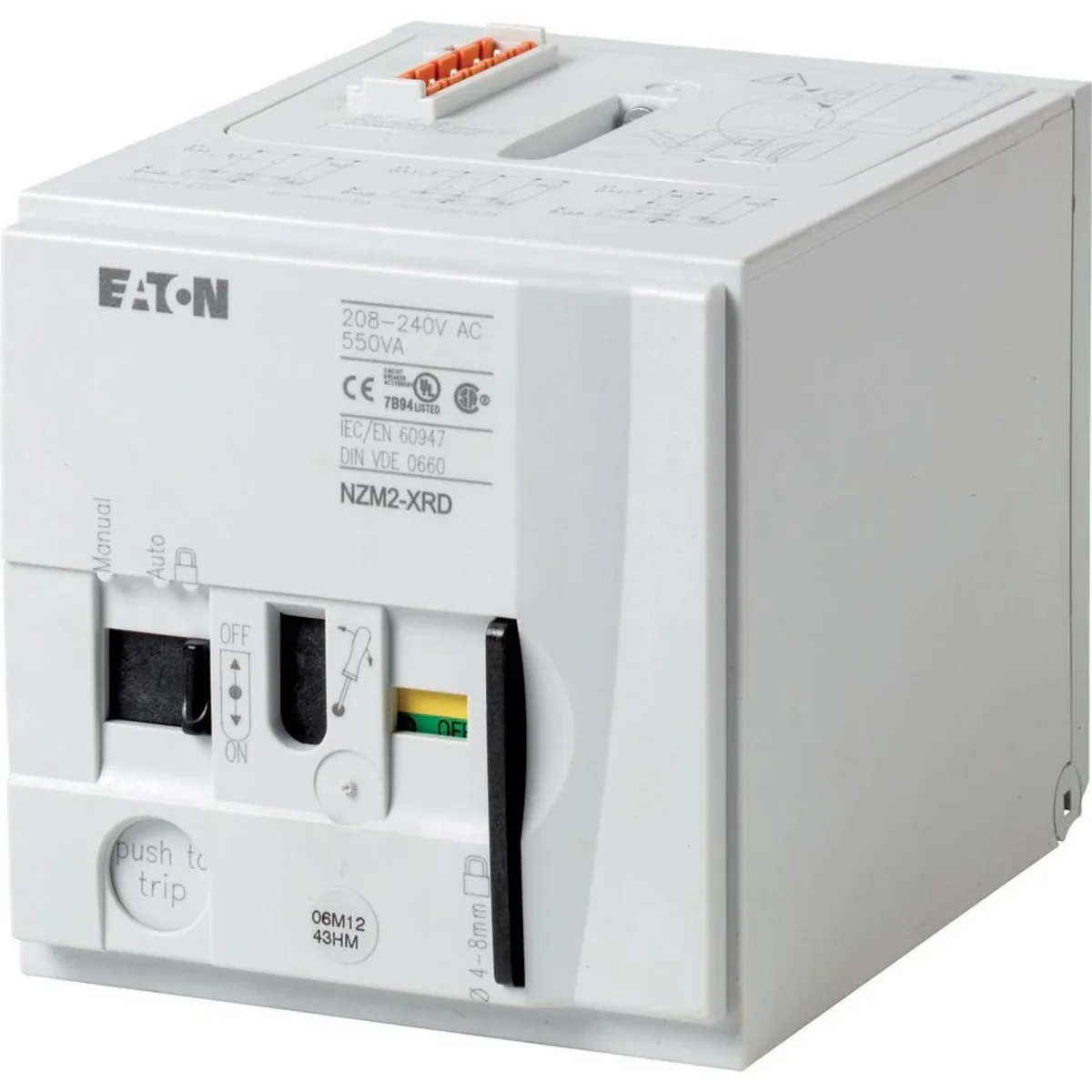

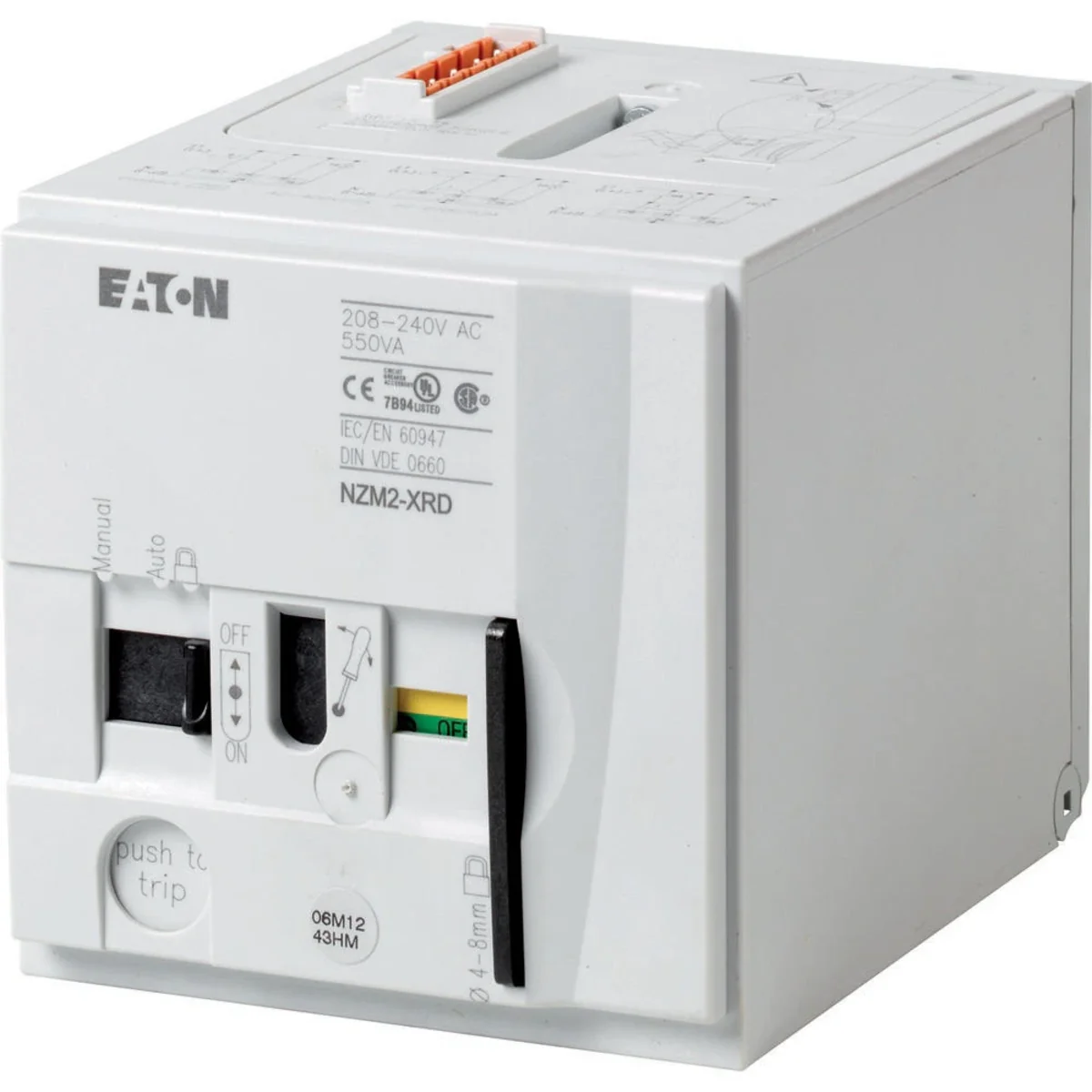

Optional accessories for the NZM range of circuit breakers include a wide range of devices suitable for international use. Installation is flexible and easy thanks to the modular functional groups. Notes: For remote control of circuit breakers and disconnectors. Switching on/off and reset via continuous and pulse contact. Possibility of manual control on site. Closing in the 0 position of the remote operator with 3 shackle closures (shackle thickness: 4-8mm). Slider to set automatic or manual operation. number of auxiliary switch contacts: 2 normal auxiliary switches, 1 trip auxiliary switch. Cannot be combined with PN disconnectors. Cannot be combined with mechanical locking. Applicable to: NZM2(-4), N(S)2(-4)

Type of control voltage

AC

Other technical data

Type of switch drive

Motor drive
Rated control supply voltage AC 60 Hz

110 ... 130 V
Voltage type for actuating

AC

Rated control supply voltage AC 50 Hz

110 ... 130 V
Rated control supply voltage DC

0 ... 0 V

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	1,250	1,330
Volume (m3)	0,002	0,002
Width (m)	0,105	0,105
Length (m)	0,150	0,150
Depth (m)	0,105	0,105
