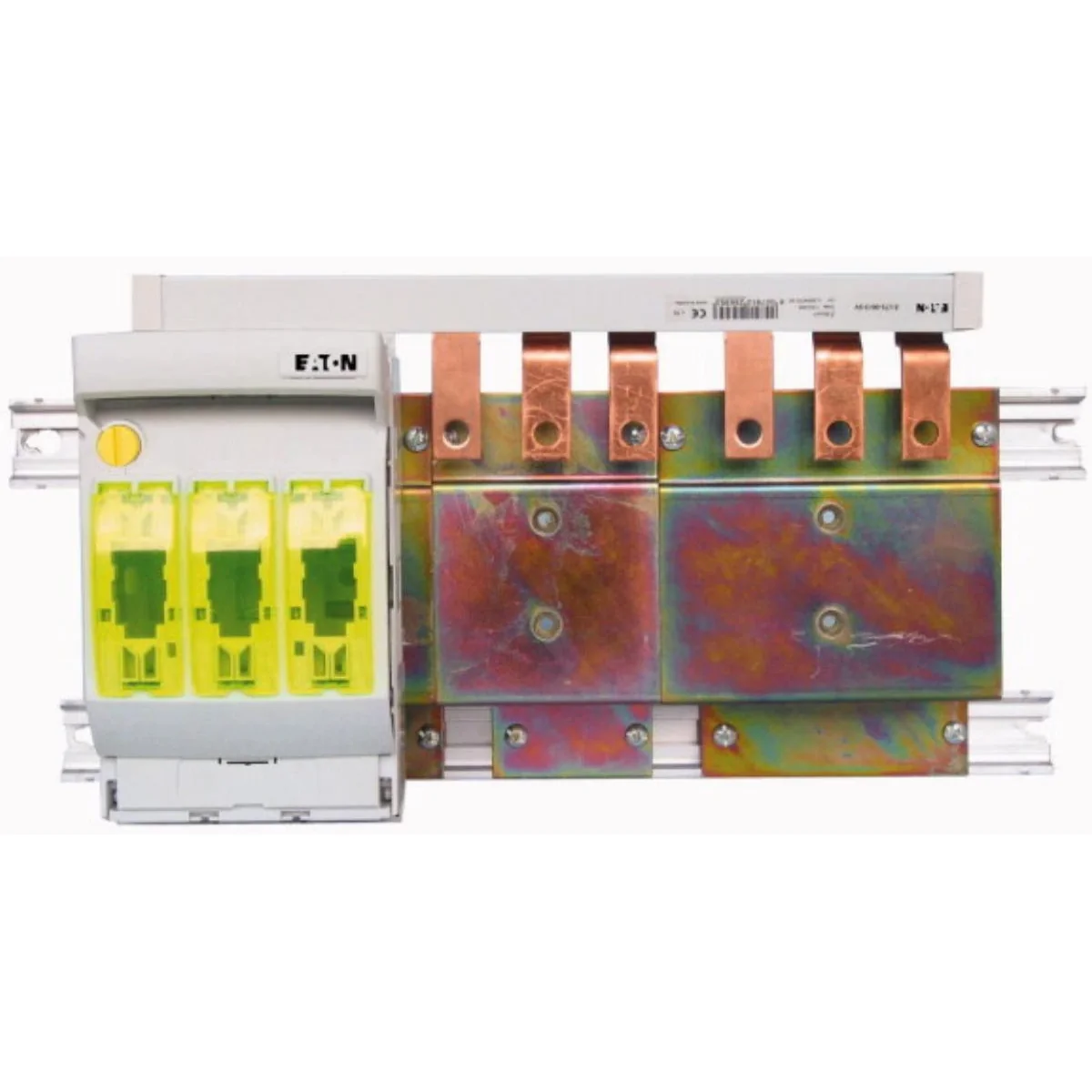

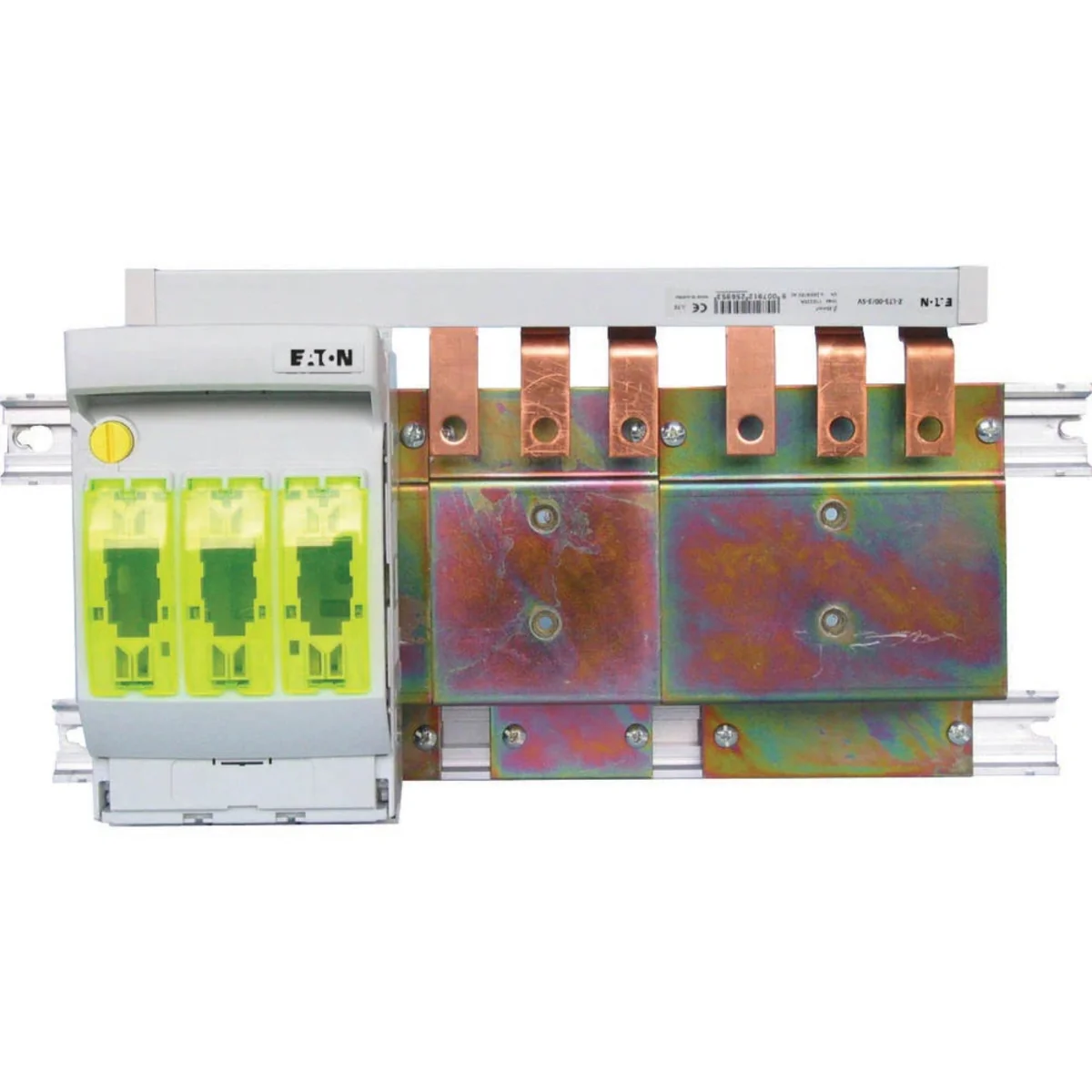

Rail block for LTS, Z-LTS-00/3-SV 264929

local index:
ALA001MOEL
Catalog No:
264929
EAN code:
4015082649296
Manufacturer: EATON
Number of poles: 3
Price:
170,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
4
)
Add to clipboard
Print

Product description

Rail block for LTS, Z-LTS-00/3-SV

Technical data

  • Number of poles
    3

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    3
  • Cross section
    35 mm²
  • Liczba modułów
    0
  • Type of electric connection
    Other
  • Rated surge voltage
    0 kV
  • Max. rated operation voltage Ue
    690 V
  • Suitable for devices with N-conductor
    No
  • Number of poles
    3
  • Module width
    33 mm
  • Length
    311 mm
  • Rated permanent current Iu
    110 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    100 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 4 pcs.
Weight (kg) 0,456 -
Volume (m3) 0,000 0,002
Width (m) 0,330 0,090
Length (m) 0,063 0,330
Depth (m) 0,024 0,080
