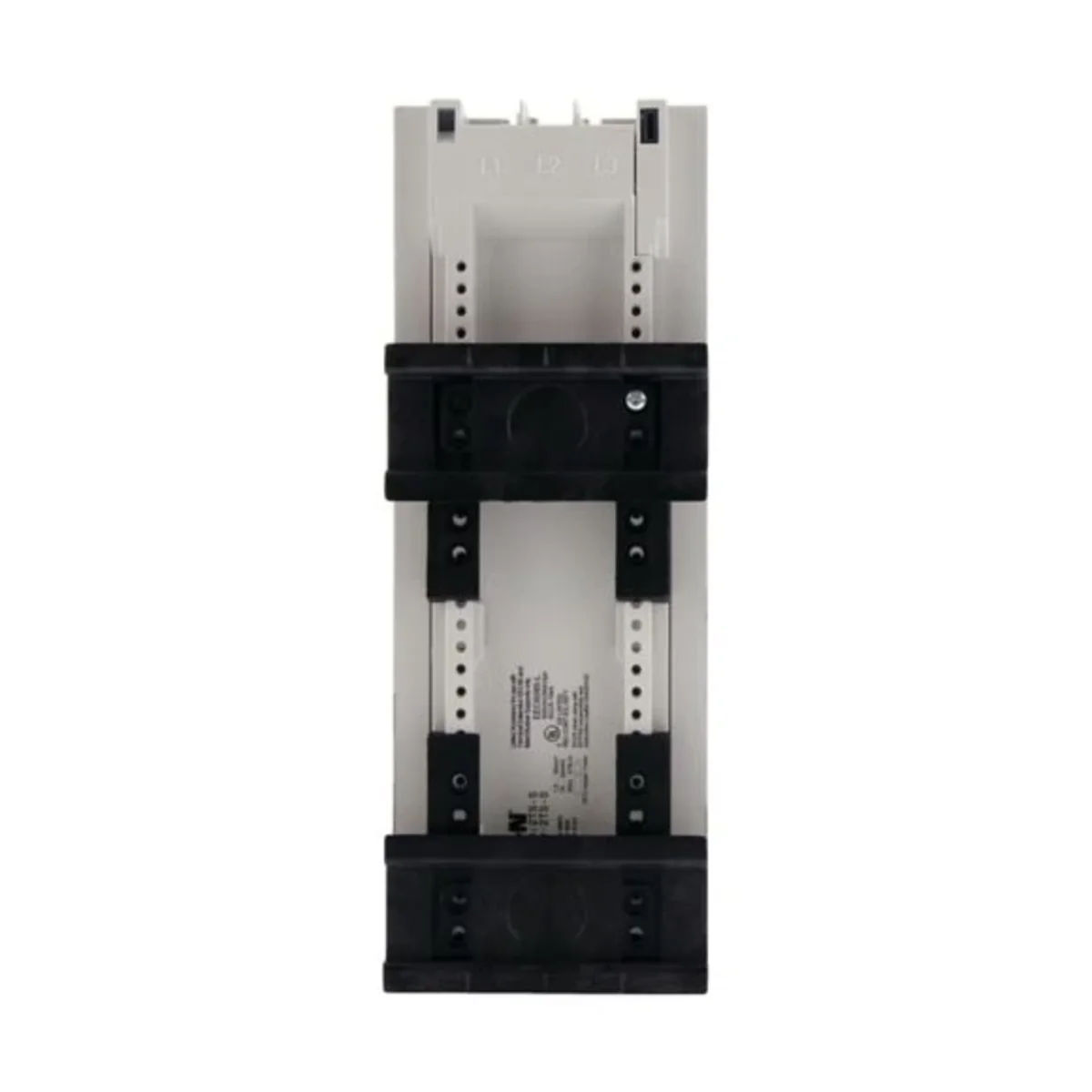

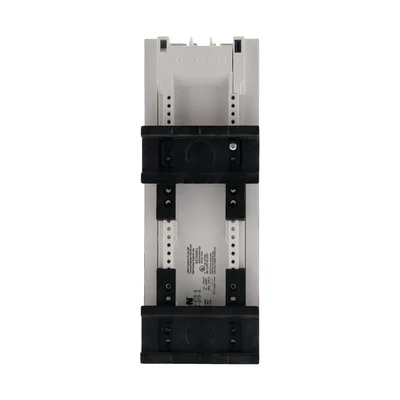

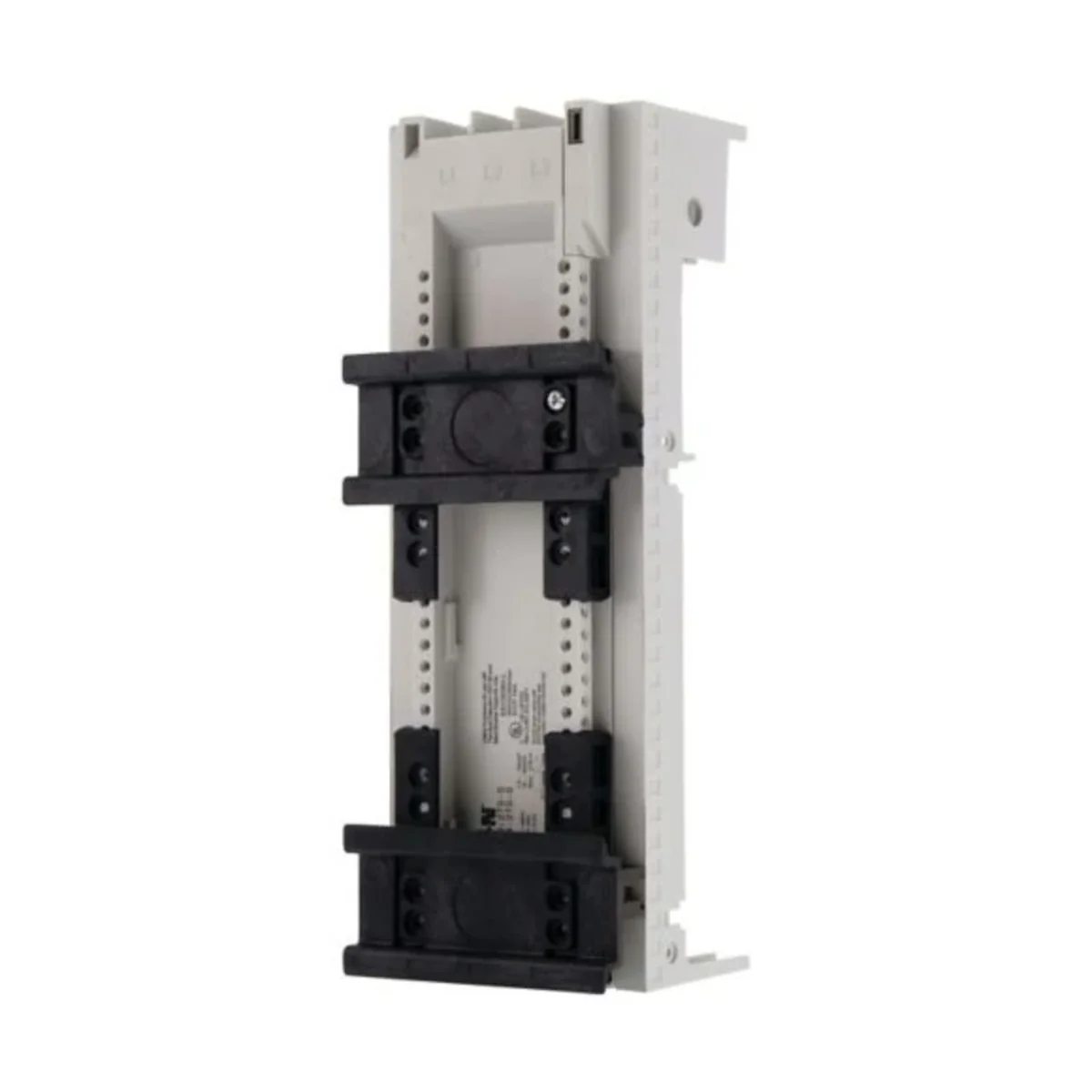

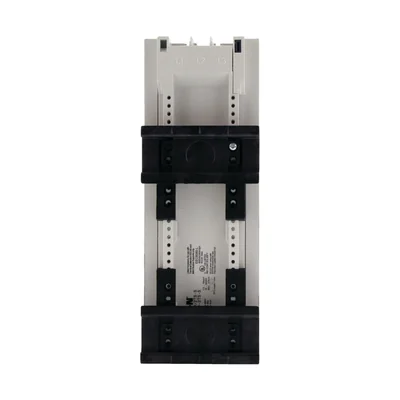

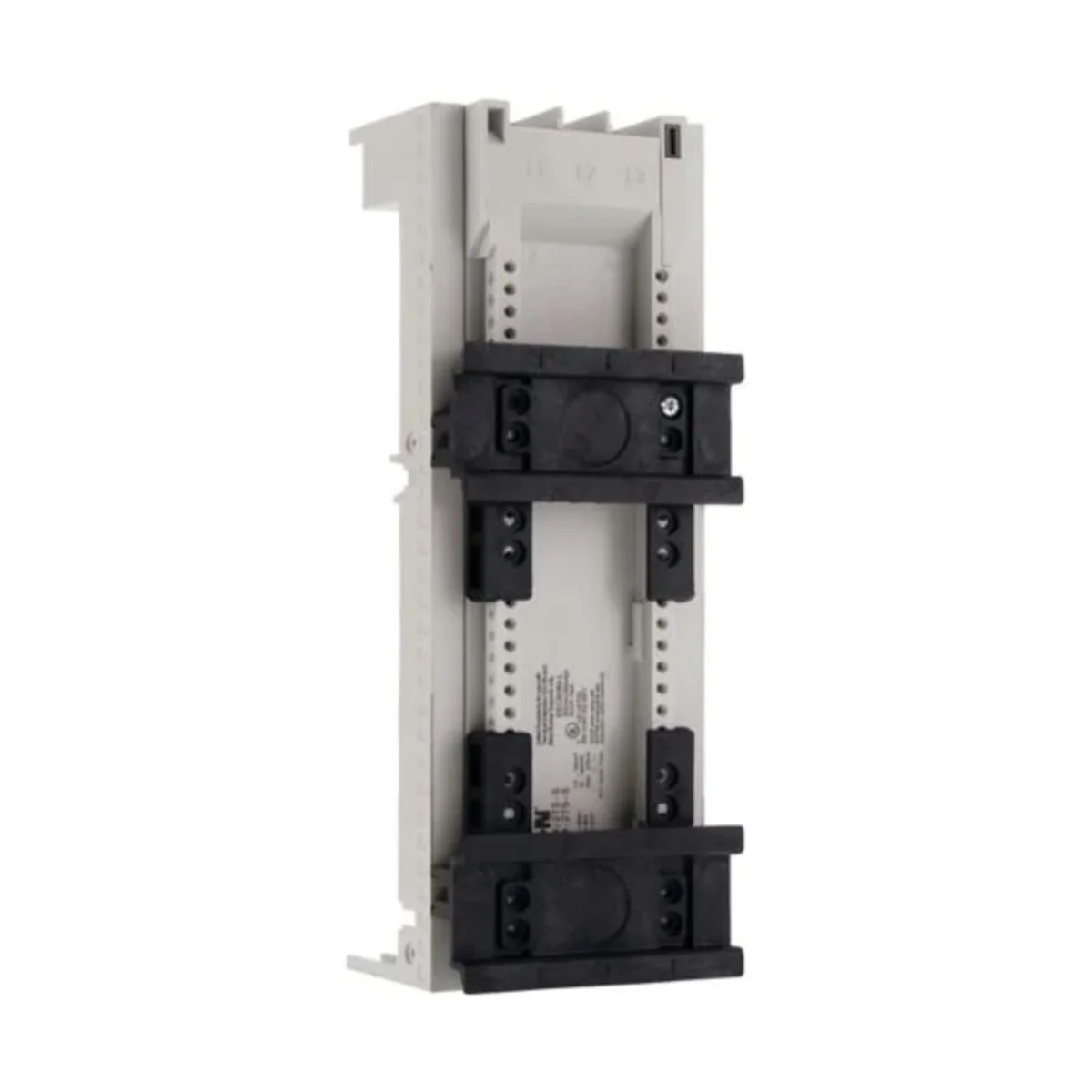

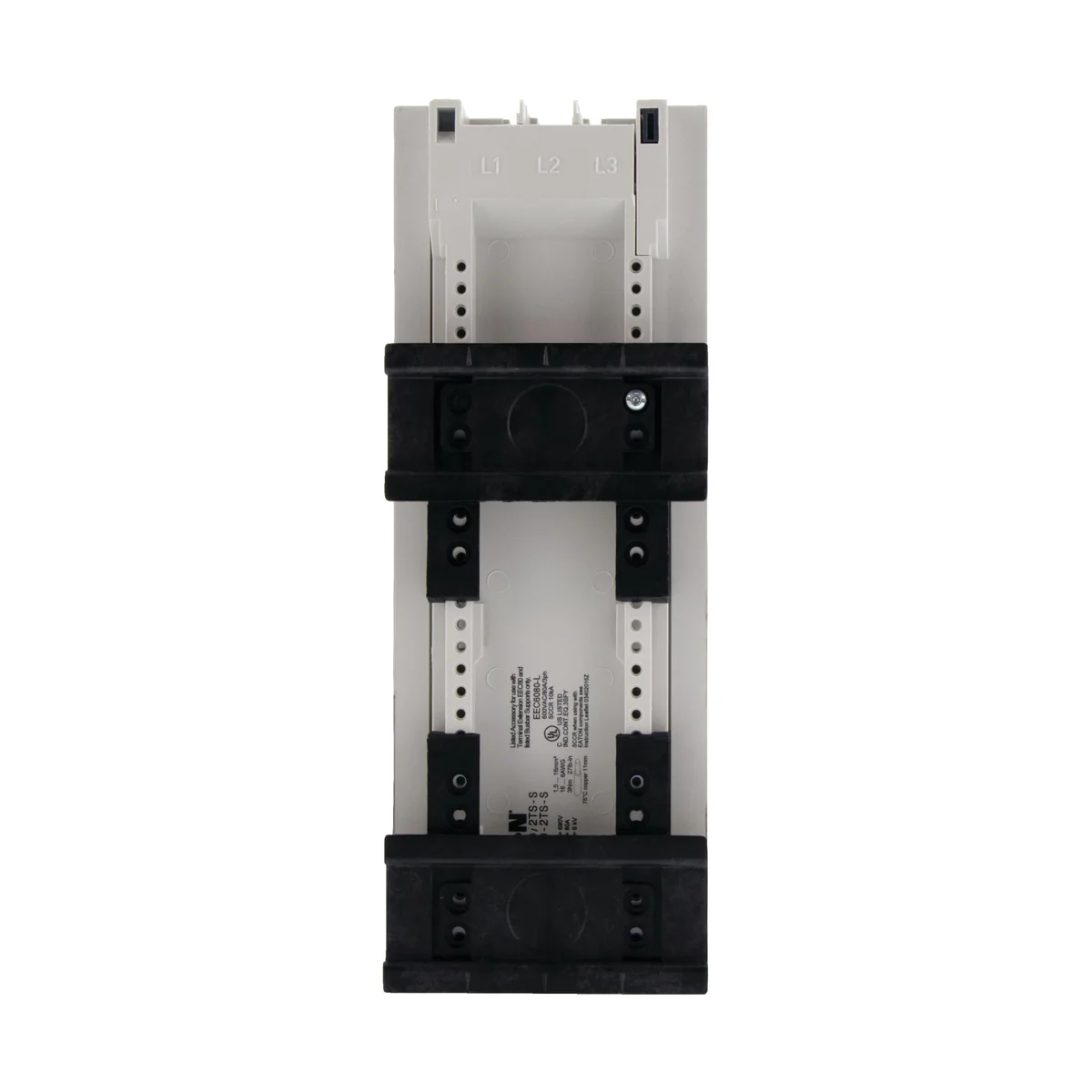

Rail adapters for xStart 80 A devices 116901

Name: Rail adapters for xStart 80 A devices
Brand: EATON
SKU: ALA412MOEL
Price: 128.34 PLN

local index:

ALA412MOEL

Catalog No:

116901

EAN code:

4015081166411

Click on the photo to enlarge

Manufacturer: EATON

Length [mm]: 35

Rated current [A]: 80

Adapter width [mm]: 72

See full description

Price:

128,34 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Universal adapter for 1-, 2- and 3-phase applications, not suitable without additional UL/CSA component. Approved according to UL 508. Suitable for mounting on CU flat bars with a bar center distance of 60 mm and a bar thickness of 5 mm to 10 mm.

Technical data

Length [mm]

35
Adapter width [mm]

72

Rated current [A]

80
Equipment

Two support rails

Other technical data

Mounting rail armament

2 mounting rails
Rated current In

80 A
Max. busbar thickness

10 mm
Rail width

35 mm

Type of electric connection

Screw connection
Min. busbar thickness

5 mm
Width of the adapter

72 mm
Busbar distance

60 mm

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	4 pcs.
Weight (kg)	0,400	1,600
Volume (m3)	0,001	0,005
Width (m)	0,074	0,180
Length (m)	0,202	0,220
Depth (m)	0,065	0,130
