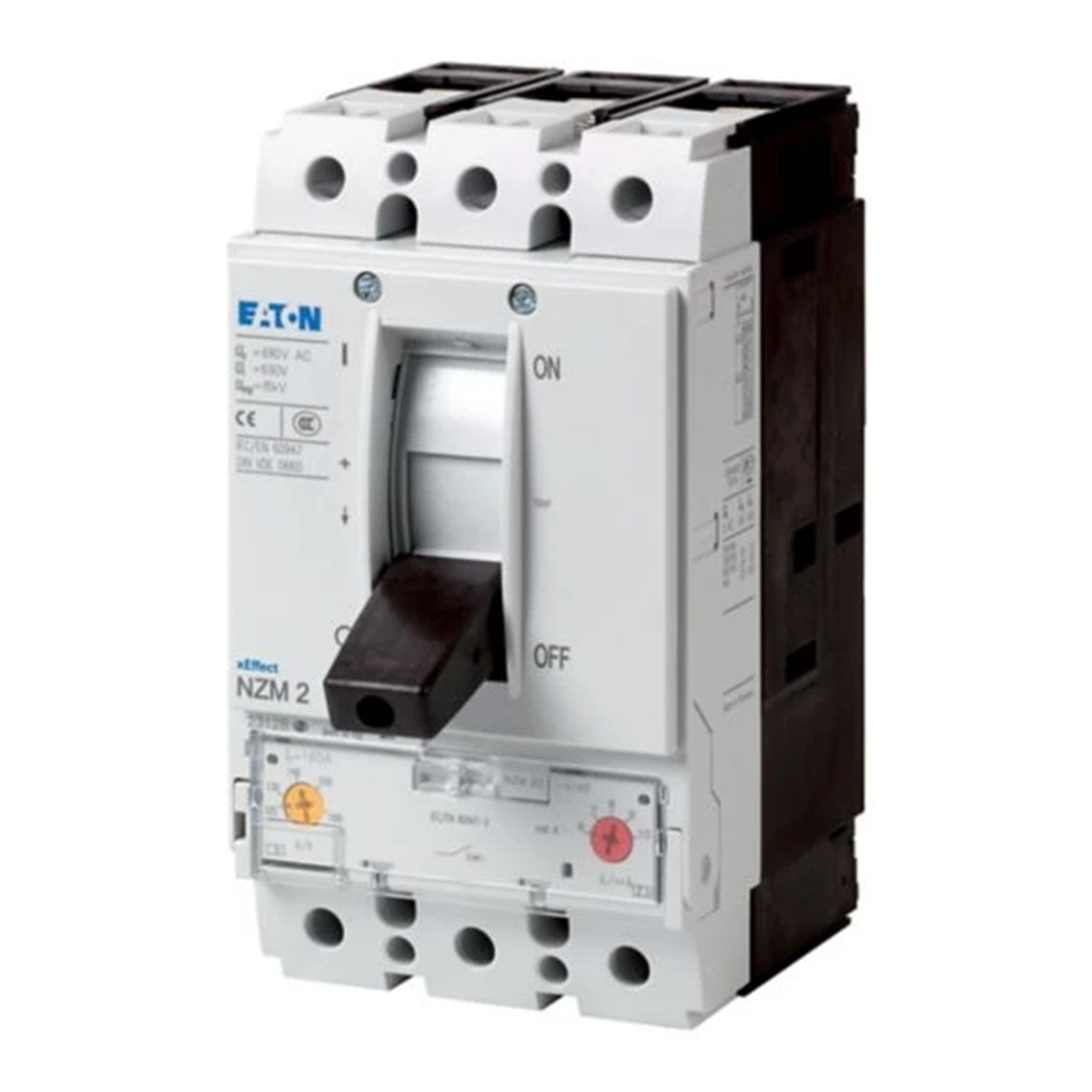

Power switch, NZMH2, 3-pole 300A 107577

local index:
ALM016MOEL
Catalog No:
107577
EAN code:
4015081072538
Manufacturer: EATON
Number of poles: 3
Installation: Constant
Standard: IEC
Price:
1713,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables

Technical data

  • Number of poles
    3
  • Standard
    IEC
  • Voltage Range [V]
    1000 - 1000
  • Installation
    Constant
  • Rated current [A]
    300
  • Switching capacity [kA]
    150

Other technical data

  • Rated permanent current Iu
    300 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    1000 ... 1000 V
  • Overload release current setting
    120 ... 300 A
  • Adjustment range undelayed short-circuit release
    1500 ... 12450 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,469
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,149
Depth (m) 0,184
