Automation
Circuit breakers, disconnectors
Switches up to 160A

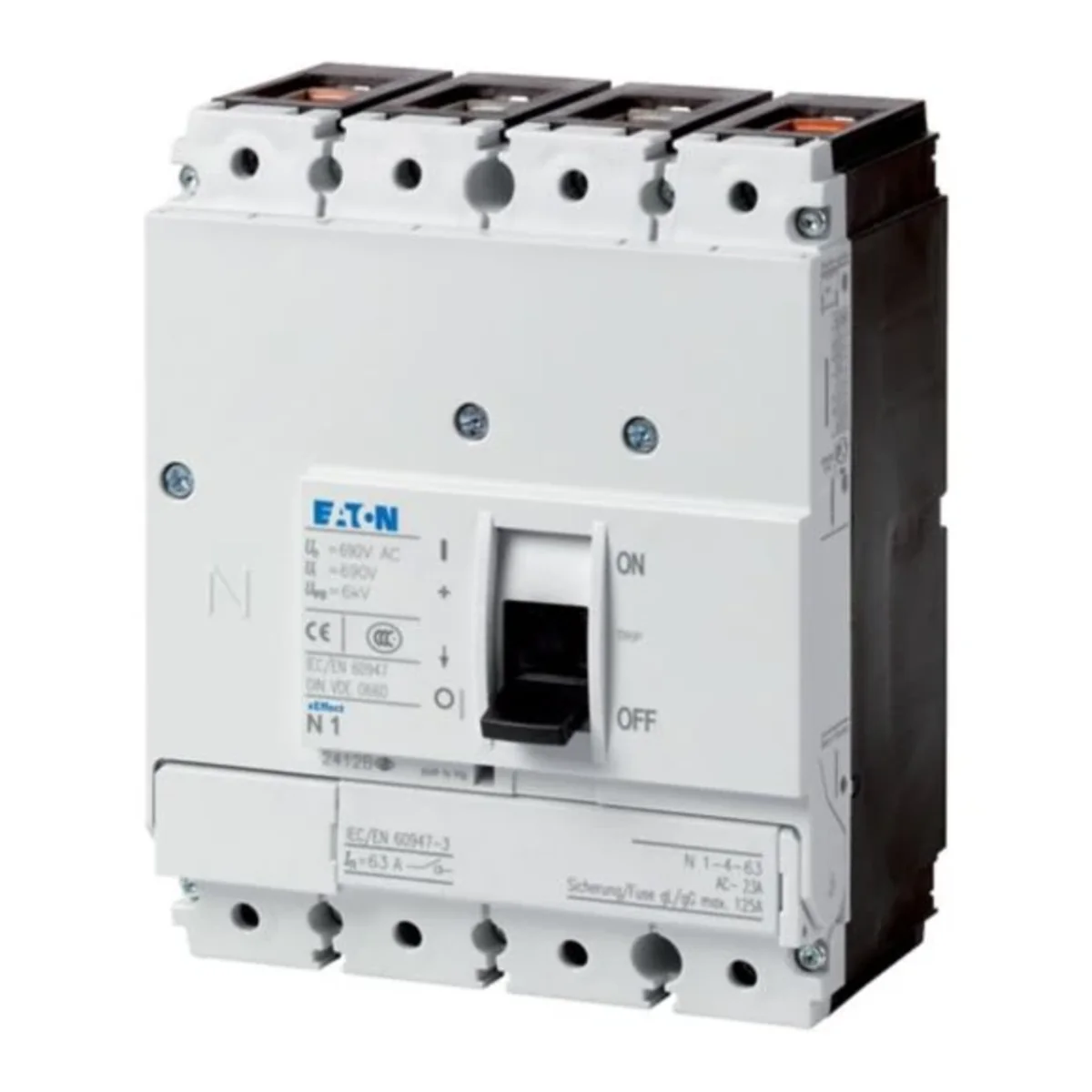

Power switch, N1-4-63 266002
local index:
ALI028MOEL
Catalog No:
266002
EAN code:
4015082660024
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
4
Rated current [A]:
63
See full description
Price:
278,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
4-pole power switch. 63A BG1
Technical data
Number of poles
4
Rated current [A]
63
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
63 A
Rated permanent current at AC-21, 400 V
0 A
Rated short-time withstand current lcw
2 kA
Switching power at 400 V
0 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
Yes
Voltage release optional
Yes
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
Yes
Type of control element
Rocker lever
Type of electrical connection of main circuit
Frame clamp
Version as maintenance-/service switch
Yes
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
0 A
Rated operation power at AC-3, 400 V
0 kW
Rated operation power at AC-23, 400 V
30 kW
Conditioned rated short-circuit current Iq
0 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Black
Interlockable
Yes
Degree of protection (IP), front side
IP20
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
1,126
Volume (m3)
0,002
Width (m)
0,120
Length (m)
0,088
Depth (m)
0,145
