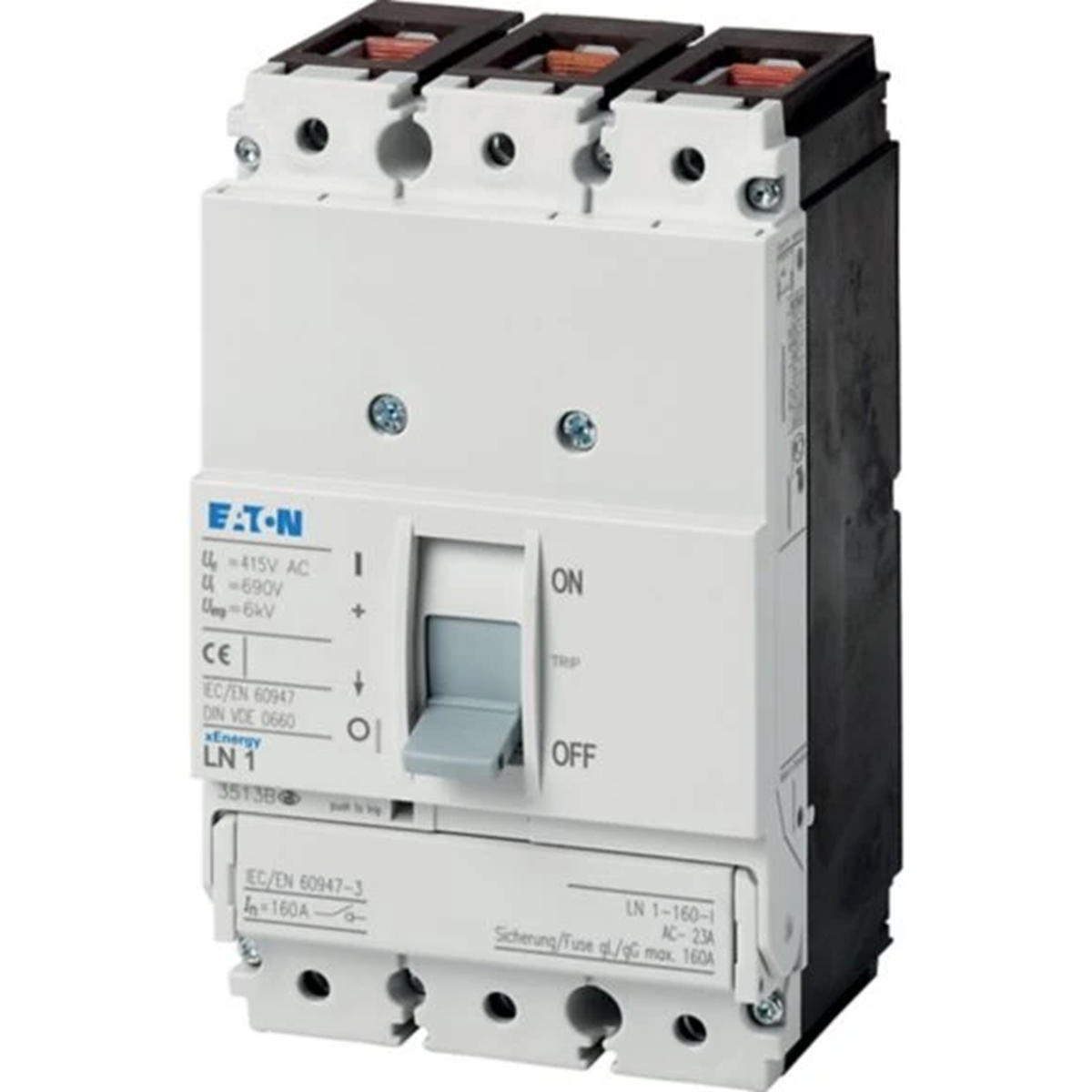

Power switch, LN1-100-I 111995

local index:
ALA222MOEL
Catalog No:
111995
EAN code:
4015081115433
Manufacturer: EATON
Number of poles: 3
Installation: On the TH-35 rail
Operating voltage [V]: 690
Price:
163,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Power disconnectors are used where the power reaches high values in order to protect other devices connected to the electrical network in order to avoid overvoltages and short circuits.

Power disconnector, LN1-100 -I has one pole and a rated current of 100A and is designed for mounting on a TH35 rail.



  • Optional shunt release: Yes


  • Rated continuous current Iu [A]: 100


  • Degree of protection (IP): IP20


  • Number of poles: 3


  • Maximum rated operating voltage Ue AC [V]: 690


  • As main switch: No


  • Type Main circuit connections: Box clamp


  • Optional motor drive: Yes


  • With locking mechanism: Yes

  • Device construction: Fixed device


  • Suitable for flush mounting: Yes

  • < li>
    Type of switching element: Lever

  • As compact switch: Yes

Technical data

  • Number of poles
    3
  • Operating voltage [V]
    690
  • Level of security
    IP20
  • Installation
    On the TH-35 rail
  • Rated current [A]
    100

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    2 kA
  • Switching power at 400 V
    0 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    Yes
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Frame clamp
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Rated permanent current Iu
    100 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    55 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,979
Volume (m3) 0,001
Width (m) 0,091
Length (m) 0,146
Depth (m) 0,090
