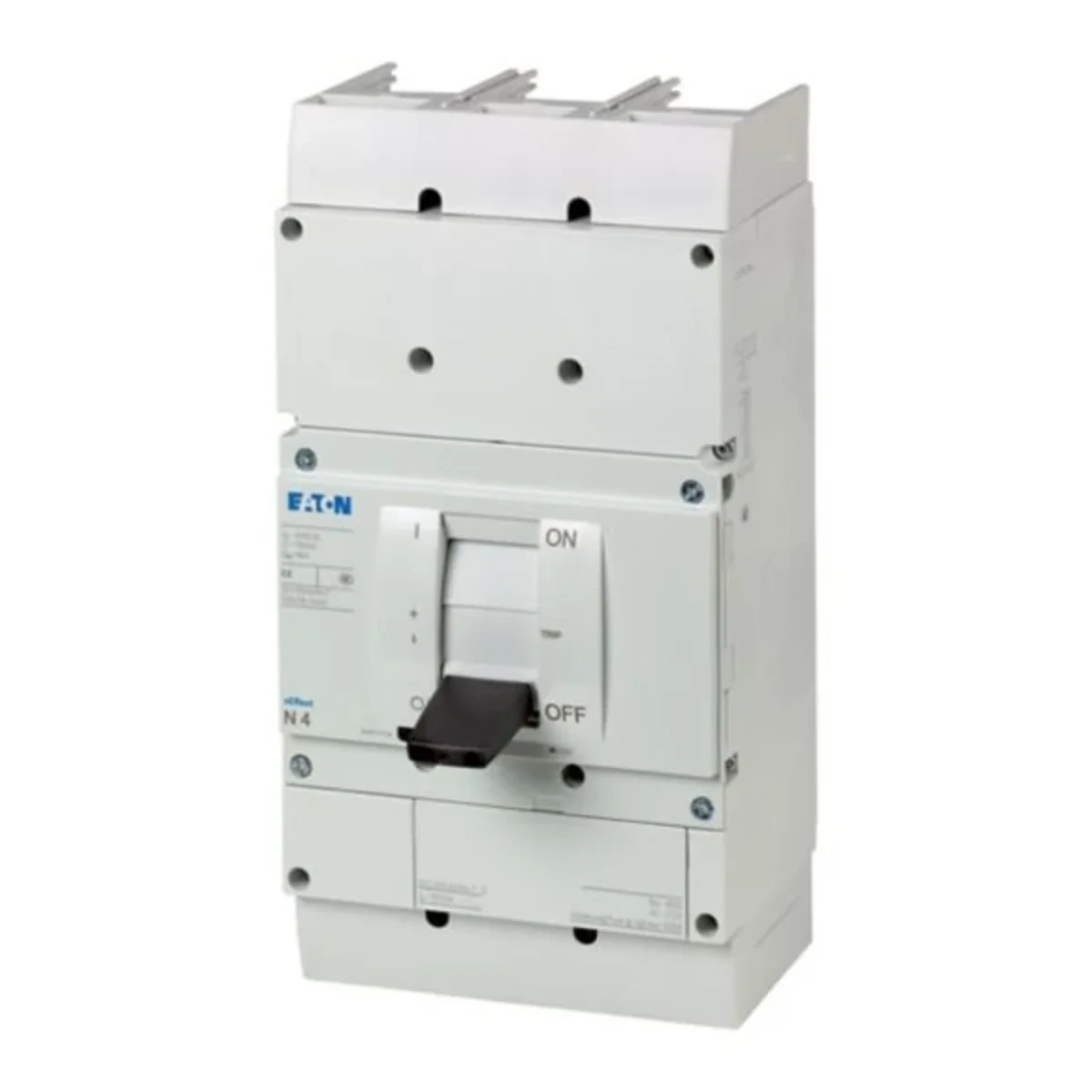

Power switch, 800A, N4-800 266025

local index:
ALM051MOEL
Catalog No:
266025
EAN code:
4015082660253
Manufacturer: EATON
Number of poles: 3
Connection: Screw
Rated current [A]: 800
Price:
1772,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Remote controlled with XU/XA shunt release, XR remote operator, to be equipped with trip indicator M22-K..

Technical data

  • Number of poles
    3
  • Rated current [A]
    800
  • Connection
    Screw

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current at AC-23, 400 V
    0 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    450 kW
  • Conditioned rated short-circuit current Iq
    0 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Black
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP20
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    25 kA
  • Switching power at 400 V
    0 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    yes
  • Voltage release optional
    yes
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Bolt connection

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 17,967
Volume (m3) 0,017
Width (m) 0,210
Length (m) 0,401
Depth (m) 0,207
