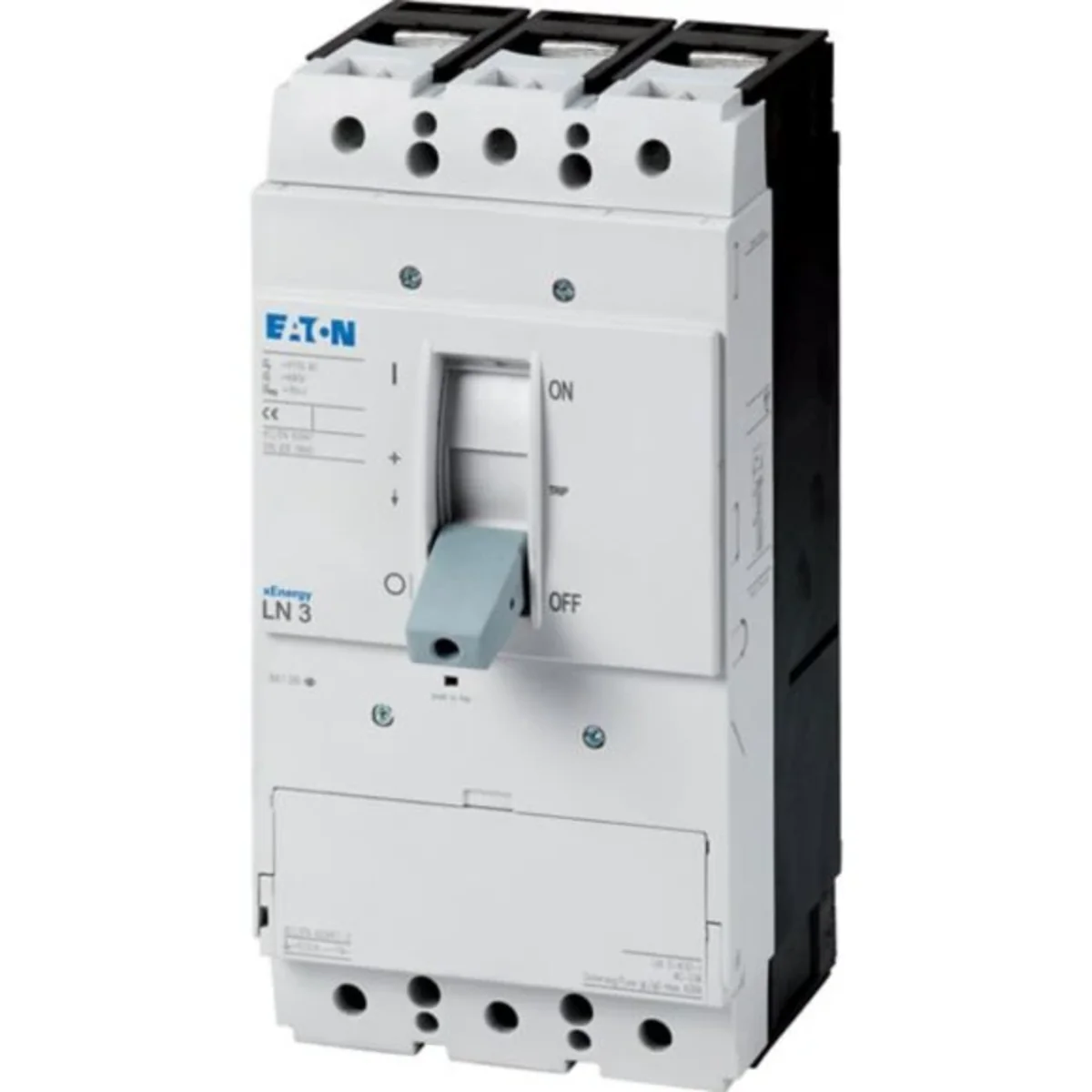

Power switch, 400A, LN3-400-I 112008
local index:
ALM040MOEL
Catalog No:
112008
EAN code:
4015081115563
Price:
592,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• Possibility of adding a shunt or undervoltage release
Technical data
-
Rated current [A]400
-
PKWIU27.12.24.0
-
Short-circuit protection [AgL]640
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw12 kA
-
Switching power at 400 V0 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu400 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V200 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 5,932 |
| Volume (m3) | 0,009 |
| Width (m) | 0,155 |
| Length (m) | 0,337 |
| Depth (m) | 0,165 |
