Power switch, 4-pole, 500A, 50kA, Installation and cable protection, fixed installation 109698

Name: Power switch, 4-pole, 500A, 50kA, Installation and cable protection, fixed installation
Brand: EATON
SKU: ALP037MOEL
Price: 1914.62 PLN

Indeks lokalny:

ALP037MOEL

Nr katalogowy:

109698

Kod EAN:

4015081092840

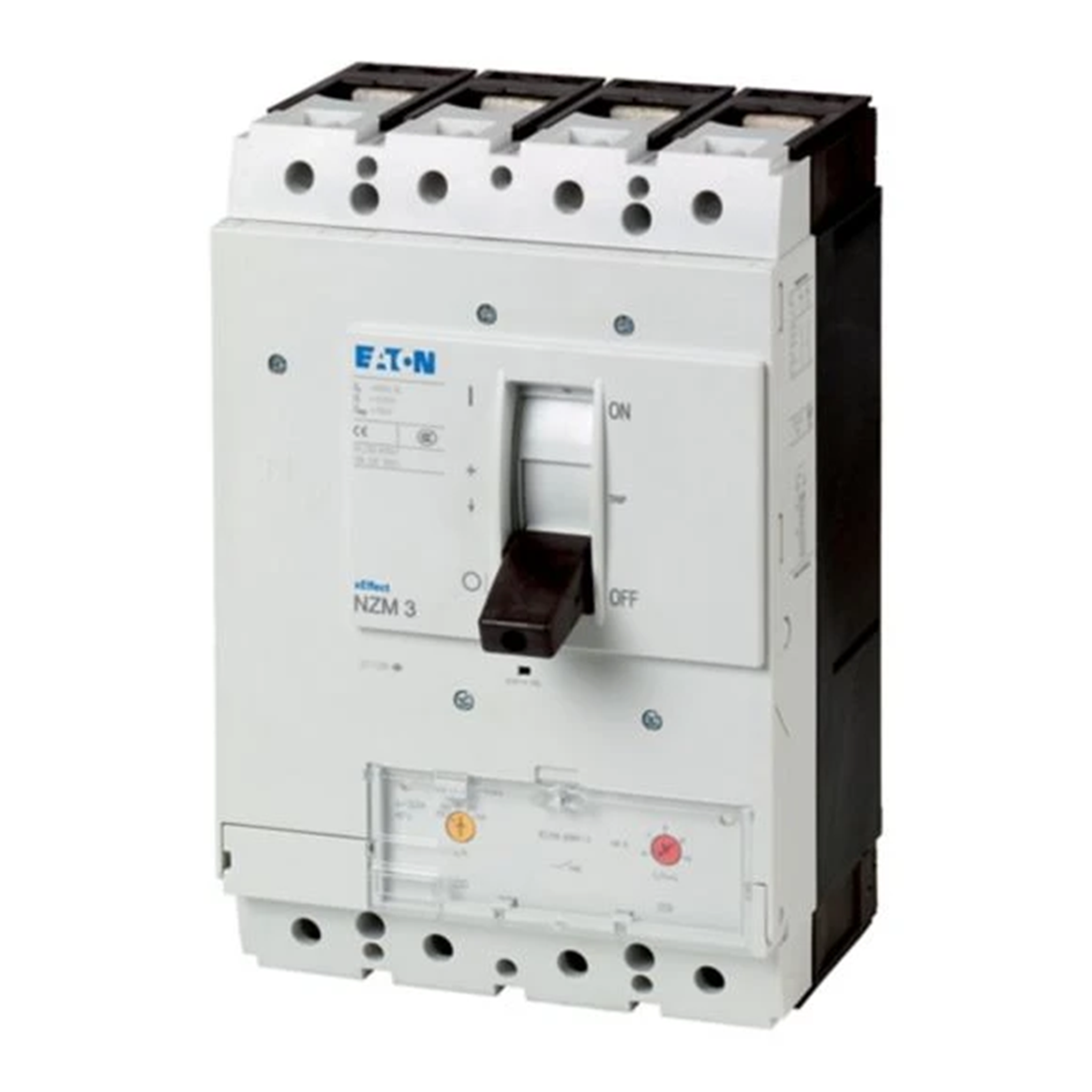

Power switch, 4-pole, 500A, 50kA, Installation and cable protection, fixed installation

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 4

Installation: Constant

Rated current [A]: 500

Zobacz cały opis

Cena:

1914,62 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.

Dane techniczne

Number of poles

4
Rated current [A]

500
PKWIU

27.12.24.0

Installation

Constant
Switching capacity [kA]

50

Pozostałe dane techniczne

Rated permanent current Iu

500 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

400 ... 500 A
Adjustment range undelayed short-circuit release

6 ... 10 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Dane producenta

Producent

Eaton Electric Sp. z o.o.
Adres

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia
Ilość	1 szt.
Waga (kg)	7,300
Objętość (m3)	0,008
Szerokość (m)	0,185
Długość (m)	0,166
Głębokość (m)	0,275
