Power switch, 4-pole, 320/200A, 150kA, Installation and cable protection, fixed installation 109701

Name: Power switch, 4-pole, 320/200A, 150kA, Installation and cable protection, fixed installation
Brand: EATON
SKU: ALP040MOEL
Price: 8456.34 PLN
Availability: BackOrder

Lokaler Index:

ALP040MOEL

Katalognummer:

109701

EAN-Code:

4015081092871

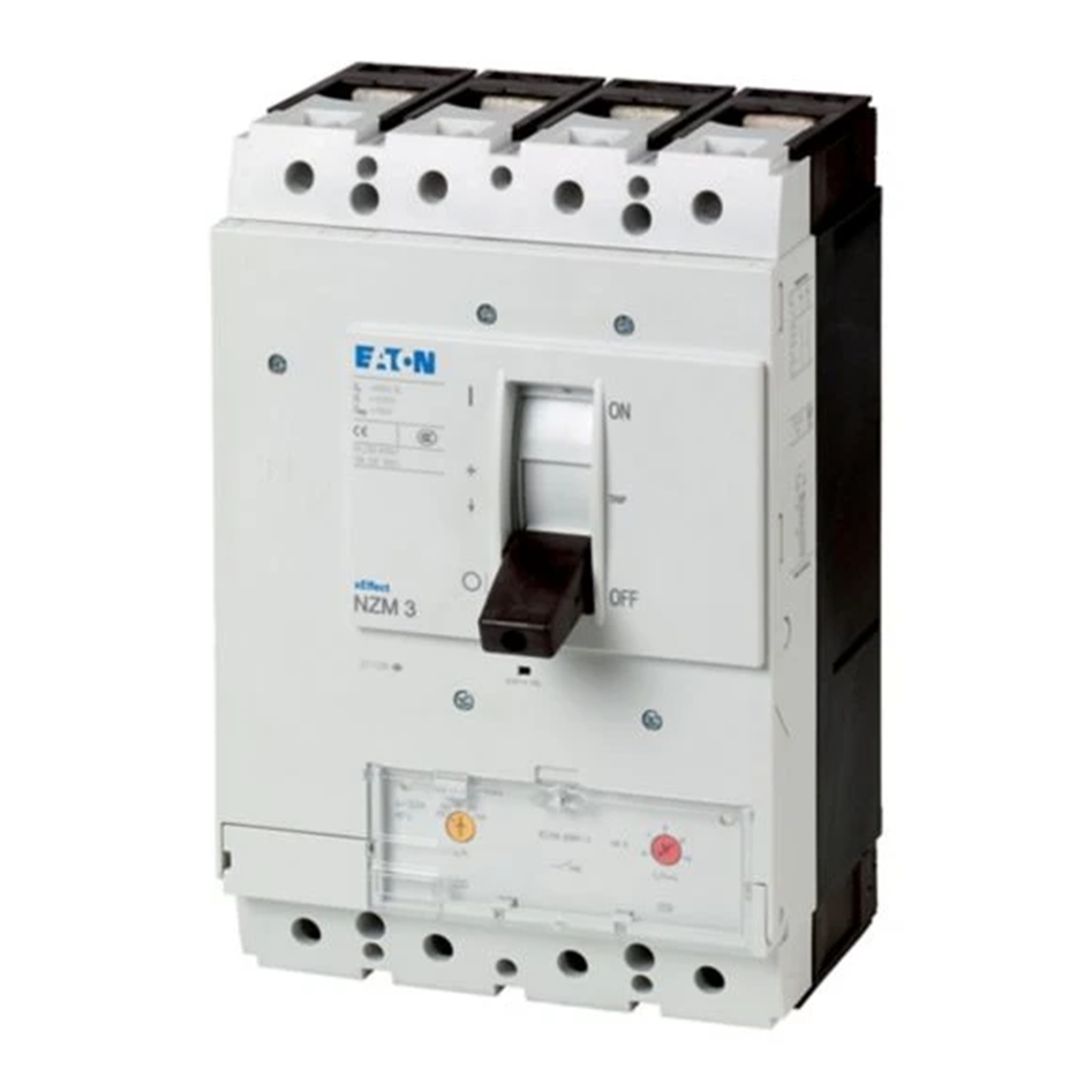

Power switch, 4-pole, 320/200A, 150kA, Installation and cable protection, fixed installation

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Number of poles: 4

Rated current [A]: 320

Switching capacity [kA]: 150

Siehe vollständige Beschreibung

Preis:

8 456,34 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables. Tips: The setting value in the neutral conductor is set synchronously to the setting value of the external conductor lr.

Technische Daten

Number of poles

4
Switching capacity [kA]

150

Rated current [A]

320
PKWIU

27.12.24.0

Weitere technische Daten

Rated permanent current Iu

320 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

250 ... 320 A
Adjustment range undelayed short-circuit release

1920 ... 19200 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton
Menge	1 stk.	1 stk.
Gewicht (kg)	7,300	7,300
Volumen (m3)	0,008	0,008
Breite (m)	0,187	0,185
Länge (m)	0,168	0,166
Tiefe (m)	0,277	0,275
