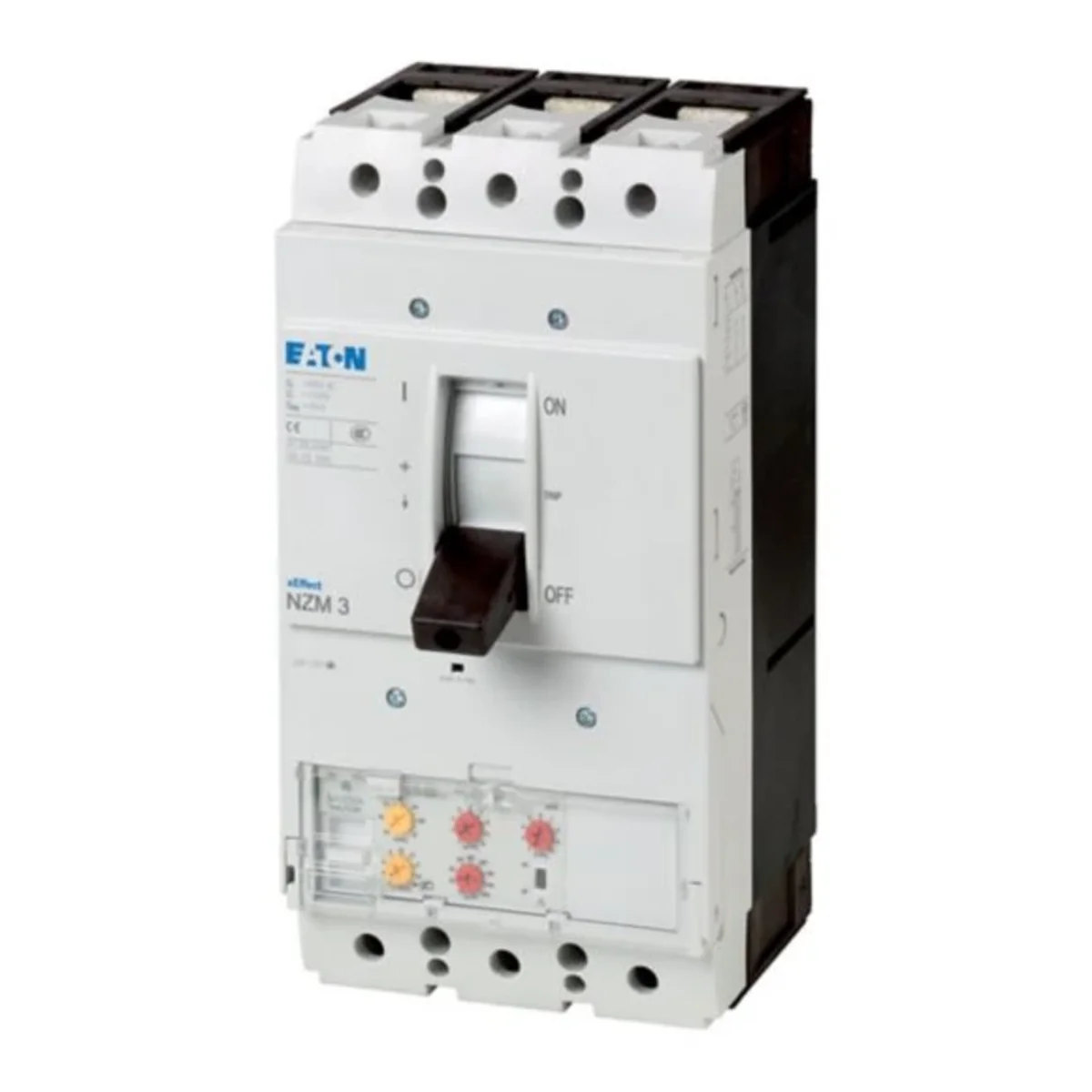

Power switch, 3-pole, 630A, 15kA, system, cable, selective and generator protection, fixed mounting, 1000 V 119368

local index:
ALP057MOEL
Catalog No:
119368
EAN code:
4015081175048
Manufacturer: EATON
Number of poles: 3
Installation: Constant
Operating voltage [V]: 1000
Price:
2603,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breakers of the NZM..-VE series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With electronic trip unit for plant and cable protection, selective and generator protection, time-delayed overload and time protection and non-delayed short-circuit protection. Tips: RMS and thermal memory measurement, adjustable time delay setting tr: 2-14 s at 6xIr and infinity (without overload release), adjustable delay time tsd: steps: 0, 20, 60, 100, 200, 300, 500, 750, 1000ms, i2t-constant function: switchable, connection type NZM4..S1: isolated bus connection (screw connection NZM4-XKS)

Technical data

  • Number of poles
    3
  • Operating voltage [V]
    1000
  • Switching capacity [kA]
    15
  • Installation
    Constant
  • Rated current [A]
    630

Other technical data

  • Rated permanent current Iu
    630 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150 kA
  • Adjustment range short-term delayed short-circuit release
    472 ... 4410 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    1000 ... 1000 V
  • Overload release current setting
    315 ... 630 A
  • Adjustment range undelayed short-circuit release
    1260 ... 5040 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 6,340
Volume (m3) 0,006
Width (m) 0,140
Length (m) 0,166
Depth (m) 0,275
