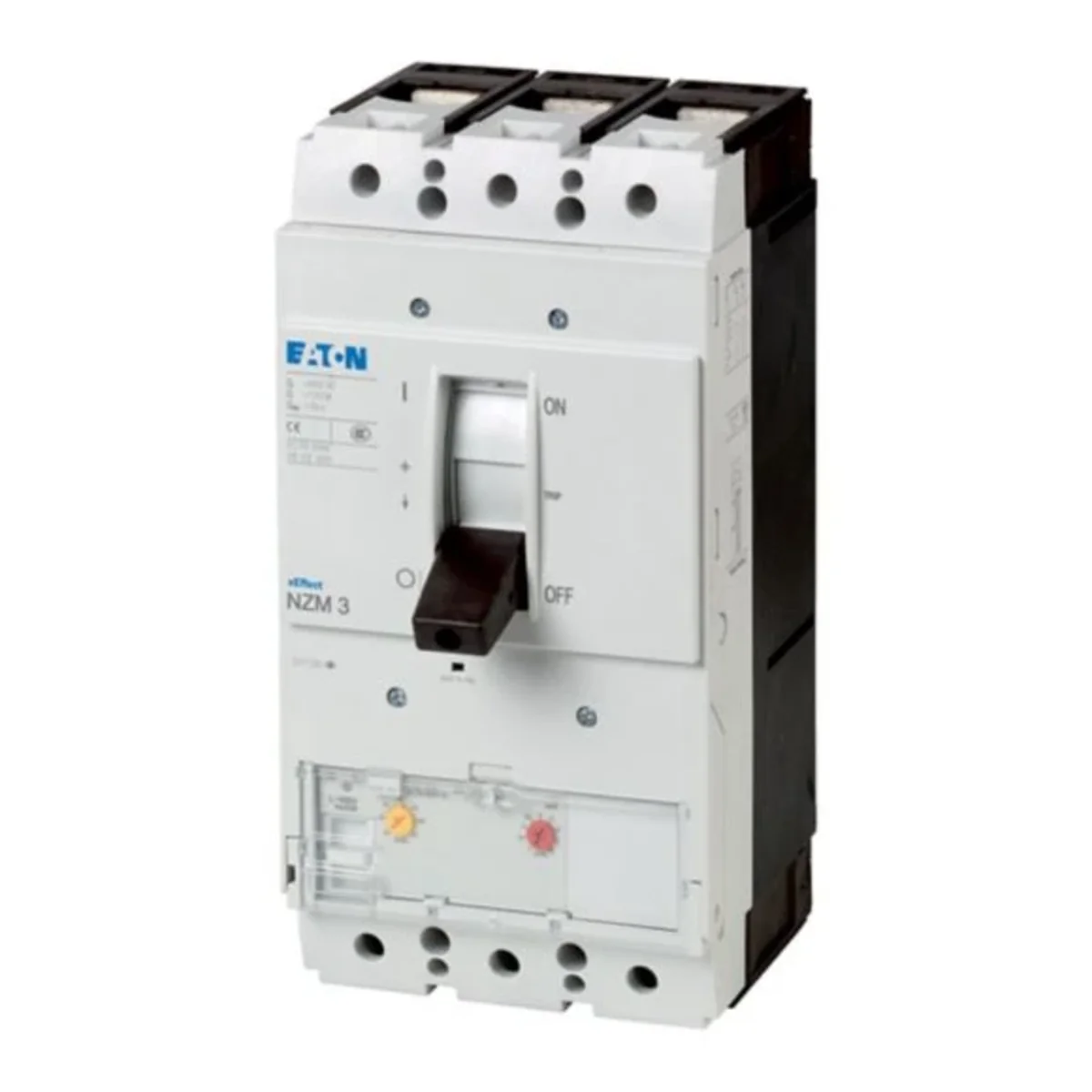

Power switch, 3-pole, 630A, 15kA, installation and cable protection, fixed mounting, 1000V 119363
local index:
ALP052MOEL
Catalog No:
119363
EAN code:
4015081174997
Price:
2402,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-AE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables.
Technical data
-
Number of poles3
-
Operating voltage [V]1000
-
Switching capacity [kA]15
-
InstallationConstant
-
Rated current [A]630
Other technical data
-
Rated permanent current Iu630 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage1000 ... 1000 V
-
Overload release current setting315 ... 630 A
-
Adjustment range undelayed short-circuit release1260 ... 5040 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 7,336 |
| Volume (m3) | 0,006 |
| Width (m) | 0,140 |
| Length (m) | 0,166 |
| Depth (m) | 0,275 |
