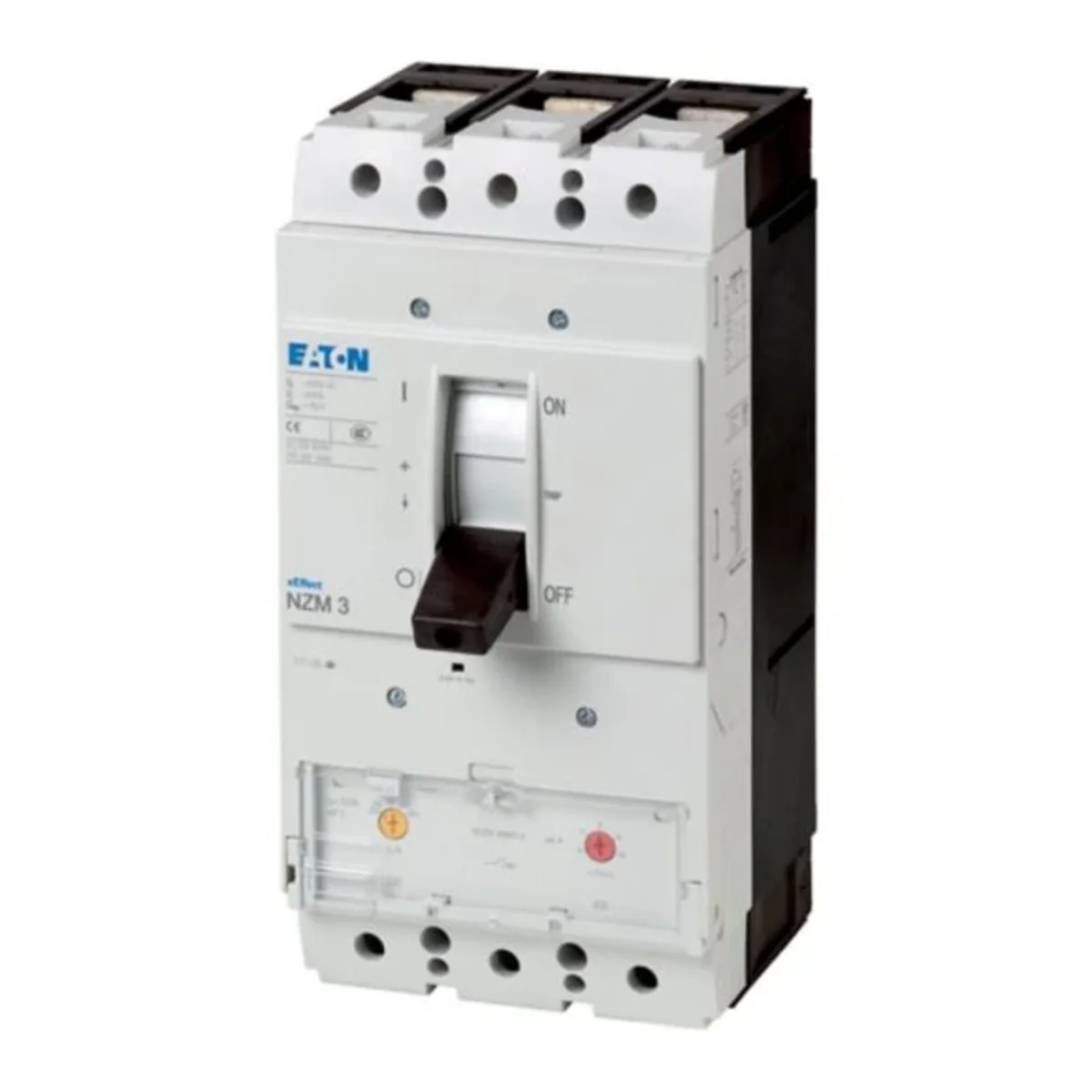

Power switch, 3-pole, 500A, 36kA, Protection of installations and cables 109667
local index:
ALP011MOEL
Catalog No:
109667
EAN code:
4015081092536
Price:
1534,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.
Technical data
-
Number of poles3
-
Switching capacity [kA]36
-
Rated current [A]500
Other technical data
-
Rated permanent current Iu500 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting400 ... 500 A
-
Adjustment range undelayed short-circuit release3000 ... 5000 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 5,800 | 5,800 |
| Volume (m3) | 0,006 | 0,006 |
| Width (m) | 0,140 | 0,140 |
| Length (m) | 0,166 | 0,166 |
| Depth (m) | 0,275 | 0,275 |
