Power switch, 3-pole, 500A, 150kA, Short-circuit protection 109687

Name: Power switch, 3-pole, 500A, 150kA, Short-circuit protection
Brand: EATON
SKU: ALP026MOEL
Price: 1951.12 PLN

local index:

ALP026MOEL

Catalog No:

109687

EAN code:

4015081092734

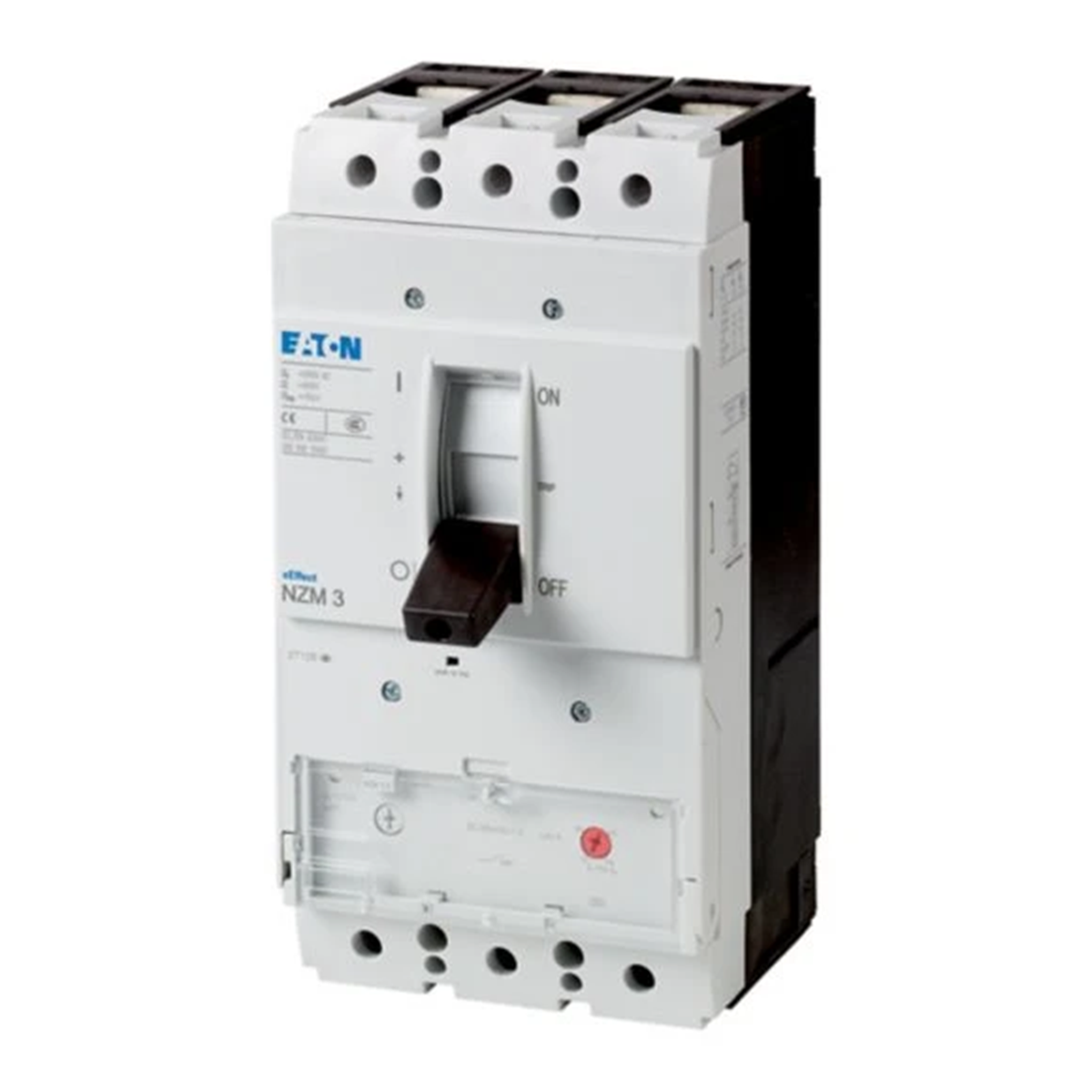

Power switch, 3-pole, 500A, 150kA, Short-circuit protection

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Rated current [A]: 500

Switching capacity [kA]: 150

See full description

Price:

1951,12 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Technical data

Number of poles

3
Switching capacity [kA]

150

Rated current [A]

500

Other technical data

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

500 A
Rated operation power at AC-3, 400 V

250 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

140 mm

Adjustment range undelayed short-circuit release

6 ... 10 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

160 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

130 kA
Height

275 mm
Depth

166 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	5,800	5,800
Volume (m3)	0,006	0,006
Width (m)	0,140	0,140
Length (m)	0,166	0,166
Depth (m)	0,275	0,275
