Power switch, 3-pole, 125A plug-in version 113731

Name: Power switch, 3-pole, 125A plug-in version
Brand: EATON
SKU: ALI304MOEL
Price: 389.15 PLN

Índice local:

ALI304MOEL

Número de catálogo:

113731

Código EAN:

4015081132713

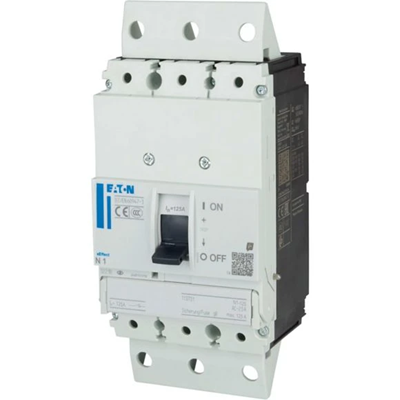

Power switch, 3-pole, 125A plug-in version

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 3

Installation: Plug, frame clamp

Level of security: IP20

Ver descripción completa

Precio:

389,15 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 4 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

N.. -.. switch disconnectors have features of disconnectors for grounded IT networks. Accessories such as connection kits, clamps and swivel brackets for the door coupling allow for individual assembly in various manifold systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Guidance: Main circuit breaker features including forcing according to IEC/EN 60204 and VDE 0113. Disconnection features according to IEC/EN 60947-3 and VDE 0660. Touch protection according to VDE 0160 part 100

Datos técnicos

Number of poles

3
Level of security

IP20
Rated operational power at AC-3, 400 V [kW]

55
PKWIU

27.12.24.0

Installation

Plug, frame clamp
Rated operating power for AC-23, 400 V [kW]

55
Maximum operating voltage [V]

690

Otros datos técnicos

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

125 A
Rated permanent current at AC-21, 400 V

0 A
Rated short-time withstand current lcw

2 kA
Switching power at 400 V

0 kW
Number of poles

3
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

Yes
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

Yes
Type of control element

Rocker lever
Type of electrical connection of main circuit

Frame clamp

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Number of switches

1
Rated operating voltage

690 ... 690 V
Rated permanent current at AC-23, 400 V

0 A
Rated operation power at AC-3, 400 V

0 kW
Rated operation power at AC-23, 400 V

55 kW
Conditioned rated short-circuit current Iq

0 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Built-in device plug-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Black
Interlockable

Yes
Degree of protection (IP), front side

IP20

Detalles del fabricante

Fabricante

EATON Electric Sp. z o.o.
Dirección

80-299 Gdańsk ul. Galaktyczna 30
NIF

5841022327

Empaquetado a granel

una especie de paquete	Skrzynia
Cantidad	1 uds.
Peso (kg)	1,024
Volumen (m3)	0,002
Ancho (m)	0,095
Longitud (m)	0,090
Profundidad (m)	0,201
