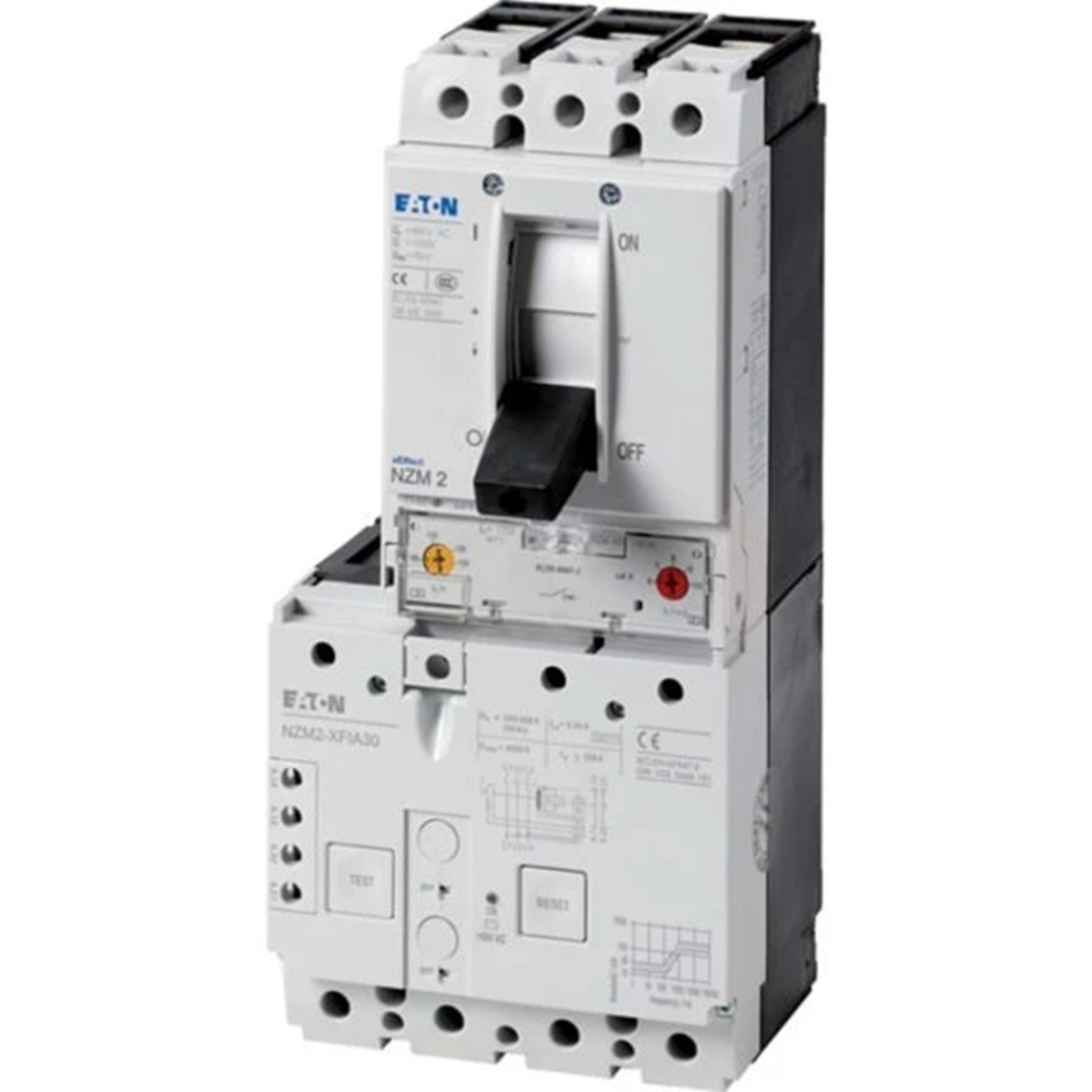

Power coupler, 3-pole, 200A, 150kA, robust design, +residual current protection, 30mA, universal 116305
local index:
ALP046MOEL
Catalog No:
116305
EAN code:
4015081160457
Price:
4000,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables. Notes: Not UL/CSA approved, suitable for use in three-phase systems, internal power supply Ue = 50 - 400 V, universal based on summation current principle in the fault current frequency range 0 - 100 kHz, ready-to-connect set of high performance circuit breaker and protection module overcurrent
Technical data
-
Number of poles3
-
Rated current [A]200
-
InstallationConstant
-
Switching capacity [kA]150
Other technical data
-
Rated permanent current Iu200 A
-
Overload release current setting160 ... 200 A
-
Adjustment range undelayed short-circuit release1200 ... 2000 A
-
Type of electrical connection of main circuitFrame clamp
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 5,680 |
| Volume (m3) | 0,006 |
| Width (m) | 0,140 |
| Length (m) | 0,293 |
| Depth (m) | 0,145 |
