Power coupler, 3-pole, 160A, 150kA, heavy-duty design, +residual current protection, 30mA, universal 116304

Name: Power coupler, 3-pole, 160A, 150kA, heavy-duty design, +residual current protection, 30mA, universal
Brand: EATON
SKU: ALP045MOEL
Price: 14073.73 PLN
Availability: BackOrder

Índice local:

ALP045MOEL

Número de catálogo:

116304

Código EAN:

4015081160440

Power coupler, 3-pole, 160A, 150kA, heavy-duty design, +residual current protection, 30mA, universal

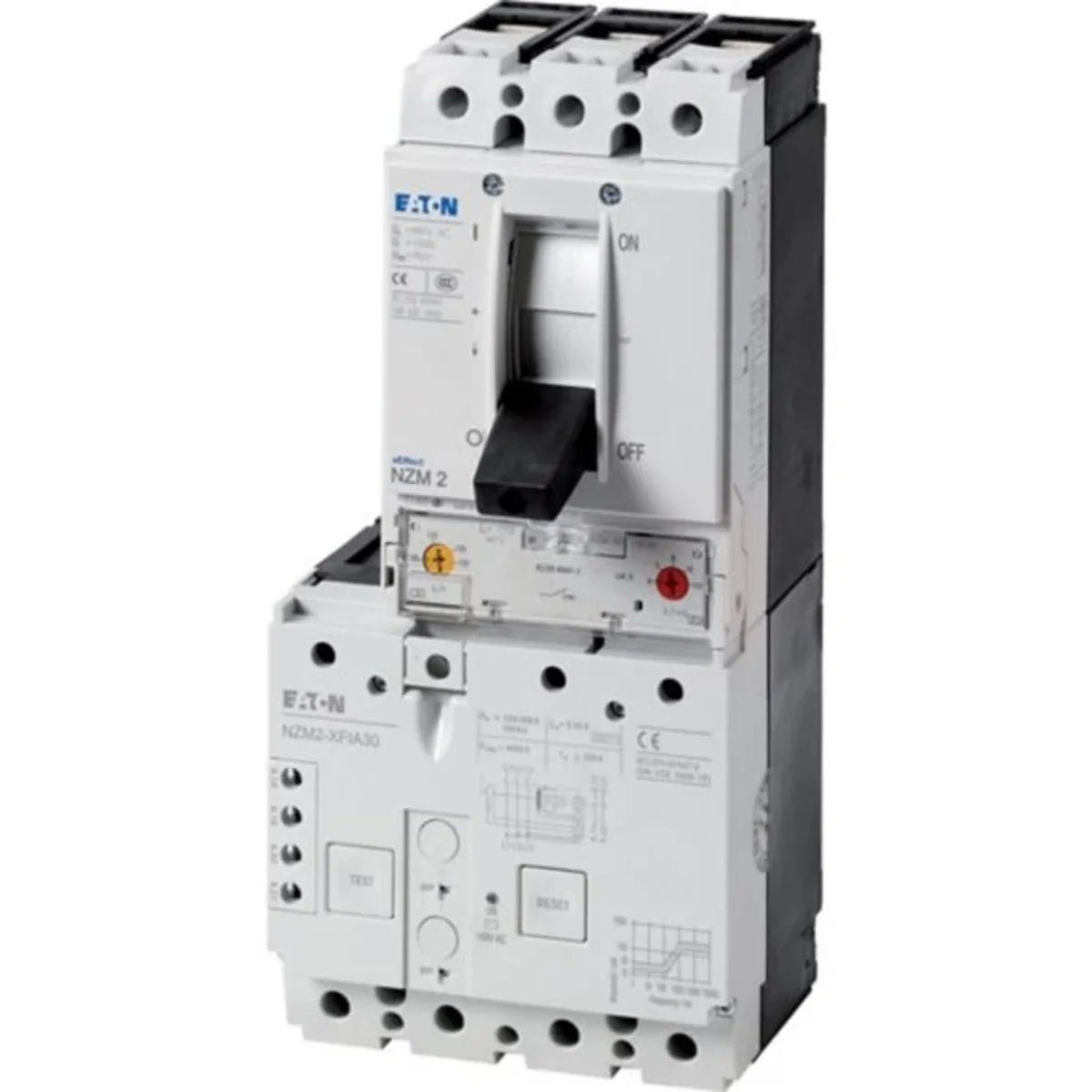

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 3

Installation: Constant

Rated current [A]: 160

Ver descripción completa

Precio:

14 073,73 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables. Notes: Not UL/CSA approved, suitable for use in three-phase systems, internal power supply Ue = 50 - 400 V, universal based on summation current principle in the fault current frequency range 0 - 100 kHz, ready-to-connect set of high performance circuit breaker and protection module overcurrent

Datos técnicos

Number of poles

3
Rated current [A]

160
PKWIU

31.50.34-02

Installation

Constant
Switching capacity [kA]

150

Otros datos técnicos

Rated permanent current Iu

160 A
Overload release current setting

125 ... 160 A
Adjustment range undelayed short-circuit release

960 ... 1600 A
Type of electrical connection of main circuit

Frame clamp
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton
Cantidad	1 uds.	1 uds.
Peso (kg)	5,580	5,680
Volumen (m3)	0,006	0,006
Ancho (m)	0,142	0,140
Longitud (m)	0,295	0,293
Profundidad (m)	0,147	0,145
