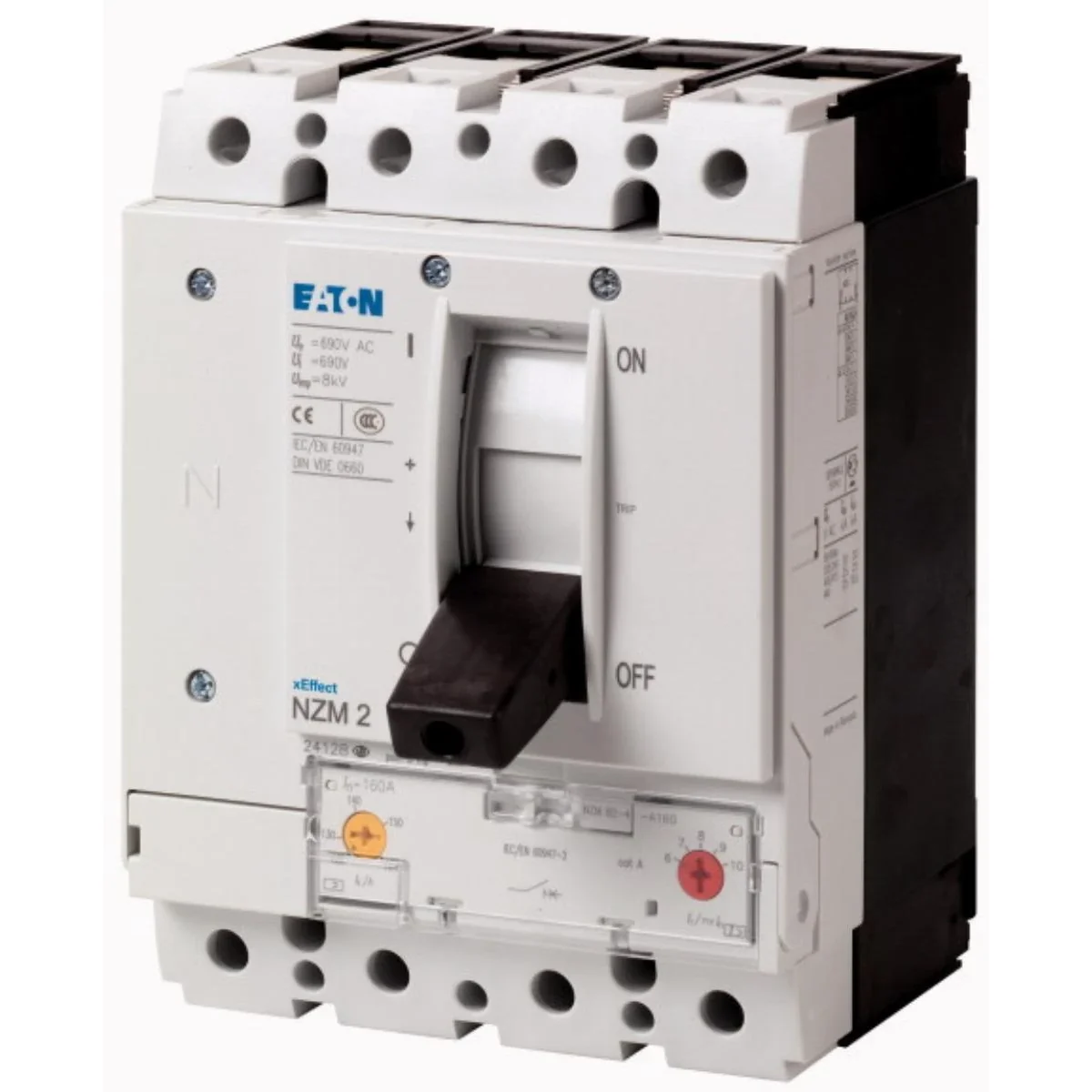

Power circuit breaker, NZMC2-4-A250 271438
Lokaler Index:
ALM007MOEL
Katalognummer:
271438
EAN-Code:
4015082714383
Preis:
5 419,96 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

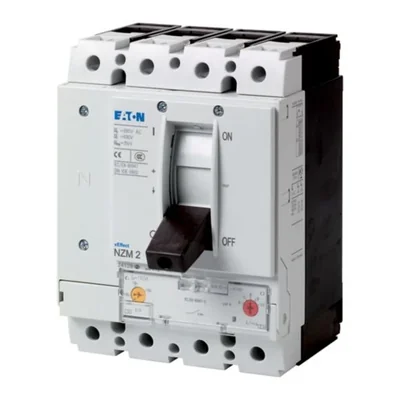

Power circuit breaker, NZMC2-4-A250
Technische Daten
-
Number of poles4
-
Rated current [A]250
Weitere technische Daten
-
Rated permanent current Iu250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage690 ... 690 V
-
Overload release current setting200 ... 250 A
-
Adjustment range undelayed short-circuit release1500 ... 2500 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles4
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Karton | Skrzynia | Karton |
| Menge | 1 stk. | 1 stk. | 1 stk. | 1 stk. |
| Gewicht (kg) | 3,000 | 3,125 | 3,000 | 3,125 |
| Volumen (m3) | 0,004 | 0,004 | 0,004 | 0,004 |
| Breite (m) | 0,142 | 0,140 | 0,142 | 0,140 |
| Länge (m) | 0,151 | 0,149 | 0,151 | 0,149 |
| Tiefe (m) | 0,186 | 0,184 | 0,186 | 0,184 |
