Power circuit breaker, LZMC1-A80-I 111894
local index:
ALP050MOEL
Catalog No:
111894
EAN code:
4015081114429
Manufacturer:
EATON
Rated current [A]: 80
Price:
189,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

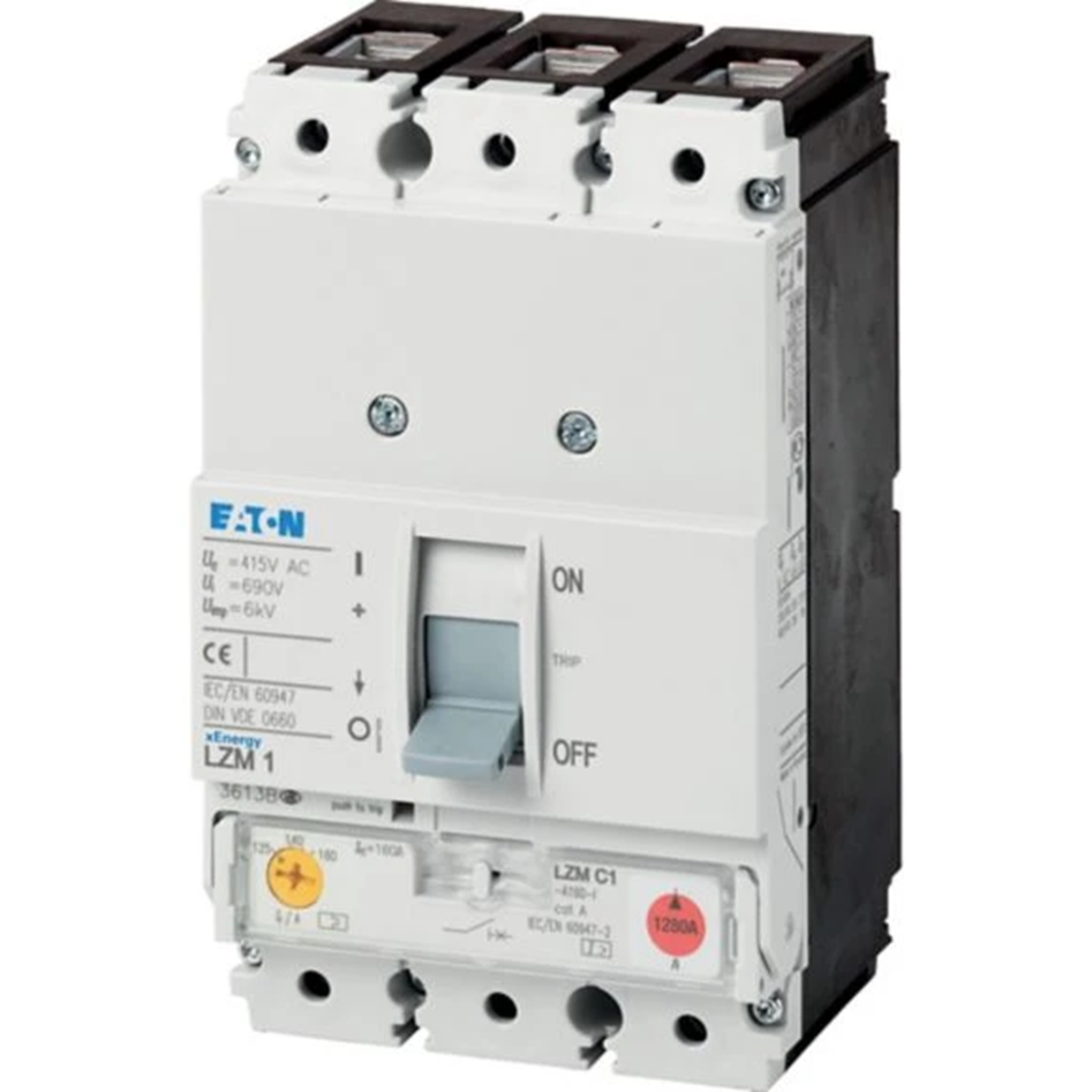

Power circuit breaker, LZMC1-A80-I
Technical data
-
Rated current [A]80
Other technical data
-
Rated permanent current Iu80 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting63 ... 80 A
-
Adjustment range undelayed short-circuit release480 ... 800 A
-
Type of electrical connection of main circuitFrame clamp
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Z wyzwalaczem podnapięciowymNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,014 | 1,064 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,090 | 0,095 |
| Length (m) | 0,088 | 0,150 |
| Depth (m) | 0,145 | 0,095 |
