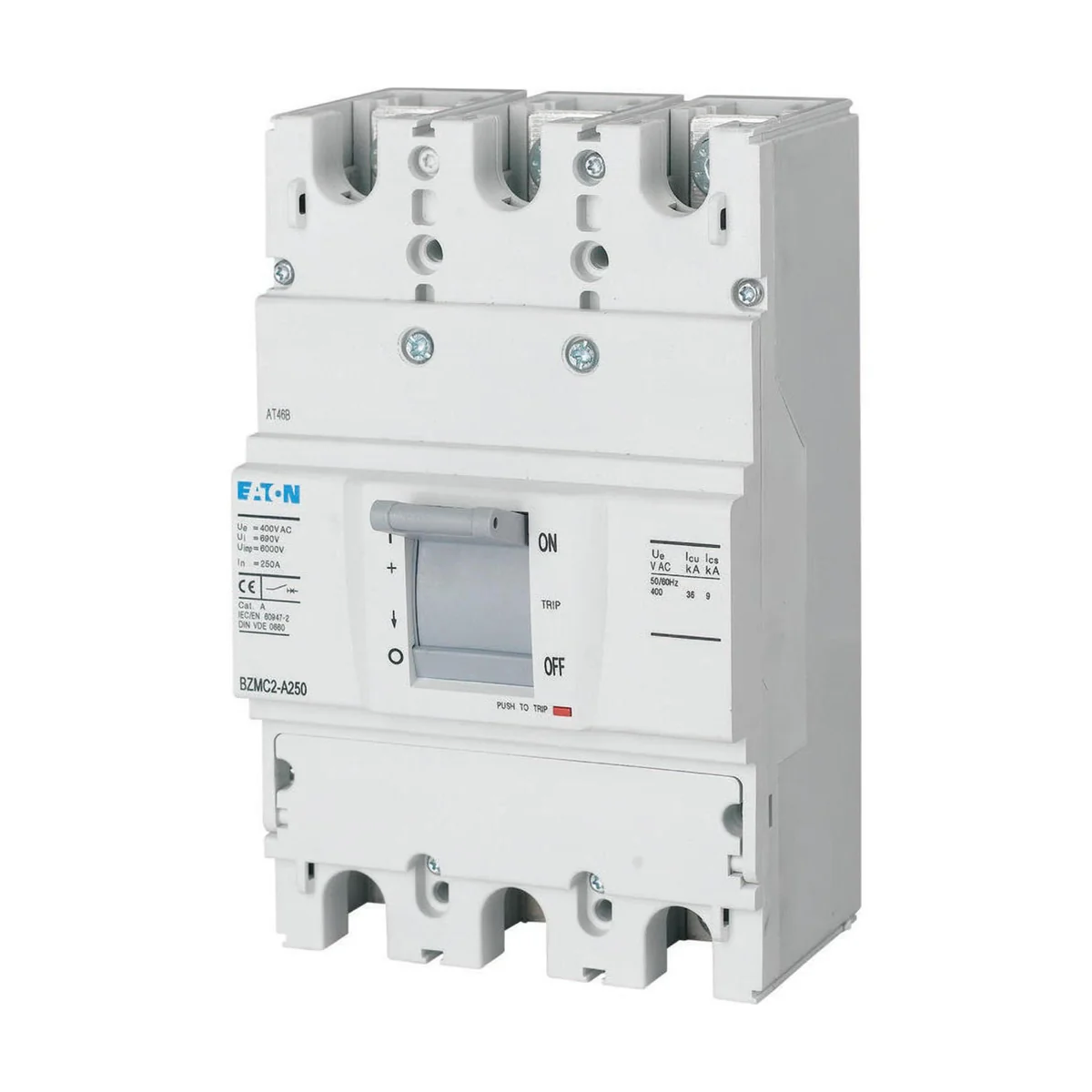

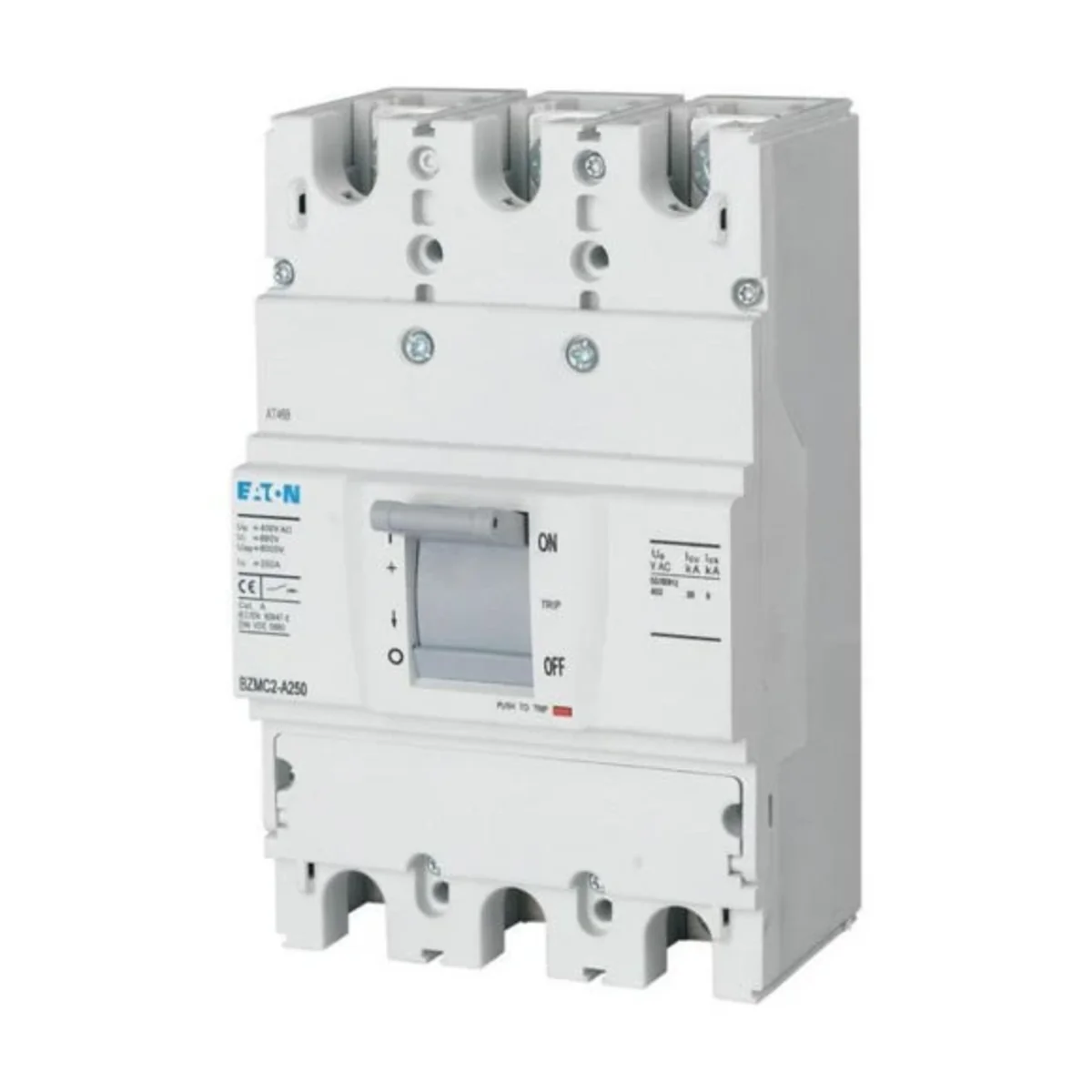

Power circuit breaker BZM 250A (25kA) 116972
Lokaler Index:
ALM239MOEL
Katalognummer:
116972
EAN-Code:
4015081167128
Preis:
4 660,81 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
BZM power circuit breaker with a rated current of 250A and a switching capacity of 25kA
Technische Daten
-
Rated current [A]250
-
Switching capacity [kA]25
Weitere technische Daten
-
Rated permanent current Iu250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz25 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage415 ... 415 V
-
Overload release current setting0 ... 0 A
-
Adjustment range undelayed short-circuit release1400 ... 2100 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Z wyzwalaczem podnapięciowymNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalNo
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Karton |
| Menge | 1 stk. | 6 stk. |
| Gewicht (kg) | 1,500 | 9,338 |
| Volumen (m3) | 0,002 | 0,017 |
| Breite (m) | 0,106 | 0,235 |
| Länge (m) | 0,175 | 0,385 |
| Tiefe (m) | 0,105 | 0,190 |
