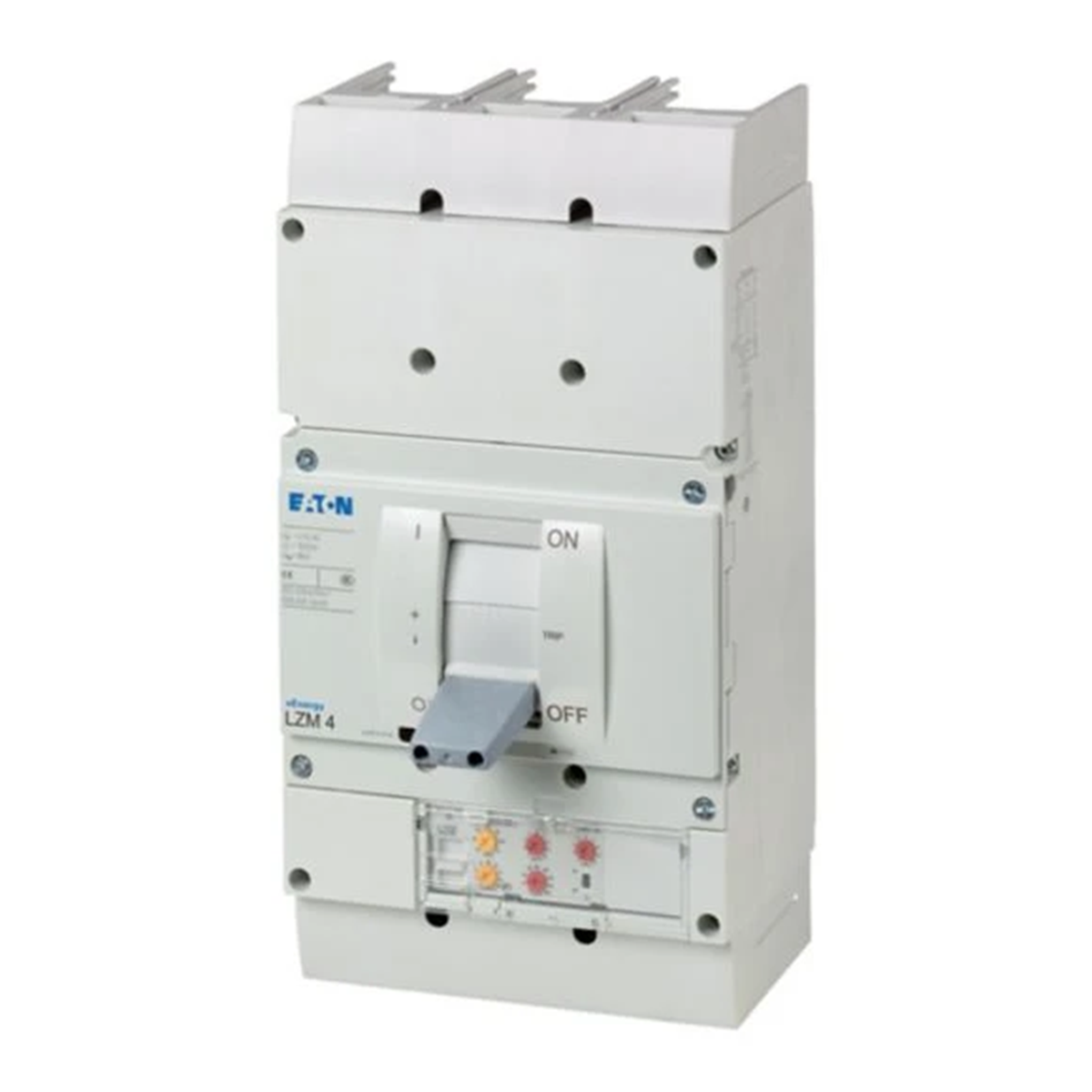

Power circuit breaker, 800A, LZMN4-AE800-I 111978

local index:
ALM041MOEL
Catalog No:
111978
EAN code:
4015081115266
Manufacturer: EATON
Instantaneous short-circuit release [A]: 1600-9600
Number of poles: 1
Rated current [A]: 800
Price:
2068,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

• Switching capacity 36 kA or 50 kA
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• Possibility of adding a shunt or undervoltage release

Technical data

  • Instantaneous short-circuit release [A]
    1600-9600
  • Rated current [A]
    800
  • Switching capacity [kA]
    50
  • Number of poles
    1
  • Overload release [A]
    400-800

Other technical data

  • Rated permanent current Iu
    800 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    no
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    no
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    no
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    no
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    400 ... 800 A
  • Adjustment range undelayed short-circuit release
    1600 ... 9600 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    no
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Z wyzwalaczem podnapięciowym
    no
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    yes
  • Motor drive optional
    yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 19,995
Volume (m3) 0,026
Width (m) 0,260
Length (m) 0,420
Depth (m) 0,240
