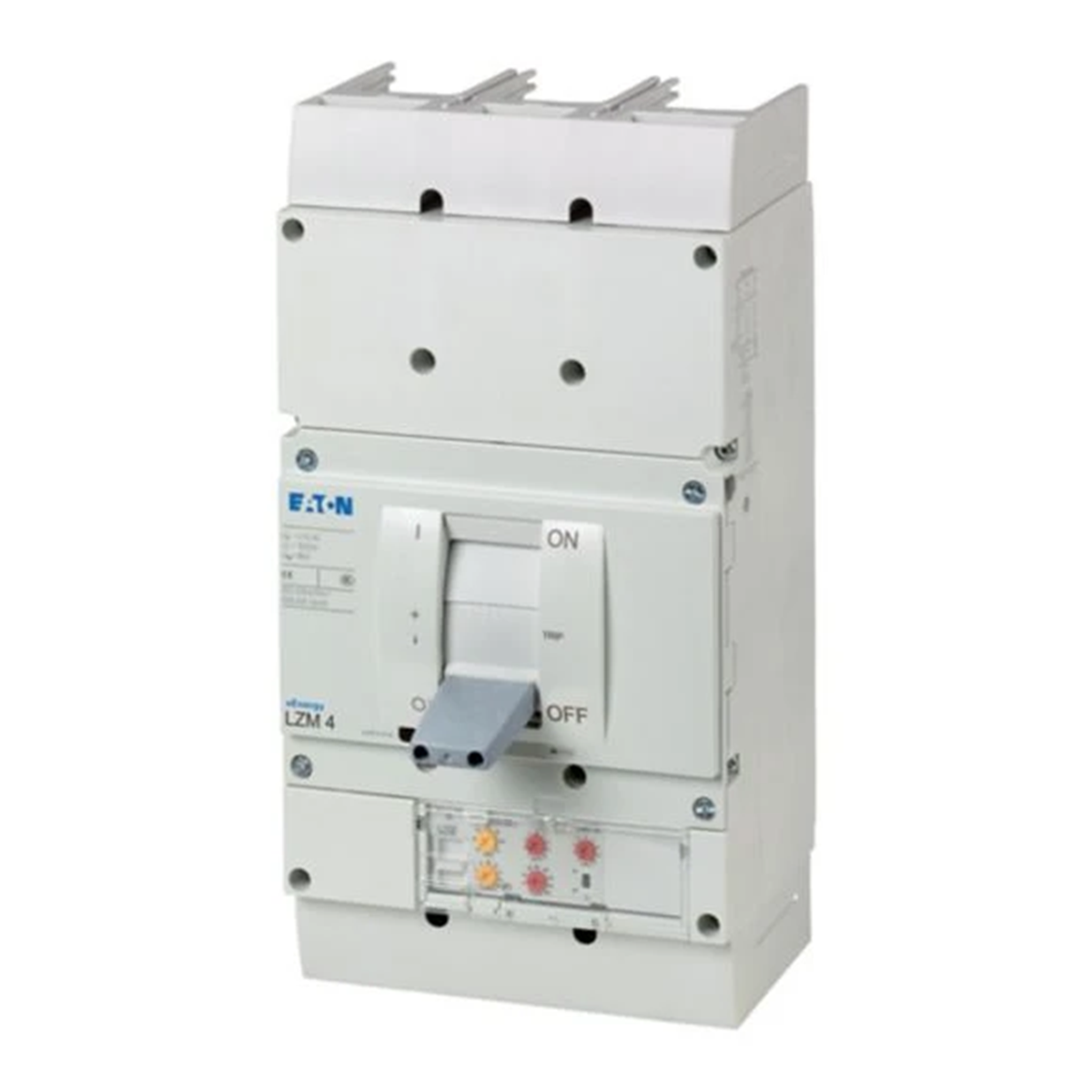

Power circuit breaker, 1250A, LZMN4-AE1250-I 111980
local index:
ALM035MOEL
Catalog No:
111980
EAN code:
4015081115280
Manufacturer:
EATON
Instantaneous short-circuit release [A]: 2500-15000
Number of poles: 1
Rated current [A]: 1250
Price:
3335,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• Switching capacity 36 kA or 50 kA
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• Possibility of adding a shunt or undervoltage release
• Adjustable overload releases
• Adjustable instantaneous short-circuit releases
• Possibility of adding a shunt or undervoltage release
Technical data
-
Instantaneous short-circuit release [A]2500-15000
-
Rated current [A]1250
-
Switching capacity [kA]50
-
Number of poles1
-
Overload release [A]630-1250
Other technical data
-
Rated permanent current Iu1250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting630 ... 1250 A
-
Adjustment range undelayed short-circuit release2500 ... 15000 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Z wyzwalaczem podnapięciowymNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 19,000 | 19,995 |
| Volume (m3) | 0,017 | 0,026 |
| Width (m) | 0,210 | 0,240 |
| Length (m) | 0,401 | 0,420 |
| Depth (m) | 0,207 | 0,260 |
