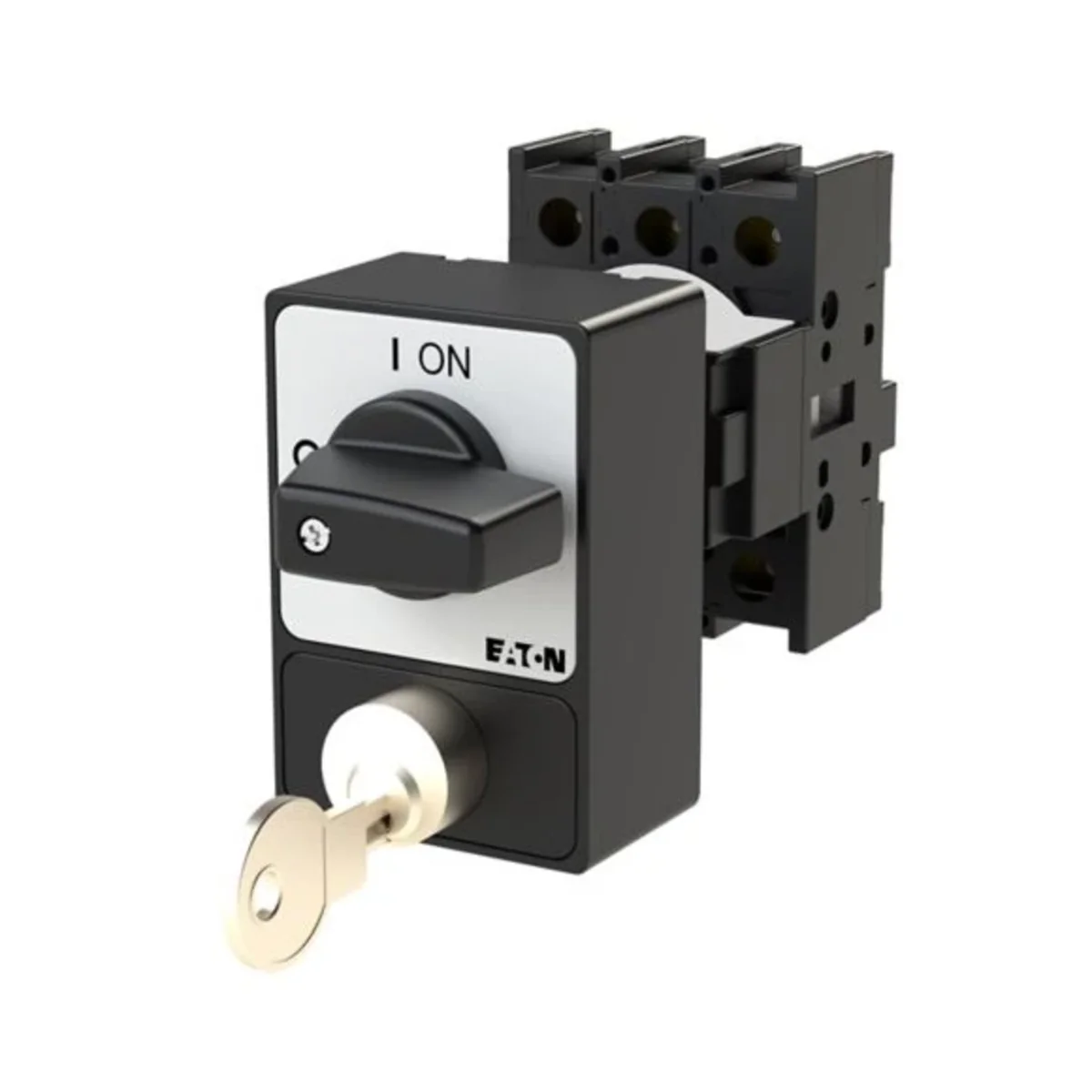

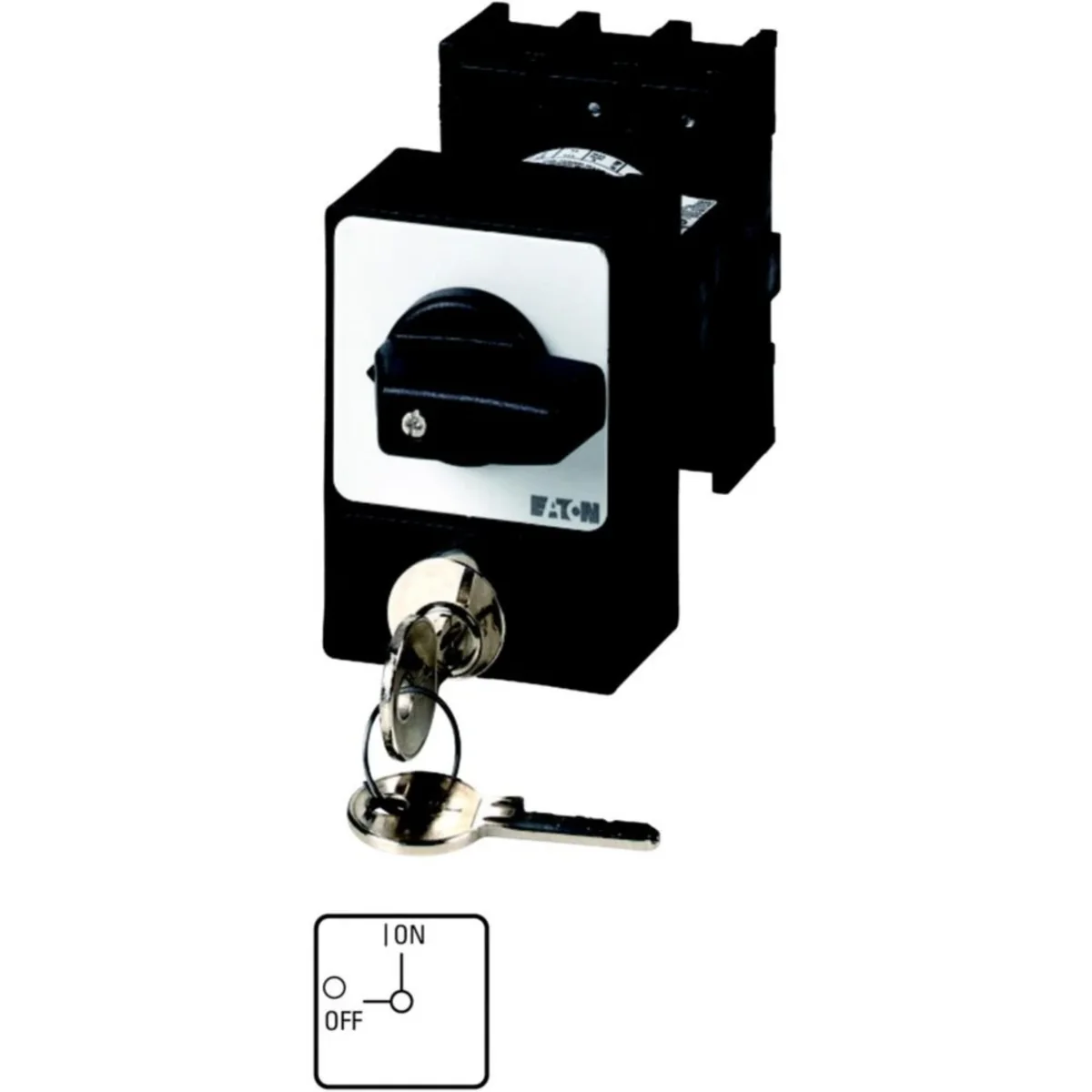

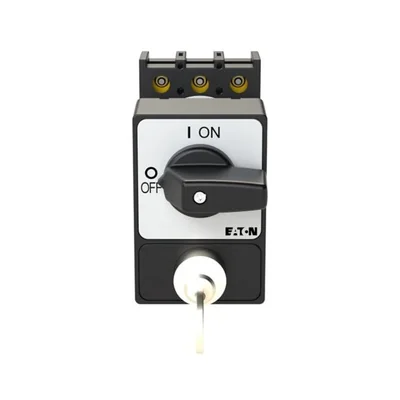

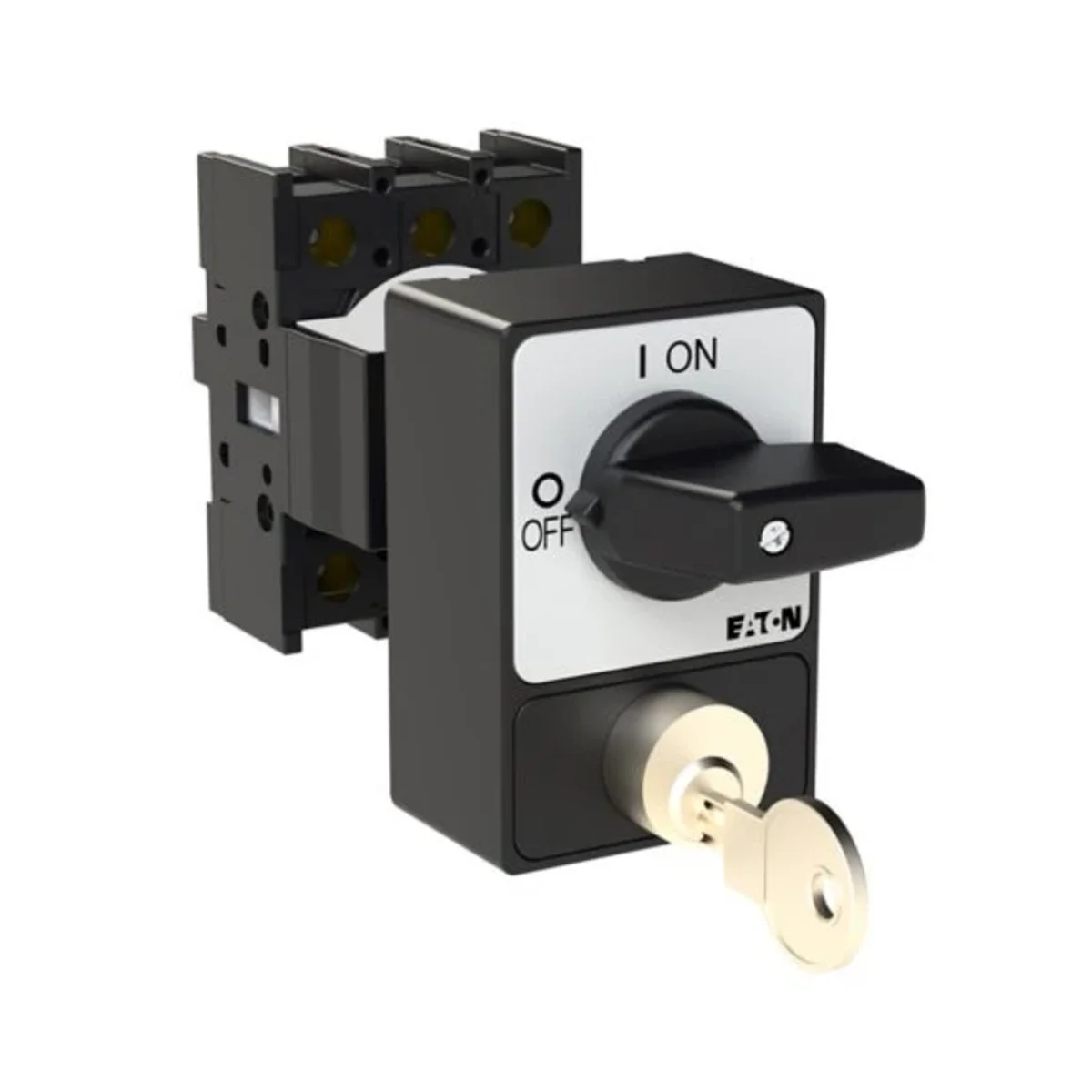

On/Off switch In=25A P=13kW, P1-25/E/SVA(S) 050966
Índice local:
ALI039MOEL
Número de catálogo:
050966
Código EAN:
4015080509660
Precio:
667,55 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Panic switches With SVA cylinder lock. With 2 keys With black knob and face plate If the key is removed in position 1, the switch can still be switched off, but cannot be switched on again without the key.
Datos técnicos
-
Power [W]13
-
Rated current [A]25
Otros datos técnicos
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu25 A
-
Rated permanent current at AC-21, 400 V25 A
-
Rated short-time withstand current lcw0.64 kA
-
Switching power at 400 V13 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V25 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-23, 400 V13 kW
-
Conditioned rated short-circuit current Iq80 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP65
Detalles del fabricante
-
FabricanteEaton Electric Sp. z o.o.
-
Dirección80-299 Gdańsk Galaktyczna 30 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Skrzynia |
| Cantidad | 1 uds. |
| Peso (kg) | 0,317 |
| Volumen (m3) | 0,001 |
| Ancho (m) | 0,050 |
| Longitud (m) | 0,139 |
| Profundidad (m) | 0,075 |
