NZMH3-4-AE630/400-T 4-pole 630A power circuit breaker with earth fault trip 110909

Name: NZMH3-4-AE630/400-T 4-pole 630A power circuit breaker with earth fault trip
Brand: EATON
SKU: ALM118MOEL
Price: 15821.77 PLN
Availability: BackOrder

Índice local:

ALM118MOEL

Número de catálogo:

110909

Código EAN:

4015081104383

NZMH3-4-AE630/400-T 4-pole 630A power circuit breaker with earth fault trip

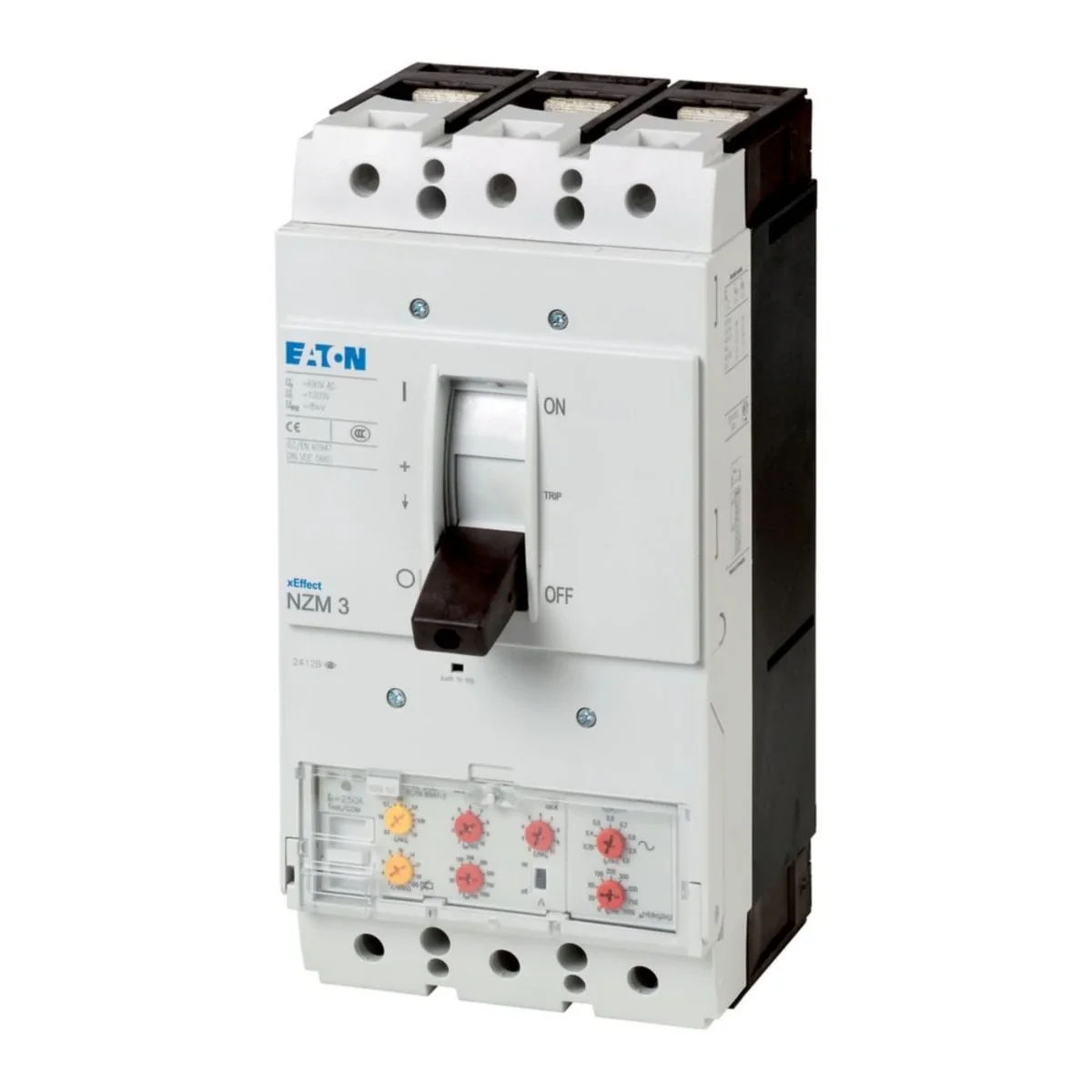

Haga clic en la foto para ampliar

Fabricante: EATON

Precio:

15 821,77 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Otros datos técnicos

Rated permanent current Iu

630 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

Yes
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

315 ... 630 A
Adjustment range undelayed short-circuit release

1260 ... 5040 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton
Cantidad	1 uds.	1 uds.
Peso (kg)	8,425	8,425
Volumen (m3)	0,008	0,008
Ancho (m)	0,187	0,185
Longitud (m)	0,168	0,166
Profundidad (m)	0,277	0,275
