NH1, NH2, 200A, QSA200N-2/3 insert fuse switch 1318547
local index:
ALB014MOEL
Catalog No:
1318547
EAN code:
8711426131613
Manufacturer:
EATON
Rated current [A]: 200
Price:
1039,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

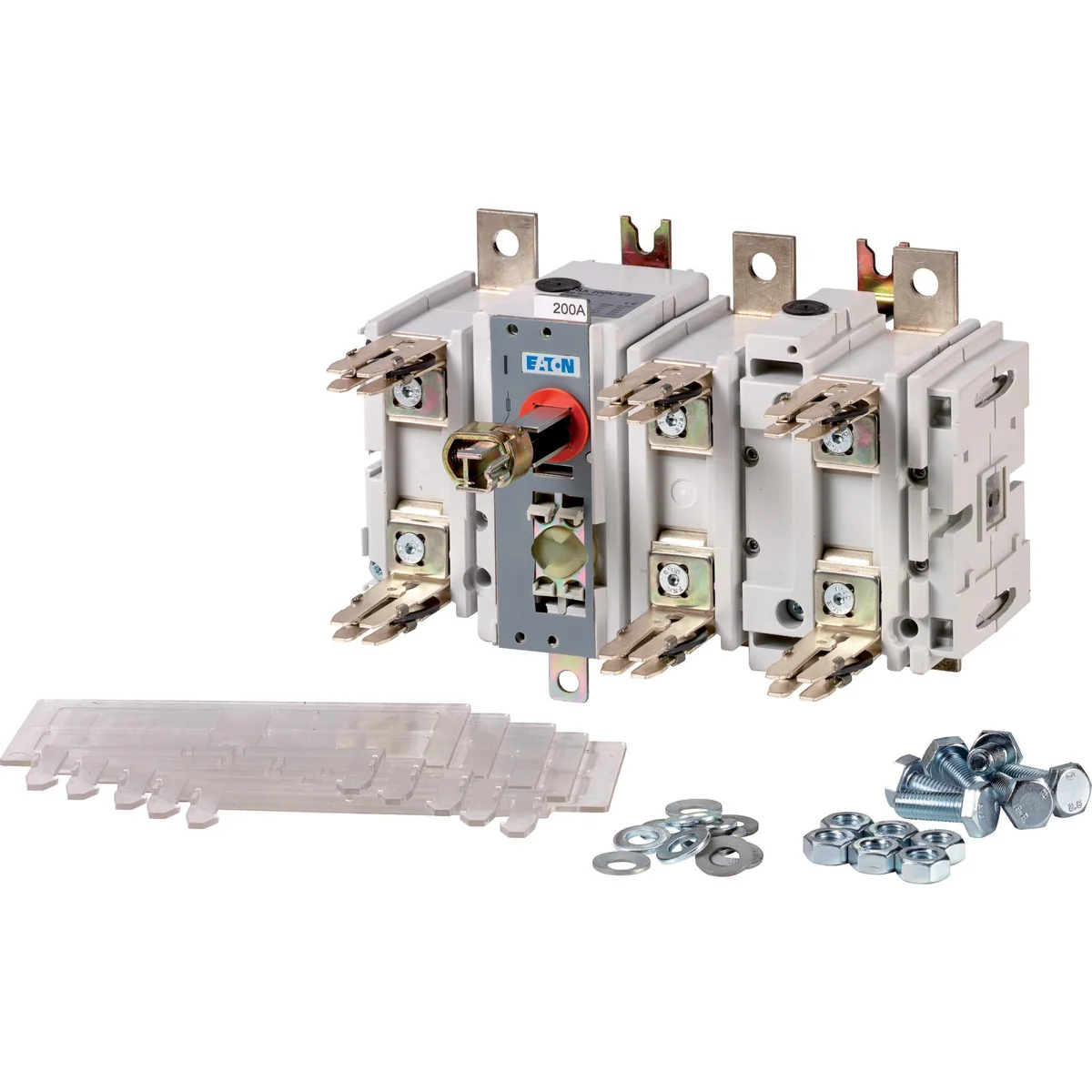

NH1, NH2, 200A, QSA200N-2/3 insert fuse switch
Technical data
-
Rated current [A]200
Other technical data
-
Version as main switchYes
-
Max. rated operation voltage Ue AC690 V
-
Rated operation power at AC-23, 400 V110 kW
-
Rated short-time withstand current lcw0 kA
-
Number of poles3
-
Type of electrical connection of main circuitBolt connection
-
Equipped with connectorsYes
-
Suitable for front mountingNo
-
Type of control elementWithout actuator
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu200 A
-
Conditioned rated short-circuit current Iq50 kA
-
Suitable for fusesNH1, NH2
-
With error protectionNo
-
Cable entryTop/bottom
-
Suitable for floor mountingYes
-
Suitable for busbar mountingNo
-
Position control elementFront side
-
Motor drive integratedNo
-
Degree of protection (IP), front sideIP00
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 4,050 | 4,200 |
| Volume (m3) | 0,009 | 0,009 |
| Width (m) | 0,250 | 0,250 |
| Length (m) | 0,170 | 0,170 |
| Depth (m) | 0,210 | 0,210 |
