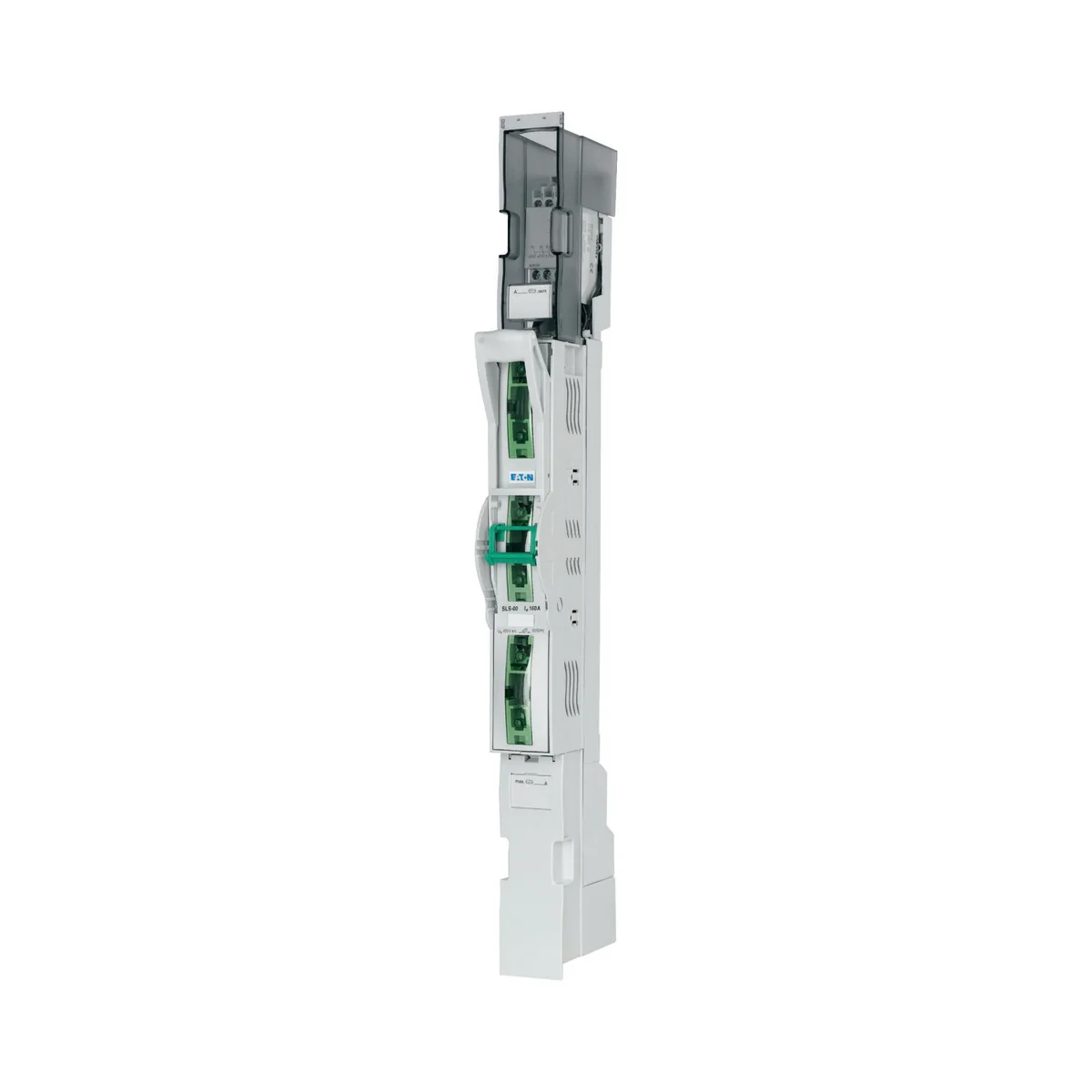

NH connection arrester, 160A, 500V/160A, 690V/160A, size 00 106216

local index:
ALB026MOEL
Catalog No:
106216
EAN code:
4015081059867
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 160
The distance between the rails: 60mm
Price:
1002,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Connection arrester, 160A rated current, 500V/160A max fuse link, 690V/160A max fuse link, size 00, with safety monitoring

Technical data

  • Number of poles
    3
  • The distance between the rails
    60mm
  • Rated current [A]
    160

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    160 A
  • Distance between rail centre, 50 mm
    No
  • Distance between rail centre, 100 mm
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Rail connection
  • Construction size fuse insert
    NH00
  • Double interrupting
    No
  • Distance between rail centre, 40 mm
    No
  • Distance between rail centre, 60 mm
    Yes
  • Distance between rail centre, 185 mm
    No
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of poles
    3
  • Release indication
    Mechanical top-plate indicator

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 112 pcs.
Weight (kg) 1,250 -
Volume (m3) 0,004 -
Width (m) 0,049 -
Length (m) 0,610 -
Depth (m) 0,136 -
