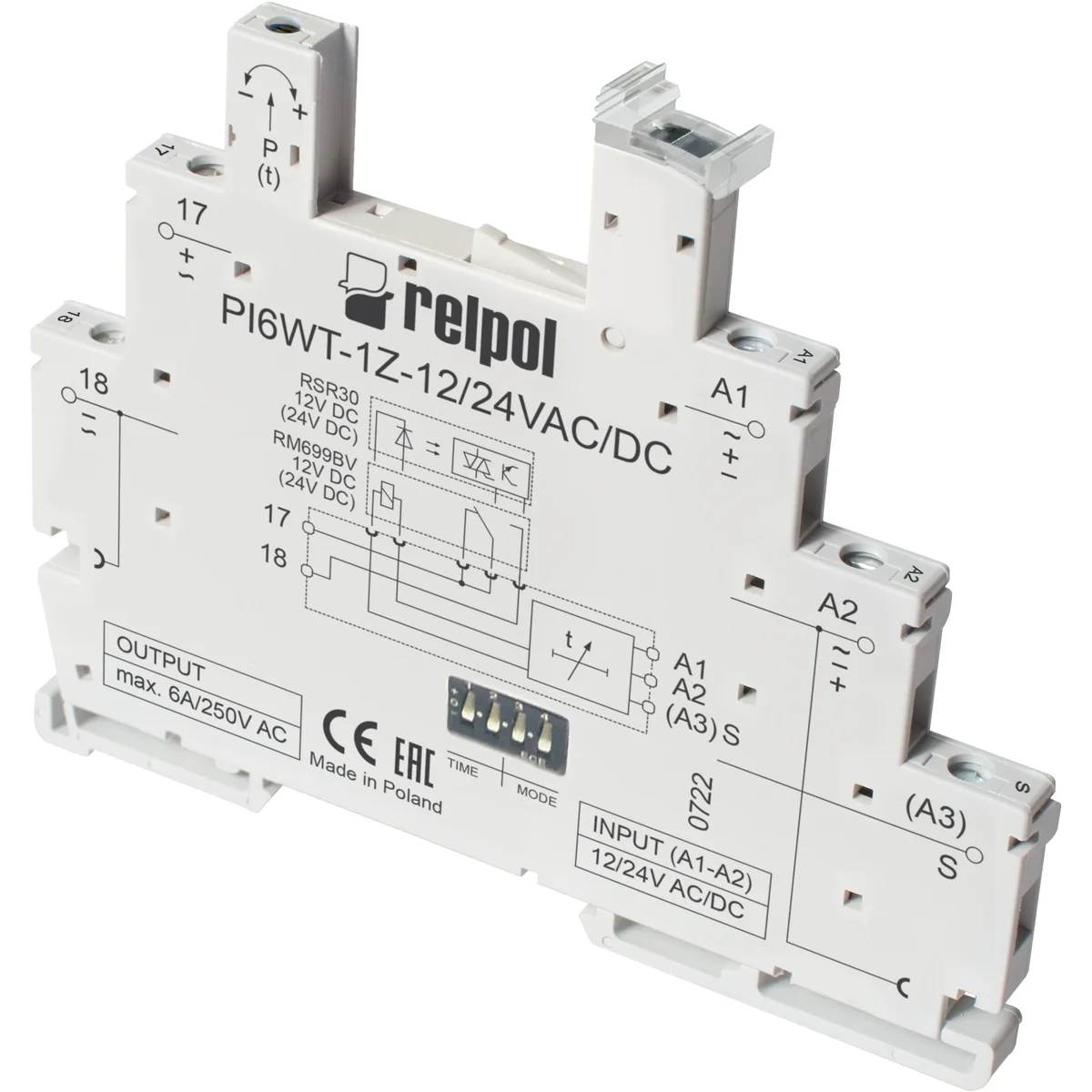

Narrow-profile, multifunctional time relay: 1 NO - one make contact PIR6WT-1Z-24VAC/DC-R 857666

local index:
APC030RELP
Catalog No:
857666
EAN code:
5900005050756
Manufacturer: RELPOL
Level of security: IP20
Width [mm]: 6.2
Price:
40,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Narrow-profile, multifunctional time relay: 1 NO - one NO contact. Width 6.2mm. Functions: E, Wu, Bi, Bp, R, Ws, Wa, Esa, B, OFF - permanent shutdown. screw terminals. Output (interchangeable - relay RM699BV, "R" code): contacts 1NO - terminals: (+)17 - (-)18; AC1 - 6A / 230V; DC1 - 6 A / 24 V. Input - terminals: A1 - A2 - any polarity; external control contact S - terminals: S(A3) - A1, supply voltage Un - 24 V AC/DC. Dimensions: 98.5 x 6.2 x 85.5mm. Mounting on a 35 mm rail. Compact housing. IP 20.

Technical data

  • Level of security
    IP20
  • Width [mm]
    6.2

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC/DC
  • Number of outputs, delayed, normally open contact
    1
  • Outputs, reversible delayed/undelayed
    No
  • Width
    6.2 mm
  • Depth
    98.5 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Time range
    0 ... 0 s
  • Number of outputs, delayed, change-over contact
    0
  • With semiconductor output
    No
  • Height
    85.5 mm
