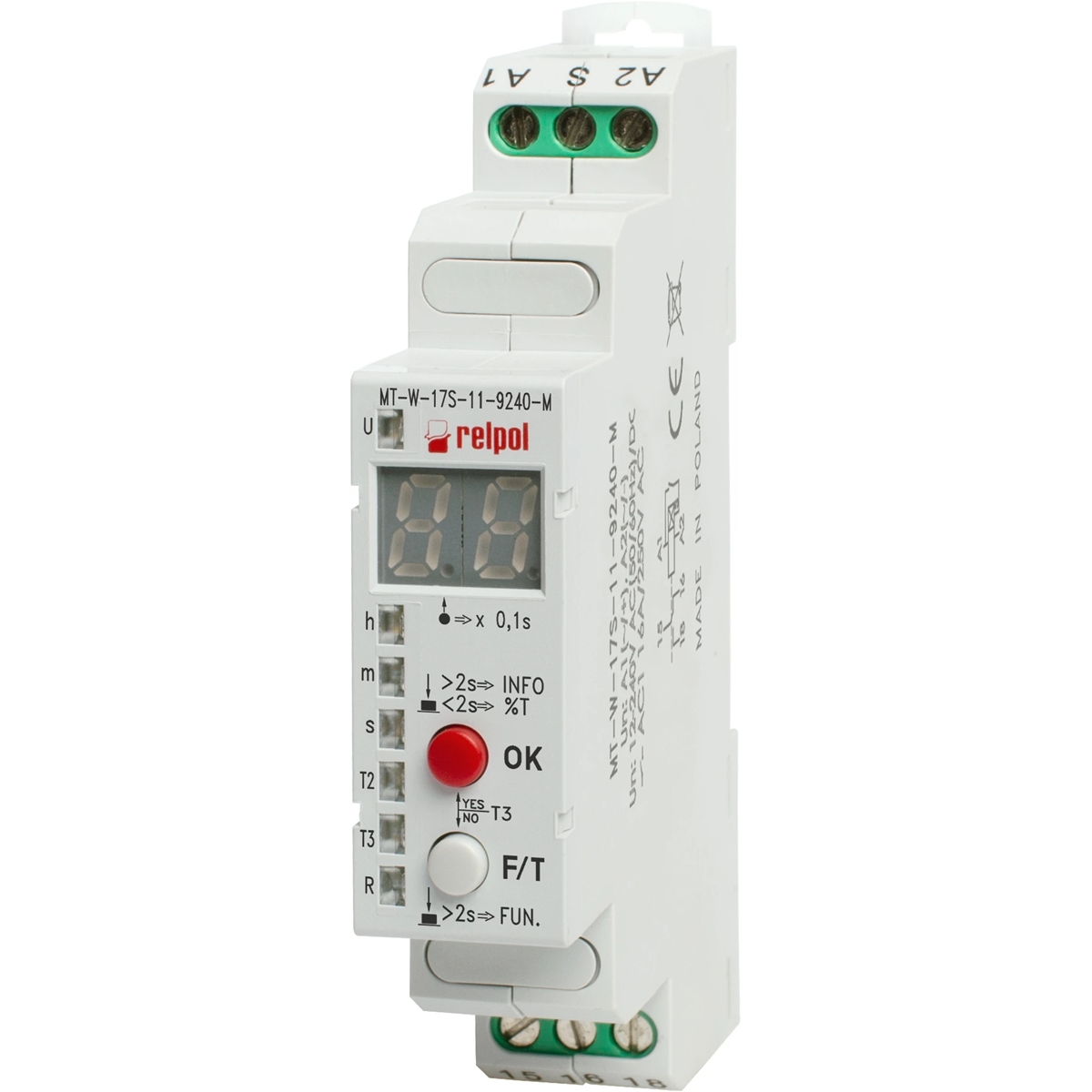

Multifunctional time relay 1P 10A 0, 1sec-100h 12-240V AC/DC MT-W-17S-11-9240-M 860470

Name: Multifunctional time relay 1P 10A 0, 1sec-100h 12-240V AC/DC MT-W-17S-11-9240-M
Brand: RELPOL
SKU: APC006RELP
Price: 269.70 PLN
Availability: BackOrder

local index:

APC006RELP

Catalog No:

860470

EAN code:

5900005197918

Multifunctional time relay 1P 10A 0, 1sec-100h 12-240V AC/DC MT-W-17S-11-9240-M

Manufacturer: RELPOL

Depth [mm]: 63.5

Height [mm]: 90

Rated control voltage [V]: Up to 240

See full description

Price:

269,70 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Multifunctional time relay 1P 10A 0, 1sec-100h 12-240V AC/DC MT-W-17S-11-9240-M
Time setting range: 14400s.

Technical data

Depth [mm]

63.5
Rated control voltage [V]

Up to 240

Height [mm]

90

Other technical data

Type of electric connection

Screw connection
Suitable for front mounting

No
Function delay-on energization

Yes
Function floating contact on energization

Yes
Function pulse shaping

Yes
Function flashing, starting with pulse, fixed time

Yes
Clock function, starting with pulse, variable

Yes
Remote operation possible

No
Rated control supply voltage AC 50 Hz

12 ... 240 V
Rated control supply voltage DC

12 ... 240 V
Number of outputs, undelayed, normally closed contact

0
Number of outputs, undelayed, change-over contact

1
Number of outputs, delayed, normally open contact

0
Outputs, reversible delayed/undelayed

No
Nominal current

10 A
Height

90 mm

Suitable for DIN rail (top hat rail) mounting

Yes
Pluggable on auxiliary contact block

No
Function delay on de-energization

Yes
Function floating contact on de-energization

Yes
Function flashing, starting with pause, fixed time

Yes
Clock function, starting with pause, variable

Yes
Time range

0.1 ... 359940 s
Suitable as remote control

No
Rated control supply voltage AC 60 Hz

12 ... 240 V
Voltage type for actuating

AC/DC
Number of outputs, undelayed, normally open contact

0
Number of outputs, delayed, normally closed contact

0
Number of outputs, delayed, change-over contact

1
With semiconductor output

No
Width

17.5 mm
Depth

65.5 mm
