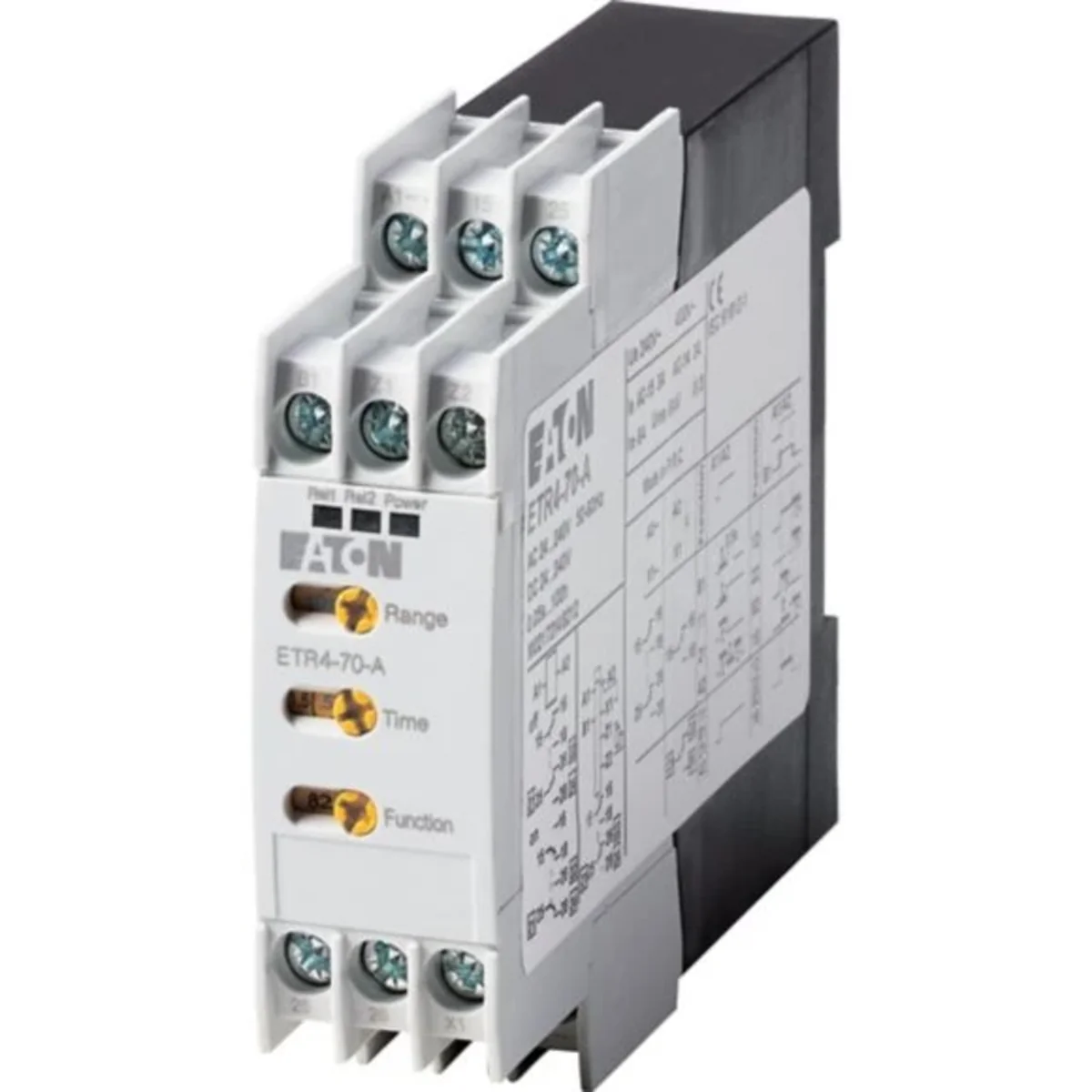

Multifunctional relay, ETR4-70-A 031888
local index:
APC007MOEL
Catalog No:
031888
EAN code:
4015080318880
Manufacturer:
EATON
Conventional thermal current [A]: 6
Rated current [A]: 3
Time range [s]: 0.05-360000
Price:
198,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

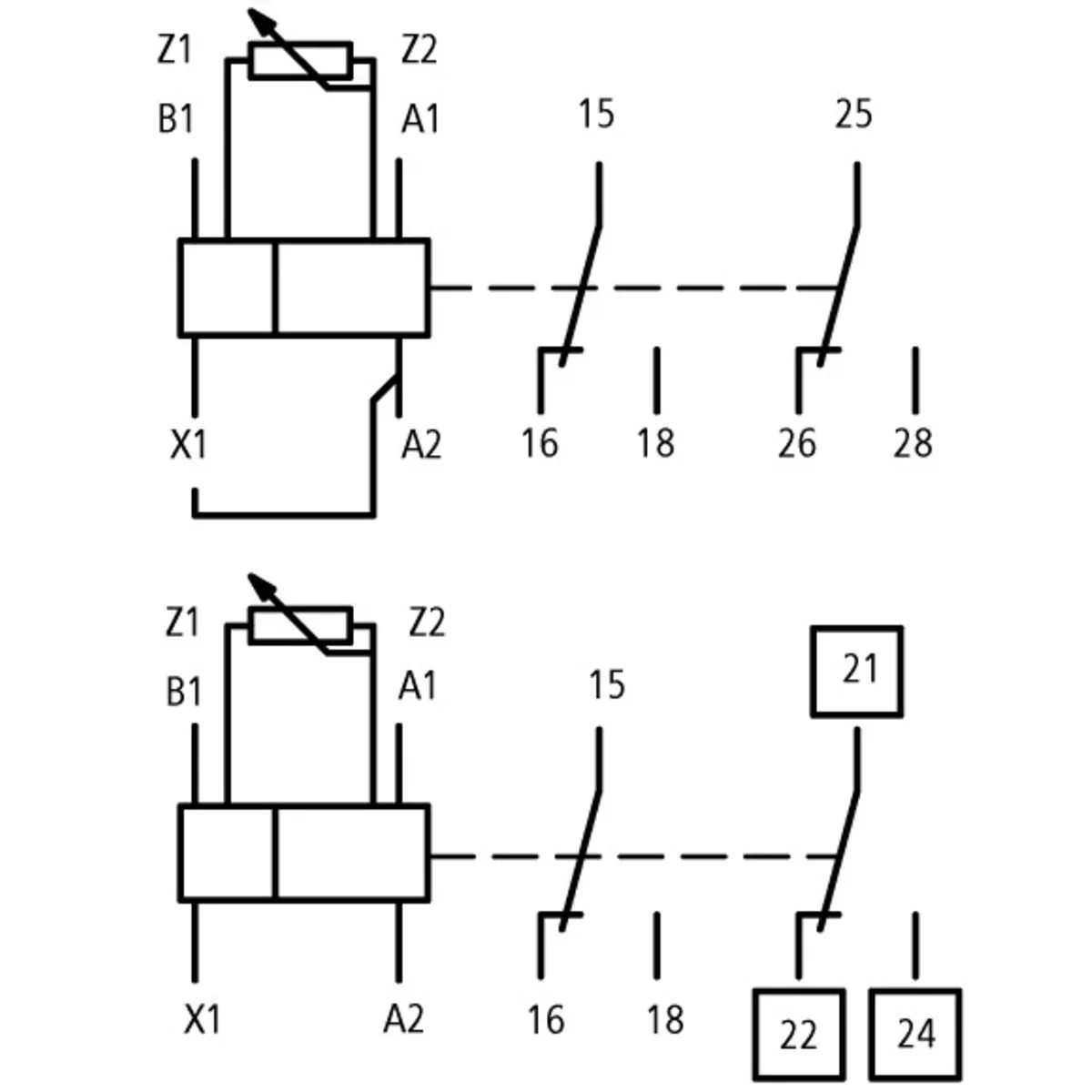

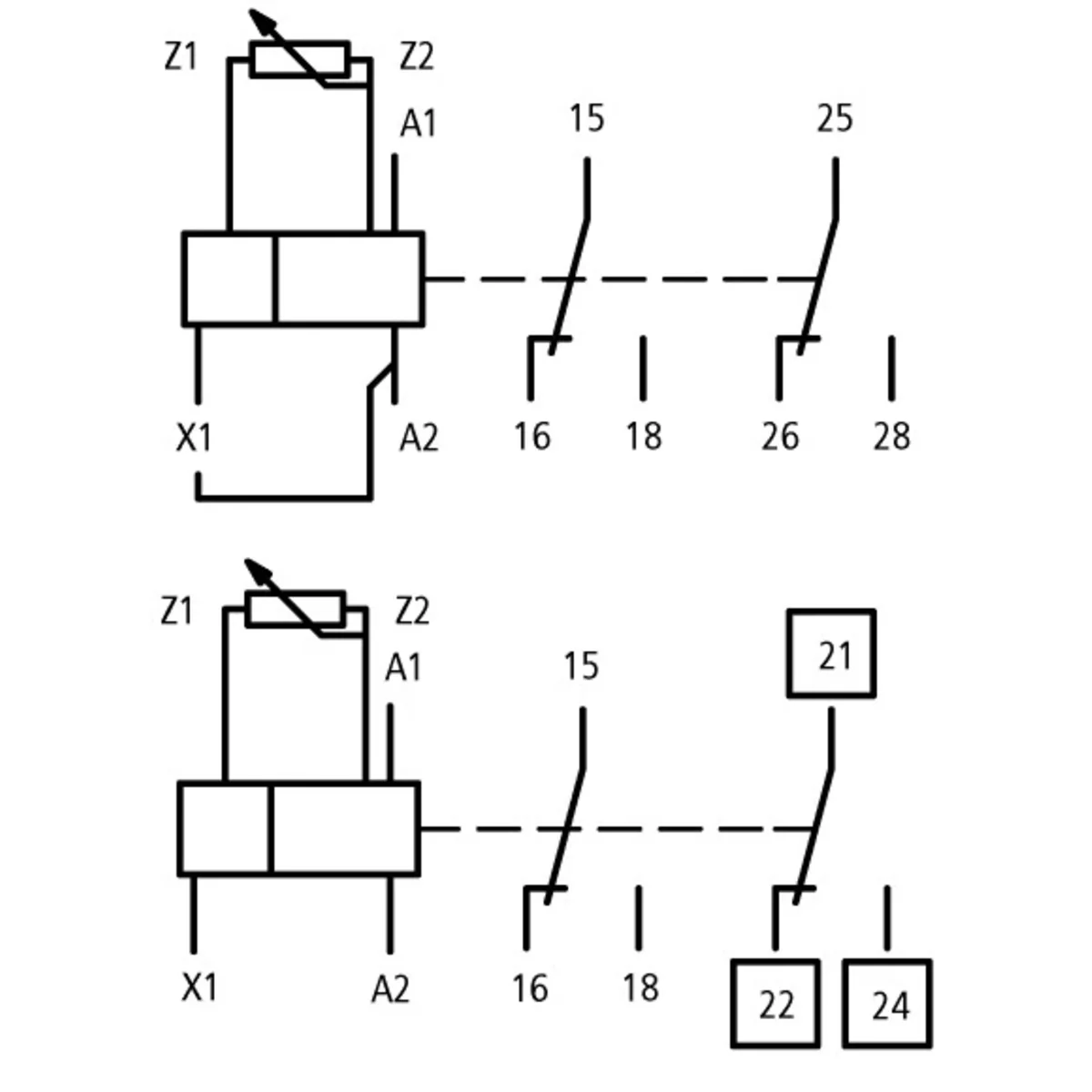

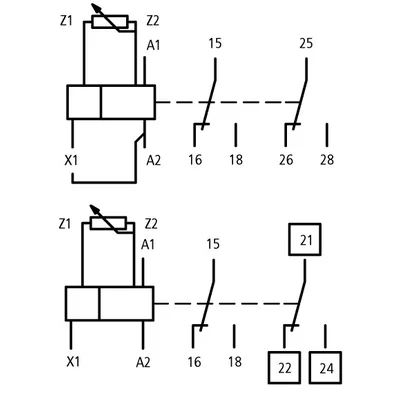

ETR4 electronic timing relays, 22.5 mm wide - Multifunctional with attachable potentiometer and 2 contacts that can be set as 2 timed contacts or 1 instantaneous contact and 1 timed contact.
Technical data
-
Conventional thermal current [A]6
-
Time range [s]0.05-360000
-
Rated current [A]3
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationYes
-
Function pulse shapingYes
-
Function flashing, starting with pulse, fixed timeYes
-
Clock function, starting with pulse, variableYes
-
Remote operation possibleYes
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Time range0.05 ... 360000 s
-
Number of outputs, undelayed, normally open contact0
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact2
-
With semiconductor outputNo
-
Suitable for front mountingNo
-
Height83 mm
-
Function delay-on energizationYes
-
Function floating contact on energizationYes
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeYes
-
Clock function, starting with pause, variableYes
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 240 V
-
Nominal current3 A
-
Number of outputs, undelayed, normally closed contact0
-
Number of outputs, undelayed, change-over contact2
-
Number of outputs, delayed, normally open contact0
-
Outputs, reversible delayed/undelayedYes
-
Suitable for DIN rail (top hat rail) mountingYes
-
Width23 mm
-
Depth103 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,141 | 0,159 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,023 | 0,049 |
| Length (m) | 0,103 | 0,139 |
| Depth (m) | 0,083 | 0,073 |
