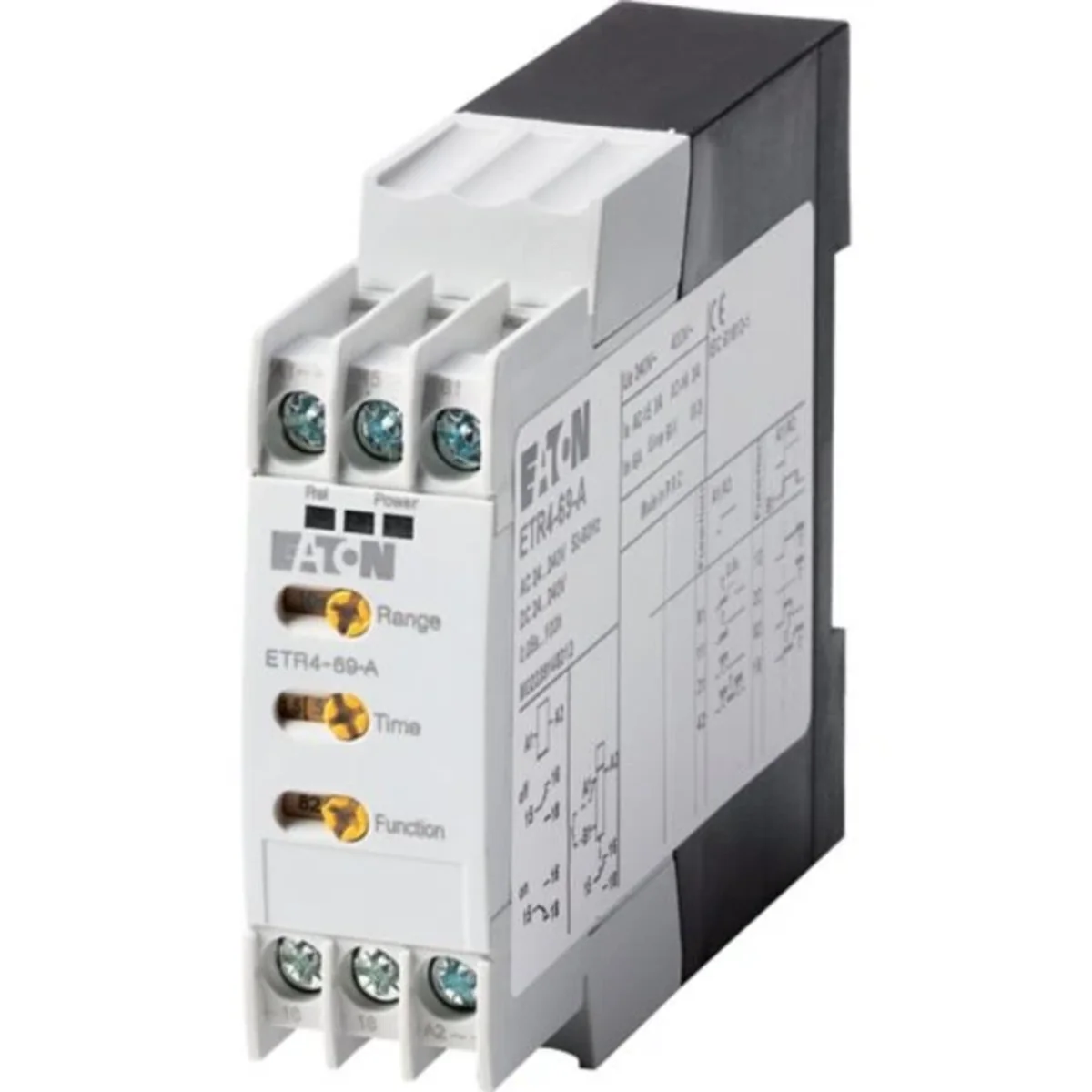

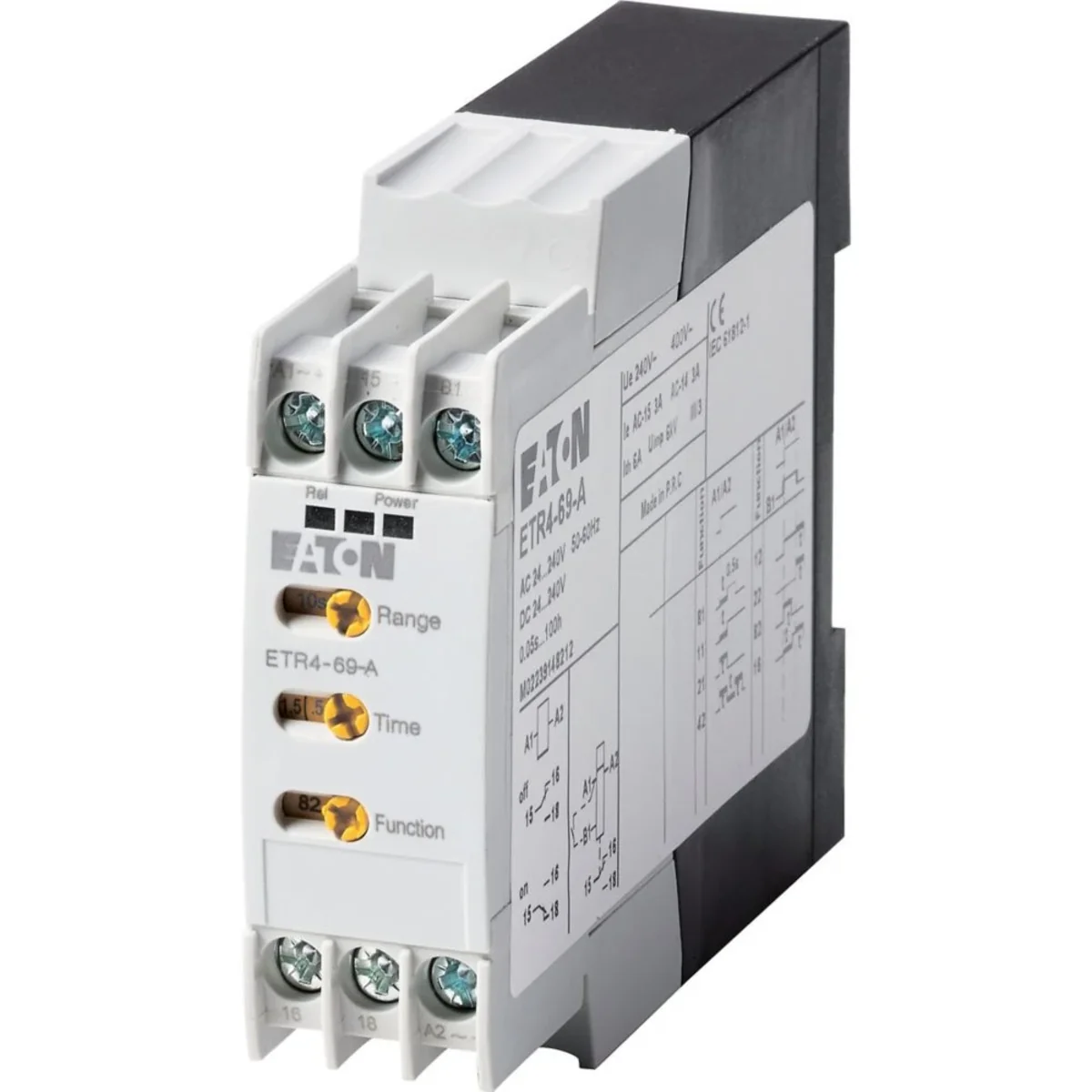

Multifunctional relay, ETR4-69-A 031891

local index:
APC005MOEL
Catalog No:
031891
EAN code:
4015080318910
Manufacturer: EATON
Conventional thermal current [A]: 6
Rated current [A]: 3
Time range [s]: 0.05-360000
Price:
152,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic timers ETR4, width 22.5 mm - Star-delta switch.

Technical data

  • Conventional thermal current [A]
    6
  • Time range [s]
    0.05-360000
  • Rated current [A]
    3

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    Yes
  • Function flashing, starting with pulse, fixed time
    Yes
  • Clock function, starting with pulse, variable
    Yes
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Time range
    0.05 ... 360000 s
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, change-over contact
    0
  • With semiconductor output
    No
  • Suitable for front mounting
    No
  • Height
    83 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    Yes
  • Clock function, starting with pause, variable
    Yes
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • Nominal current
    3 A
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, change-over contact
    0
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    Yes
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Width
    23 mm
  • Depth
    103 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,128
Volume (m3) 0,000
Width (m) 0,049
Length (m) 0,139
Depth (m) 0,073
