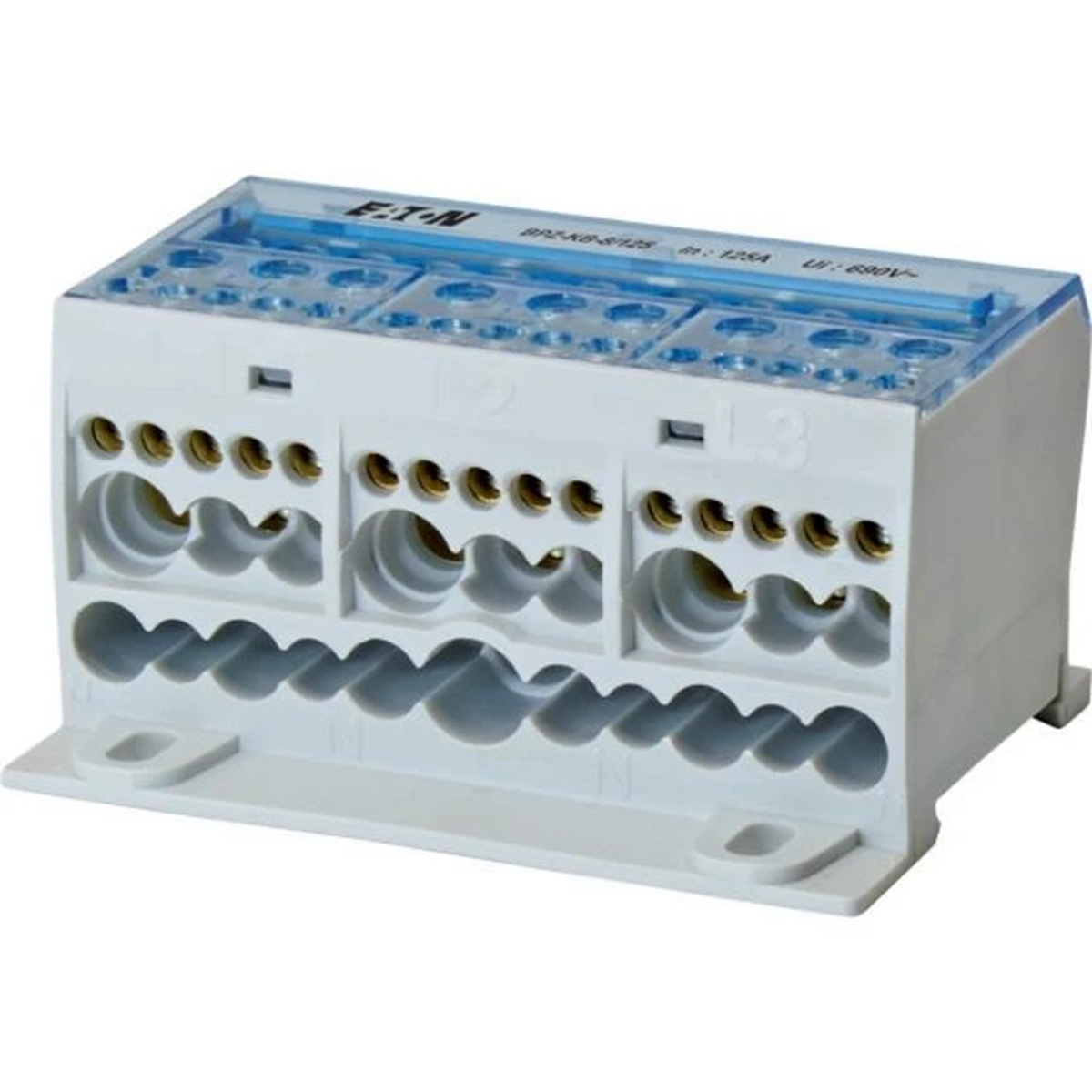

Modular block of distribution strips, BPZ-KB-8/125 289968

local index:
APC061MOEL
Catalog No:
289968
EAN code:
4015082899684
Manufacturer: EATON
Number of outputs: 8
Rated current [A]: 125
Price:
38,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular distribution block, 1-pole BPZ-KB
• Mounting on TS35 mm rail

Technical data

  • Number of outputs
    8
  • Rated current [A]
    125

Other technical data

  • Height
    74.5 mm
  • Depth
    49 mm
  • Number of poles
    4
  • Conductor cross section solid (solid, stranded)
    1.5 ... 35 mm²
  • With PE-rail
    No
  • Width
    98 mm
  • Max. rated current
    125 A
  • Conductor cross section flexible (fine-strand) with cable end sleeve
    1.5 ... 35 mm²
  • Number of clamp positions per pole
    18
  • With N-rail
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 50 pcs.
Weight (kg) 0,325 -
Volume (m3) 0,000 -
Width (m) 0,098 -
Length (m) 0,049 -
Depth (m) 0,075 -
