Miniature cam switch, 10A, 3kW, TM-2-8311/EZ 045487

local index:
ALK005MOEL
Catalog No:
045487
EAN code:
4015080454878
Manufacturer: EATON
Power [kW]: 3
Main circuits: 1
Rated current [A]: 10
Price:
55,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

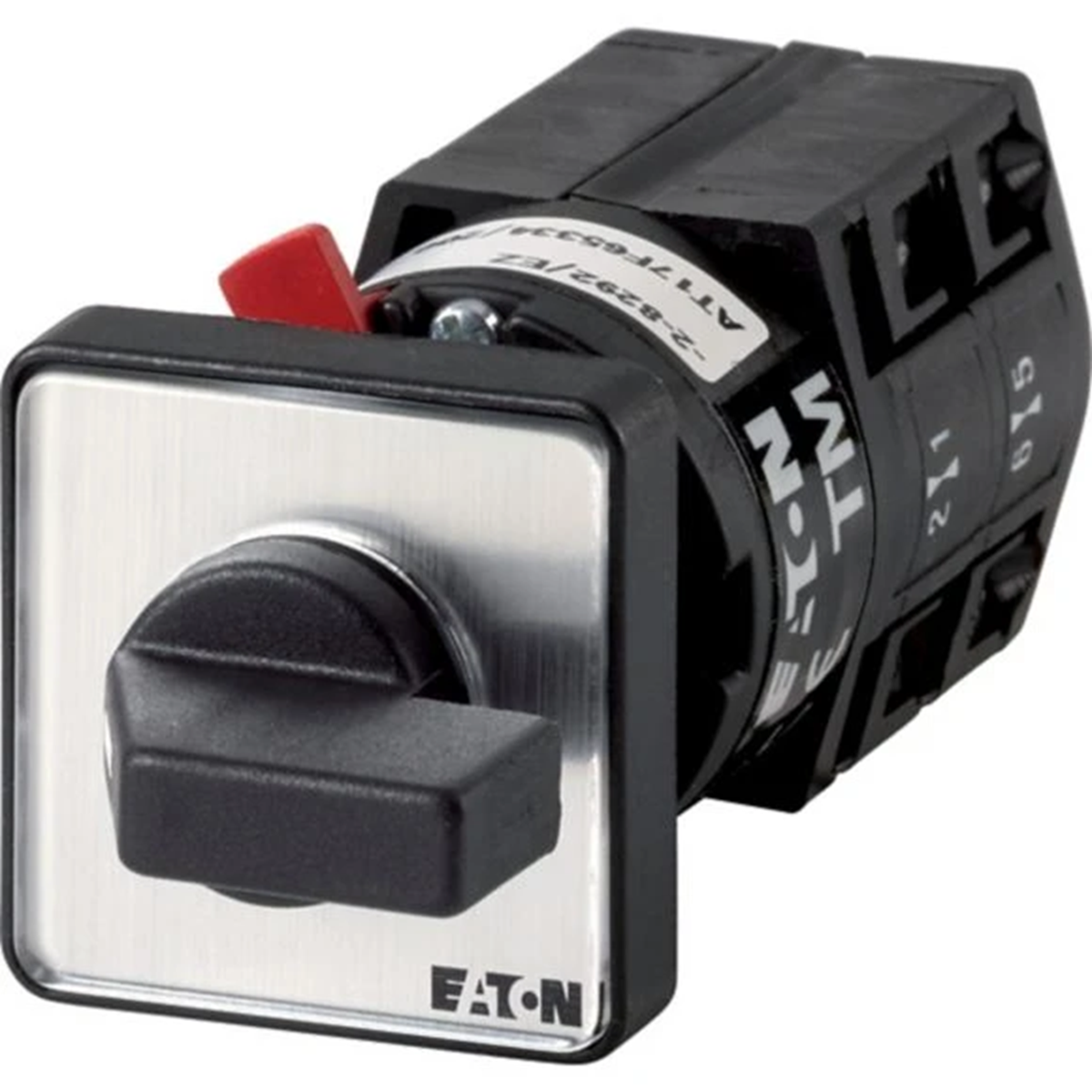

Miniature cam switch I=10A P=3kW. With position 0

Technical data

  • Power [kW]
    3
  • Rated current [A]
    10
  • Main circuits
    1

Other technical data

  • Type of switch
    Level switch
  • Max. rated operation voltage Ue AC
    500 V
  • Number of switch positions
    4
  • With retraction in 0-position
    No
  • Width in number of modular spacings
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Degree of protection (IP), front side
    IP65
  • Number of poles
    3
  • Rated permanent current Iu
    10 A
  • With zero (off) position
    Yes
  • Device construction
    Built-in device
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Front shield size
    30x30 mm
  • Degree of protection (NEMA), front side
    12

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,062
Volume (m3) 0,000
Width (m) 0,040
Length (m) 0,104
Depth (m) 0,040
