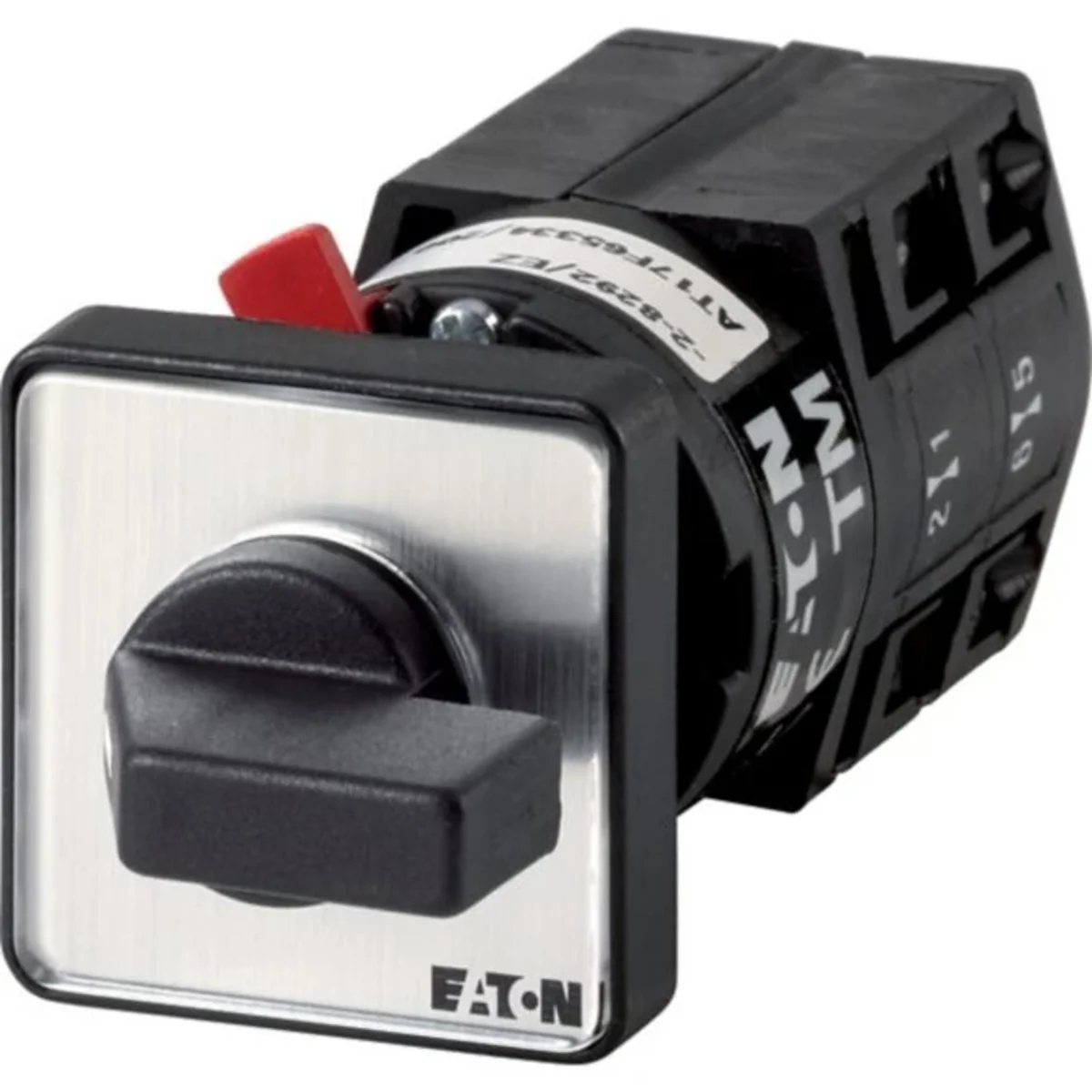

Miniature cam switch, 10A, 3kW, TM-2-8211/EZ 015166

local index:
ALK038MOEL
Catalog No:
015166
EAN code:
4015080151661
Manufacturer: EATON
Power [kW]: 3
Main circuits: 2
Rated current [A]: 10
Price:
59,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature cam switch I=10A P=3kW

Technical data

  • Power [kW]
    3
  • Rated current [A]
    10
  • Main circuits
    2

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    10 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Degree of protection (NEMA), front side
    12
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Short thumb-grip
  • Number of poles
    2
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    0 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,062
Volume (m3) 0,000
Width (m) 0,040
Length (m) 0,104
Depth (m) 0,040
