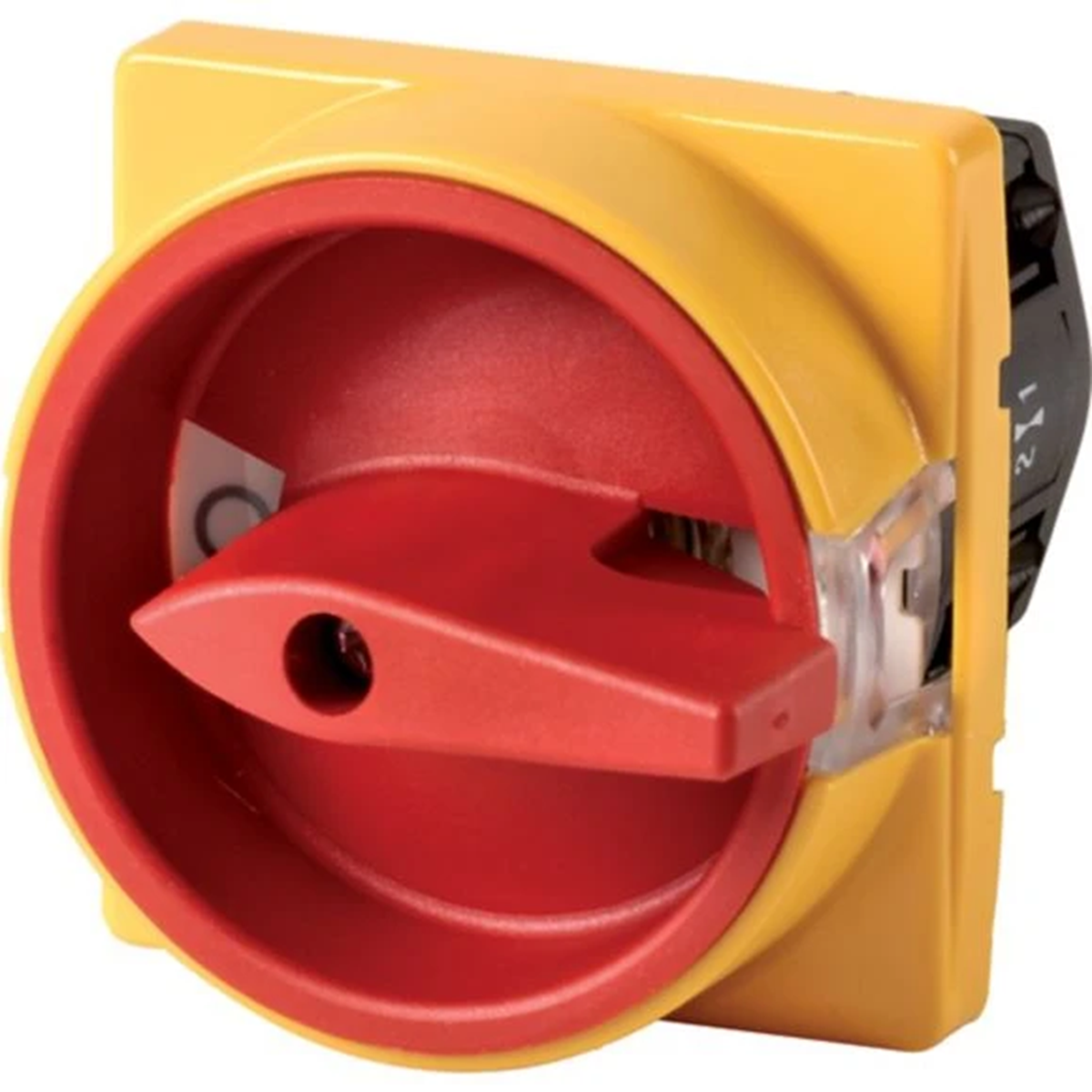

Miniature cam switch, 10A, 3kW, TM-1-8291/E/SVB 045478
local index:
ALK216MOEL
Catalog No:
045478
EAN code:
4015080454786
Price:
50,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Miniature cam switch I=10A P=3kW. With padlock closure. Lockable in position 0 to 250 V AC per contact
Technical data
-
Power [kW]3
-
Rated current [A]10
-
Main circuits2
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC500 V
-
Rated permanent current Iu10 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V3 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage500 ... 500 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw0 kA
-
Switching power at 400 V0 kW
-
Number of poles2
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,074 |
| Volume (m3) | 0,000 |
| Width (m) | 0,040 |
| Length (m) | 0,080 |
| Depth (m) | 0,040 |
