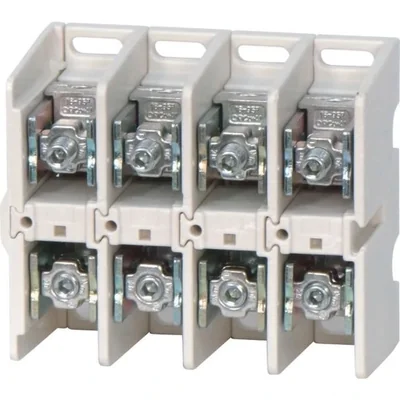

Mains connection terminal 160A, K95/4 027390

local index:
ALA229MOEL
Catalog No:
027390
EAN code:
4015080273905
Manufacturer: EATON
Number of poles: 4
Rated current [A]: 160
Price:
155,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mains connection terminal 160A,4-pole

Technical data

  • Number of poles
    4
  • Rated current [A]
    160

Other technical data

  • Number of poles
    4
  • Connection type
    Screwing
  • Number of inputs
    1
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for extra fine-strand conductors
    No
  • Conductor cross section, input
    16 ... 95 mm²
  • Contact safe
    Yes
  • Width
    130 mm
  • Nominal current
    160 A
  • Mounting method
    Screw
  • Number of outputs
    1
  • Suitable for stranded conductors
    Yes
  • Suitable for fine strand conductors without cable end sleeve
    No
  • Suitable for extra fine-strand conductors without cable end sleeve
    No
  • Conductor cross section, input AWG
    6 ... 6 mm²
  • Height
    115 mm
  • Depth
    100 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,947
Volume (m3) 0,002
Width (m) 0,132
Length (m) 0,170
Depth (m) 0,099
